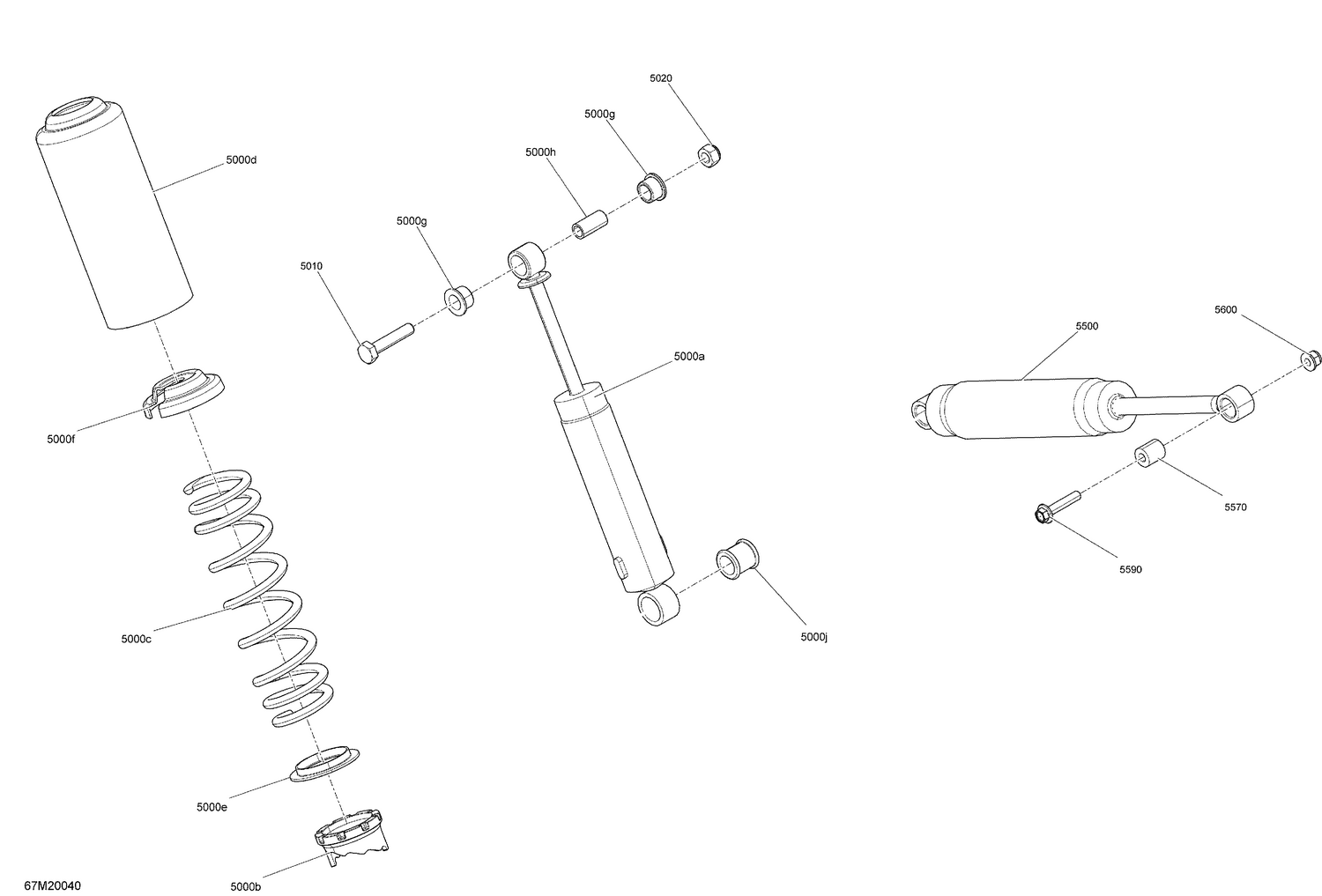

08- Suspension, Rear - Shocks - SPORT
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 5000a | 503192266 | Center Shock |
| 5000b | 505073625 | Adjustment Cam |
| 5000c | 503191880 | Black, Spring 242MM |
| 5000d | 503193663 | Protector |
| 5000e | 503191872 | Spring Guide |
| 5000f | 706200881 | Spring Stopper |
| 5000g | 503189117 | Urethane Bushing |
| 5000h | 503189282 | Bushing |
| 5000j | 503189271 | Bushing |
| 5010 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 5020 | 233601466 | Elastic Locking Nut M10 |
| 5500 | 503193187 | Rear Shock Seal HPG |
| 5570 | 414936000 | Bushing |
| 5590 | 207684044 | Hex. Flange Screw M8 X 40 |
