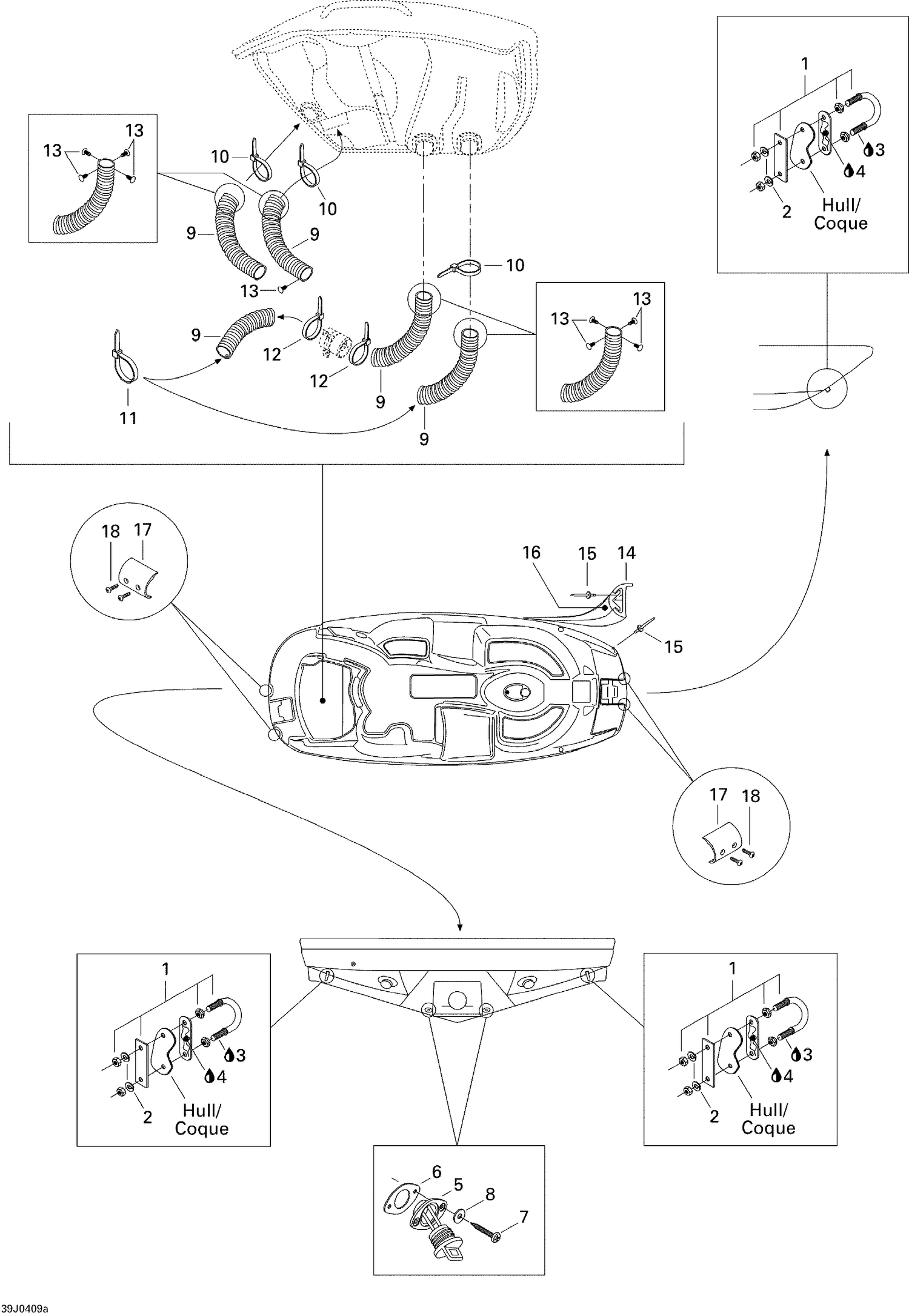

09- Hull 1
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204050336 | BOW EYE KIT 1/2? - Call your local BRP dealership |
| 2 | 204100048 | WASHER-LOCK HELICAL 1/2 - Call your local BRP dealership |
| 3 | 293800005 | Loctite 271, 10 ml |
| 4 | 296000309 | Silicone Sealant 51388, 300 ml |
| 5 | 292000187 | Drain Plug |
| 6 | 293250030 | GASKET - Call your local BRP dealership |
| 7 | 209642560 | PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 8 | 234041600 | Flat Washer 4 mm, Stainless |
| 9 | 219704358 | Was 204050122 Vent Hose 4" |
| 10 | 293750019 | Tie Rap |
| 11 | 414115200 | Tie-Rap 180 mm |
| 12 | 293750008 | Tie Wrap 368 mm |
| 13 | 293730006 | Black, Dart |
| 14 | 204050340 | Black, Bumper |
| 15 | 293150013 | Pop Rivet 3/16" |
| 16 | 204050337 | BUMPER TRIM, BLACK - Call your local BRP dealership |
| 17 | 204050338 | BUMPER COVER, BLACK - Call your local BRP dealership |
