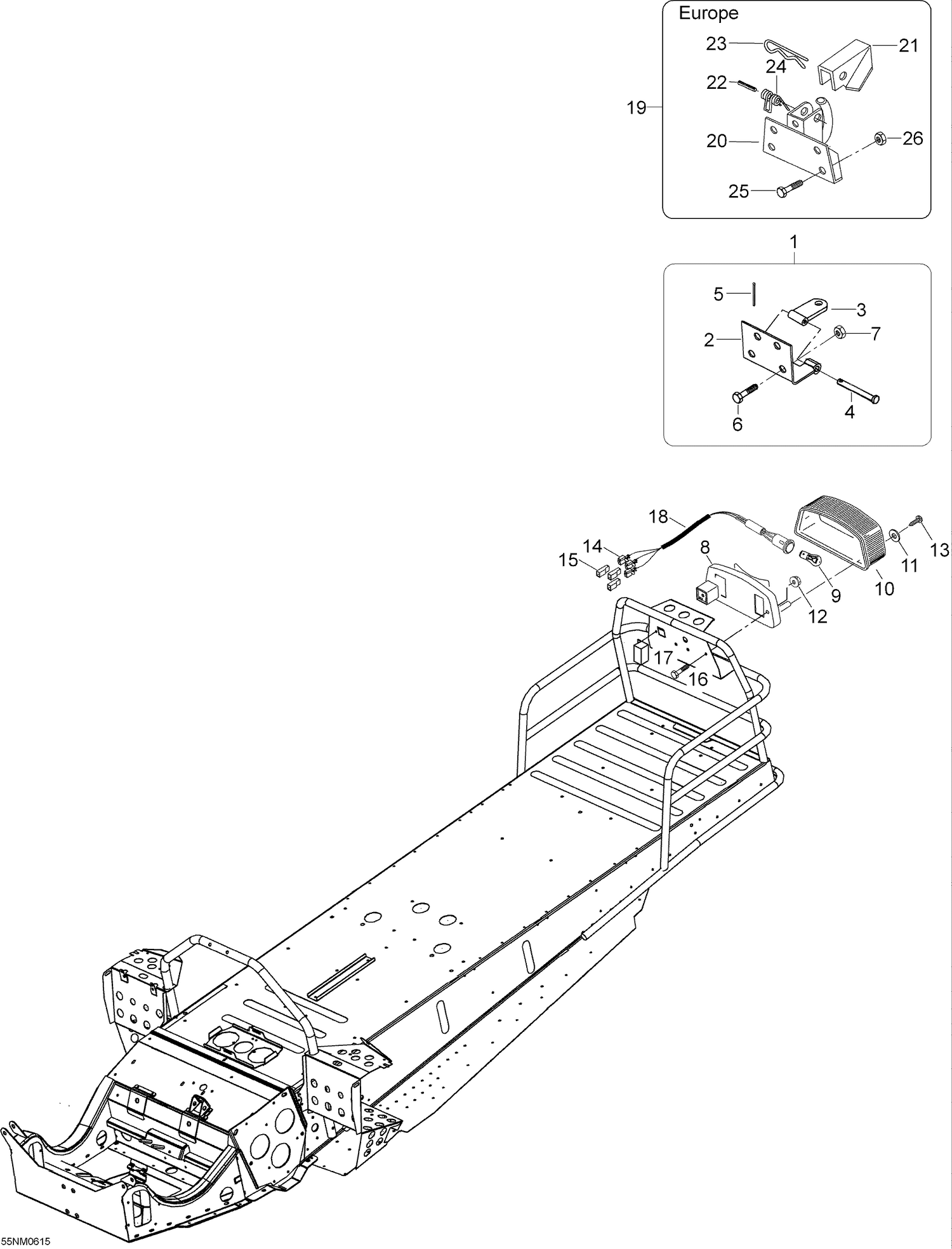

| Ref | Part Number | Description |
|---|
| 2 |
5344151 |
Fitting Plate This part replaces M5344151. |
| 3 |
548745 |
TONGUE WELD - Call your local BRP dealership This part replaces M548745. |
| 4 |
560309200 |
PIN-RETAINER - Call your local BRP dealership |
| 5 |
41031 |
Cotter Pin This part replaces M41031. |
| 6 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336. |
| 7 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 8 |
510004061 |
LIGHT HOUSING - Call your local BRP dealership |
| 9 |
520000758 |
Bulb This part replaces 410504100. |
| 10 |
414513700 |
Lens |
| 11 |
414516400 |
Washer - Call your local BRP dealership |
| 12 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 13 |
209632540 |
Phillips Tapping Screw M3.9 X 25 |
| 14 |
409010600 |
FEMALE TERMINAL - Call your local BRP dealership This part replaces M42178. |
| 15 |
409010400 |
Female Terminal Housing, 1 Circuit This part replaces M42179. |
| 16 |
207063044 |
Hex. Screw M6 X 30 |
| 17 |
M5345713 |
Adaptor |
| 18 |
M39023 |
Housing |
| 20 |
5344156 |
HITCH ASS'Y - Call your local BRP dealership This part replaces 5344208. |
| 21 |
5440767 |
Lock |
| 22 |
41012 |
Pin |
| 23 |
41029 |
Hair pin |
| 24 |
545693 |
SPRING - Call your local BRP dealership |
| 25 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership |
