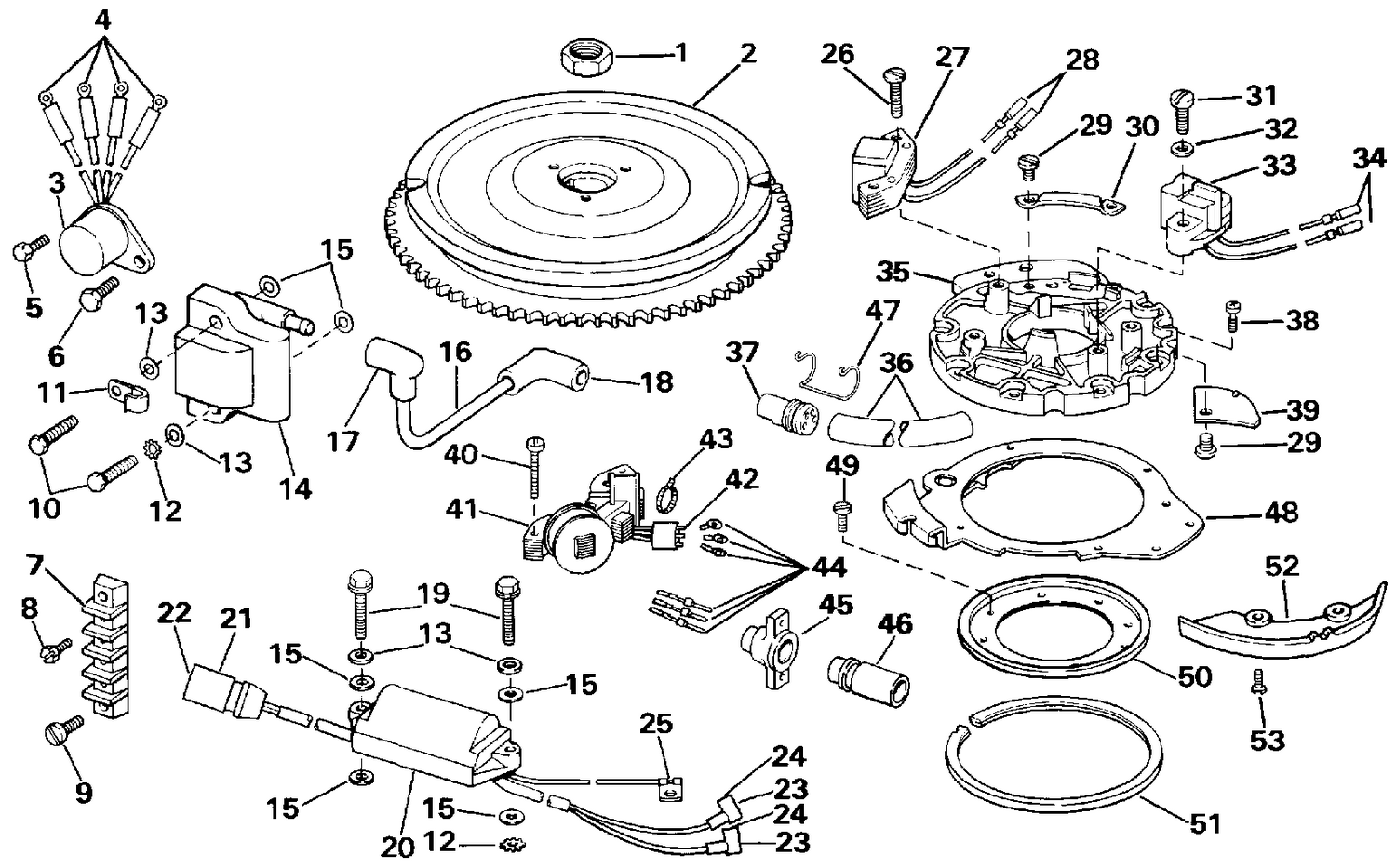

| Ref | Part Number | Description |
|---|
| 3 |
0581778 |
REDRESSEUR |
| 5 |
0314576 |
SCREW |
| 6 |
0312241 |
SCREW, Trim/Tilt relay bracket |
| 7 |
0511949 |
BORNIER |
| 8 |
0329182 |
VIS, borne |
| 9 |
0306644 |
VIS, capteur de papillon |
| 11 |
0310441 |
CLAMP, CPS lead |
| 14 |
0582508 |
COIL ASSY |
| 15 |
0329176 |
FIBER WASHER, Ignition coil |
| 16 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 19 |
0329110 |
VIS, boîtier d'échappement vers bloc cylindres-carter |
| 20 |
0586800 |
POWER PACK ASSEMBLY This part replaces 0583167. |
| 27 |
0581670 |
CHARGE COIL |
| 29 |
0303212 |
VIS, collier & capot |
| 30 |
0511458 |
COLLIER, fils |
| 33 |
0583387 |
SENSOR ASSEMBLY |
| 35 |
0582417 |
PLATE & SLEEVE ASSEMBLY |
| 36 |
0512765 |
BRACKET |
| 38 |
0511460 |
VIS, dispositif de retenue |
| 39 |
0511459 |
CACHE, fils |
| 47 |
0512743 |
DISPOSITIF DE RETENUE |
| 48 |
0396031 |
RETAINER & LINK ASSEMBLY |
| 49 |
0319547 |
SCREW, Clamp & ground lead |
| 50 |
0322102 |
PLATE, Support |
| 51 |
0322435 |
ROULEMENT, plaque d'allumage vers support |
| 52 |
0326876 |
CAM, Throttle control |
| 0583389 |
0583389 |
ARMATURE PLATE ASSY. |
| 0583391 |
0583391 |
ARMATURE PLATE ASSEMBLY |
