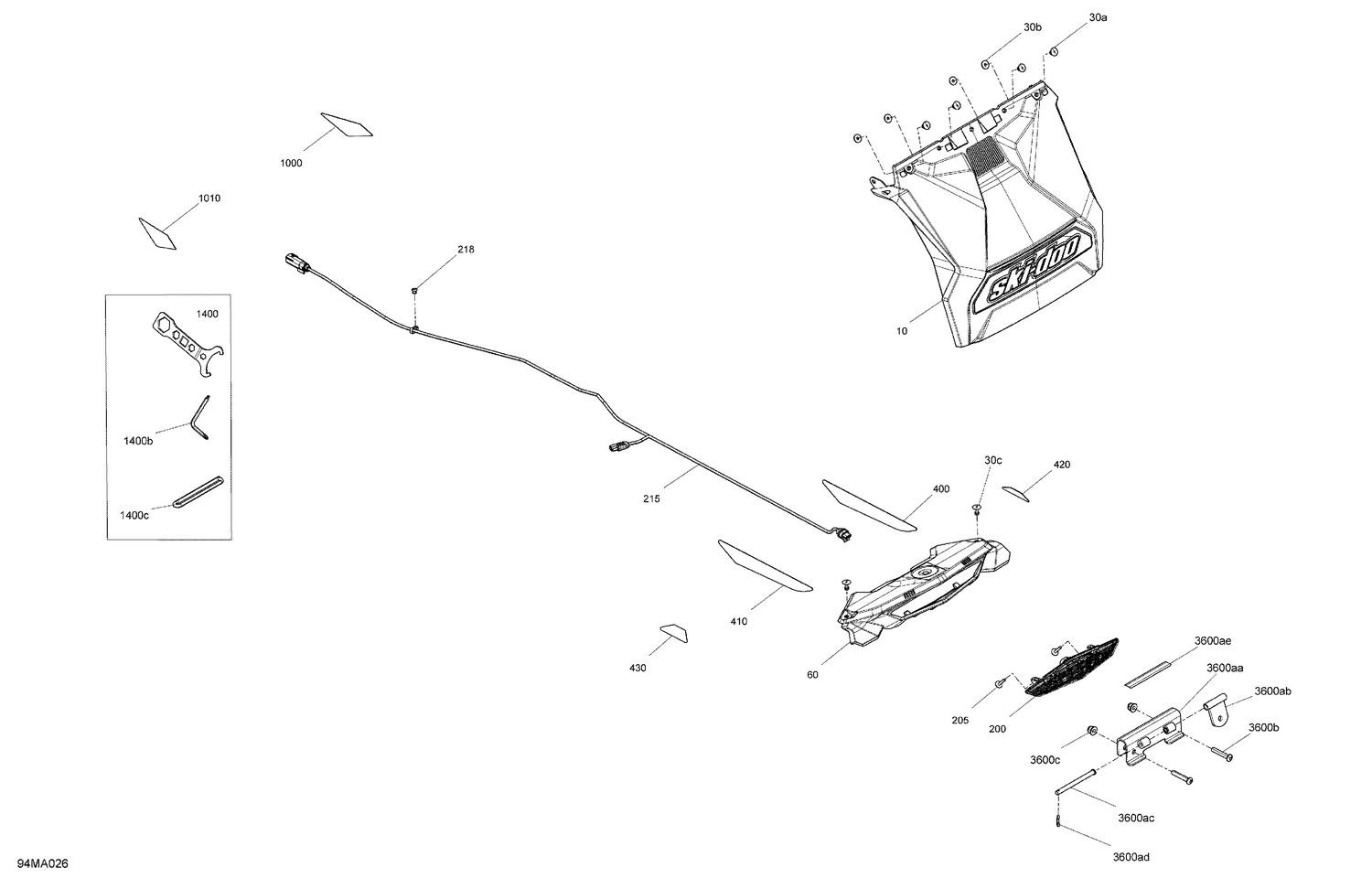

09- Miscellaneous - Utilities
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520001863 | Snow Gard Ass'y |
| 30a | 293150104 | Pop Rivet 3/16" |
| 30b | 517124300 | Washer |
| 30c | 293150100 | Pop Rivet 3/16" |
| 60 | 520001487 | Light Fairing |
| 200 | 520001143 | Rear Light |
| 205 | 250000101 | Plastite Screw Type K-40, M4 X 25 |
| 215 | 515178822 | Rear Light Harness |
| 218 | 390402200 | Pop Rivet 3/16" |
| 400 | 520001900 | Red, RH Rear Reflector |
| 410 | 520001901 | Red, LH Rear Reflector |
| 420 | 520001842 | Red, RH Rear Reflector |
| 430 | 520001860 | Red, LH Rear Reflector |
| 1000 | 520002343 | RH Front Reflector |
| 1010 | 520002344 | LH Front Reflector |
| 1400b | 520001815 | Key |
| 1400c | 529017500 | Rope Starter |
| 3600aa | 511000768 | Support |
| 3600ab | 511000521 | Hitch Plate Welded |
| 3600ac | 511001451 | Lock Pin |
| 3600ad | 371800200 | Cotter Pin |
| 3600ae | 516004568 | WARNING DECAL, SECURITY - Call your local BRP dealership |
| 3600b | 205484546 | Socket Head Screw M8 X 45 |
