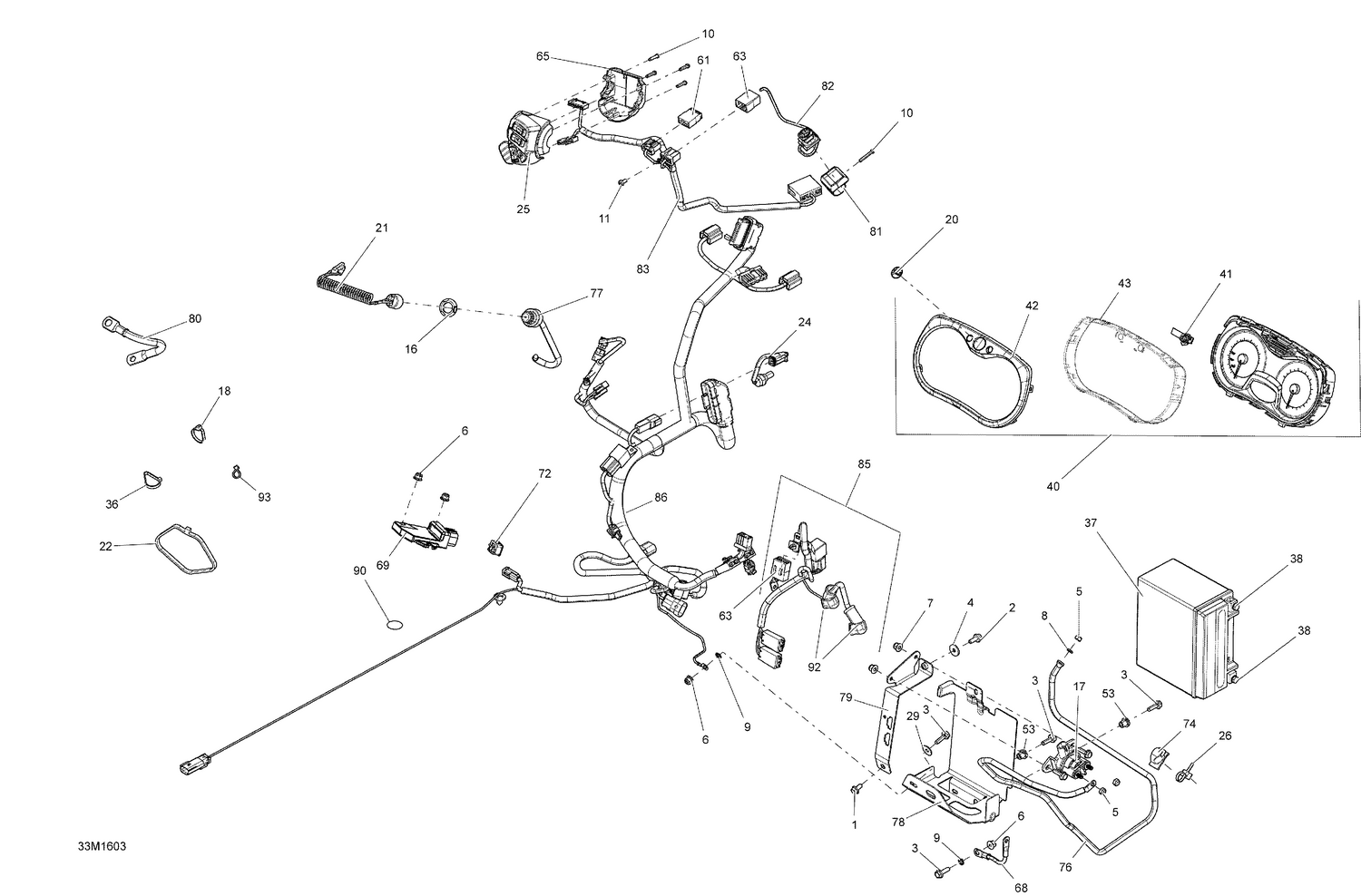

10- Electrical System - 600 CARB
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207661244 | Hex. Flange Screw M6 X 12 |
| 2 | 207661644 | Hex. Flange Screw M6 X 16 |
| 3 | 207662044 | Hex. Flange Screw M6 X 20 |
| 4 | 224061201 | Flat Washer |
| 6 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 7 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 8 | 234061410 | Flat Washer 6 mm |
| 9 | 234461608 | External Serrated Lock Washer 6 mm |
| 10 | 250000263 | Torx Screw #8-18 |
| 11 | 250000690 | Pan Screw Forming, 7500C |
| 16 | 278002963 | Safety Nut (DESS Switch) |
| 17 | 278003012 | Starter Relay |
| 18 | 293750002 | Tie Wrap 142 mm |
| 20 | 516006224 | BRP Logo 20MM x 2MM |
| 21 | 515178284 | DESS This part replaces 515178146. |
| 22 | 293750008 | Tie Wrap 368 mm |
| 24 | 515177814 | Sensor Temperature |
| 25 | 515177022 | LH Housing |
| 26 | 293750009 | Tie-Rap 173 mm |
| 27 | 219704455 | Was 293800018 Loctite 592, 50 ml |
| 29 | 250200082 | Flat Washer |
| 36 | 414115200 | Tie-Rap 180 mm |
| 37 | 410301203 | Battery YUASA YTX20L |
| 38 | 250000282 | Battery Bolt Kit |
| 40 | 515177914 | Speedometer |
| 41 | 415129355 | Speedometer Button |
| 42 | 415129370 | Gauge Ring |
| 43 | 415129349 | Lens |
| 53 | 293450275 | Insert |
| 61 | 515175662 | Male Terminal Housing, 6 Circuits |
| 63 | 515175817 | Male Terminal Housing, 8 Circuits |
| 65 | 515175926 | Switch Housing Plate |
| 68 | 515176358 | Ground Wire |
| 69 | 515176364 | Voltage Regulator |
| 72 | 515176681 | Lock |
| 74 | 515177066 | Clip |
| 76 | 515177208 | Battery/Starter Wire |
| 77 | 515177249 | DESS Switch |
| 78 | 515177264 | Battery Support |
| 79 | 515177266 | Battery Strip |
| 80 | 515177289 | Ground Wire |
| 81 | 515177310 | Emergency Stop Switch Support |
| 82 | 515177362 | Emergency Stop Switch |
| 83 | 515177609 | Steering Wiring Harness |
| 85 | 515177832 | Electrical Start Harnes |
| 86 | 515177980 | Main Harness |
| 90 | 518325560 | Adhesive Patch |
| 92 | 710000495 | Protector Cap |
