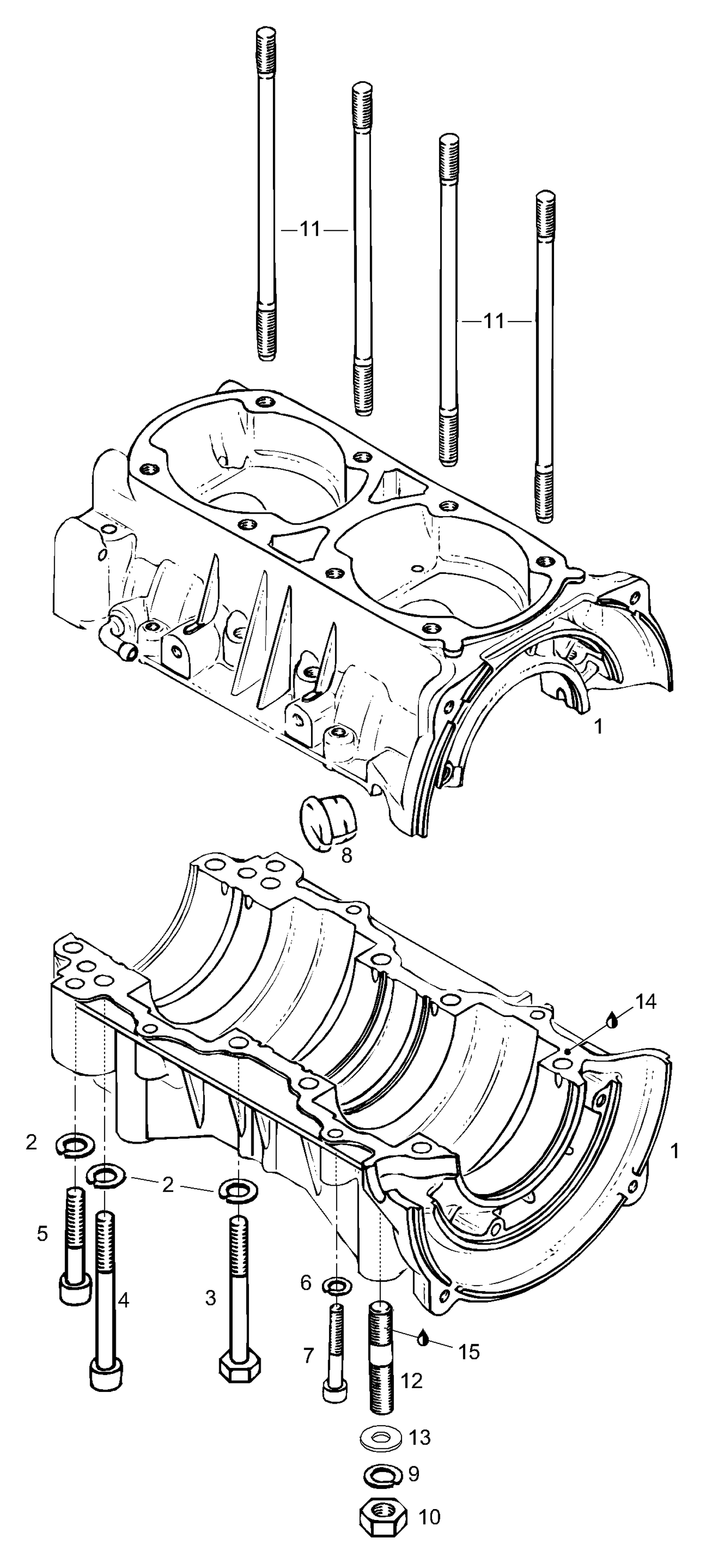

| Ref | Part Number | Description |
|---|
| 2 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 3 |
420841201 |
Screw M8x70 |
| 4 |
420841831 |
ALLEN SCREW M8 X 75 - Call your local BRP dealership |
| 5 |
420841566 |
ALLEN SCREW M8 X 50 - Call your local BRP dealership |
| 6 |
420945751 |
WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 7 |
420241816 |
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 8 |
420860962 |
Cable grommet |
| 9 |
20047 |
Shim B10 DIN127 -St Zne(1=10pcs) - Call your local BRP dealership |
| 10 |
232006414 |
Nut M10 |
| 11 |
420841149 |
STUD M8 X 167 - Call your local BRP dealership |
| 12 |
420940190 |
Stud |
| 13 |
234001410 |
Flat Washer 10 mm |
| 14 |
413702700 |
Adhesive LOCTITE 515 - Call your local BRP dealership |
