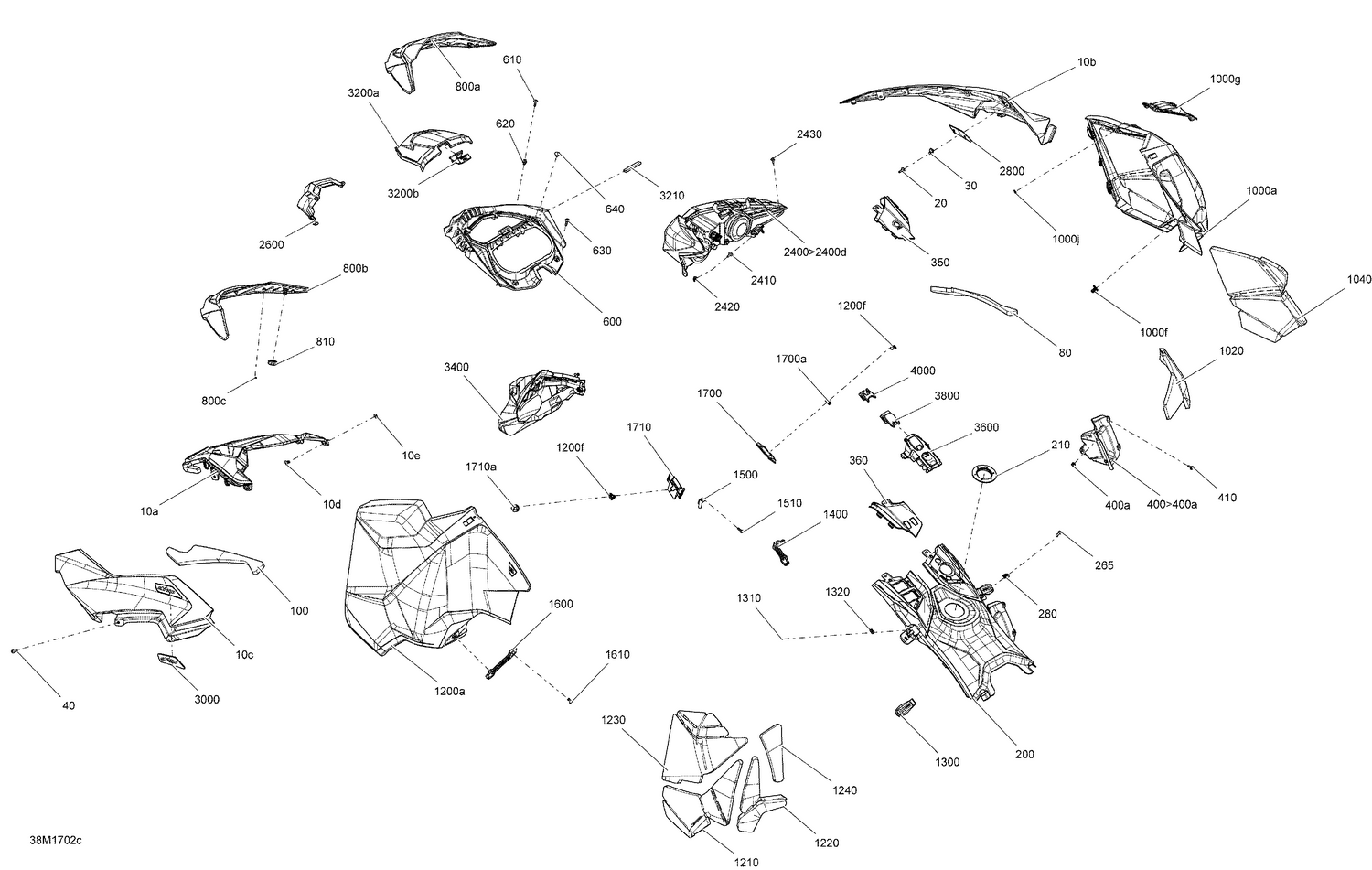

| Ref | Part Number | Description |
|---|
| 10a |
517305636 |
Green Center Hood |
| 10b |
517306120 |
Gulfstream Blue, RH Hood |
| 10c |
517306121 |
Gulfstream Blue, LH Hood |
| 10d |
293150104 |
Pop Rivet 3/16" |
| 10e |
517124300 |
Washer |
| 20 |
250000528 |
Torx Screw M5 X 20 |
| 30 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 40 |
250000587 |
Torx Screw M5 X 26 |
| 80 |
517305090 |
RH Rear Hood Foam |
| 100 |
517305091 |
LH Rear Hood Foam |
| 200 |
517305641 |
Deep Black, Rear Console This part replaces 517306132. |
| 210 |
517304518 |
Console Nut |
| 265 |
250000705 |
Torx Truss Screw M6 X 20 |
| 280 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 350 |
517305549 |
Deep Black, RH Front Console |
| 360 |
517305128 |
Deep Black, LH Front Console |
| 600 |
517305512 |
Deep Black, Indicator Support |
| 610 |
250000528 |
Torx Screw M5 X 20 |
| 620 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 630 |
250000587 |
Torx Screw M5 X 26 |
| 640 |
414644300 |
Black, Dart |
| 800a |
860200901 |
Pare-Brise Ub *Windshield This part replaces 517304931. |
| 800b |
517305617 |
Short Windshield Support |
| 800c |
732610072 |
Push Nut |
| 810 |
517303756 |
Grommet |
| 1020 |
517305085 |
RH Rear Panel Foam |
| 1040 |
517305082 |
RH Upper Panel Foam |
| 1200a |
517306173 |
Gulfstream Blue - LH Panel |
| 1200f |
517305734 |
Pin |
| 1210 |
517305087 |
LH CENTER PANEL FOAM - Call your local BRP dealership |
| 1220 |
517305088 |
LH Lower Panel Foam |
| 1230 |
517305086 |
LH Upper Panel Foam |
| 1240 |
517305089 |
LH REAR PANEL FOAM - Call your local BRP dealership |
| 1300 |
517305279 |
Panel Latch |
| 1310 |
250000565 |
Hexalob Screw M4 X 10 |
| 1320 |
250100156 |
Weld Nut M4 |
| 1400 |
517303612 |
RH Panel Latch |
| 1500 |
517304221 |
Latch Support |
| 1510 |
250000792 |
Torx Screw M5 X 20 |
| 1600 |
517303808 |
LH Panel Latch |
| 1610 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 1700a |
517305723 |
Ring |
| 1710a |
517305723 |
Ring |
| 2400a |
219400070 |
Cap |
| 2400b |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 2400c |
219800282 |
Holder Bracket |
| 2400d |
219800281 |
Spring |
| 2410 |
250000528 |
Torx Screw M5 X 20 |
| 2420 |
250100035 |
Jack Nut M5 |
| 2430 |
250000725 |
Screw M4 X 16 |
| 2600 |
517305618 |
Enjoliveur *Cap |
| 2800 |
517305137 |
RH Hood Filler Plate, SKI-DOO |
| 3000 |
517305138 |
LH Hood Filler Plate, SKI-DOO |
| 3200a |
517304912 |
Deep Black, Upper Storage Access Cover |
| 3200b |
517304917 |
Cover Latch |
| 3210 |
517305157 |
Seal Joint |
| 3400 |
517305095 |
Deep Black, Trunk |
| 3600 |
517304970 |
Deep Black, Console Support |
| 3800 |
517305148 |
Deep Black, Support Console Cap |
