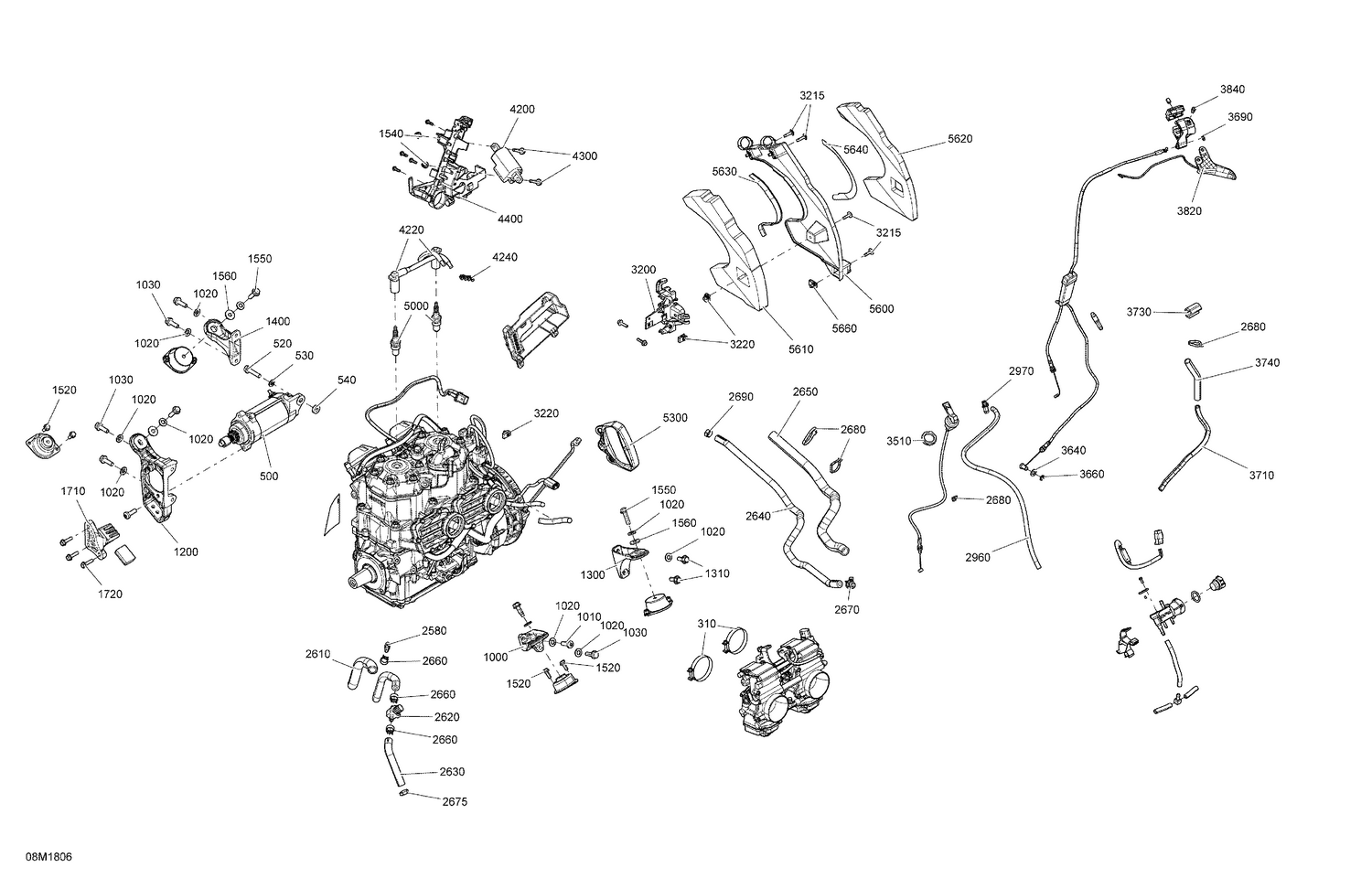

| Ref | Part Number | Description |
|---|
| 160 |
219704407 |
Tubing 10 MM 1000MM Long |
| 220 |
420924724 |
Hose Nipple |
| 300 |
403138815 |
Carburetor Kit, TM40-B418 |
| 310 |
512059835 |
Gemi Clamp |
| 500 |
515178473 |
Starter This part replaces 515177389. |
| 510 |
250000752 |
Torx Screw M8 X 1.25 X 25, Scotch Grip |
| 520 |
207583544 |
Hex Flange Screw M8 X 35, Scotch Grip |
| 530 |
250200008 |
Flat Washer With Teflon 8 mm |
| 540 |
515176500 |
Washer |
| 1000 |
512060478 |
Rear Support, PTO |
| 1010 |
250000752 |
Torx Screw M8 X 1.25 X 25, Scotch Grip |
| 1020 |
250200146 |
Conical Spring Washer M8 |
| 1030 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 1200 |
512060712 |
FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699. |
| 1300 |
512060559 |
Rear Support, MAG |
| 1310 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 1400 |
512060469 |
Front Support, MAG |
| 1500 |
512060729 |
Rubber Mount |
| 1510 |
512061507 |
Vibration Damper This part replaces 512060387. |
| 1515 |
512060448 |
Rubber Mount |
| 1520 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 1540 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 1550 |
207683044 |
Hex. Flange Screw M8 X 30 |
| 1560 |
503183200 |
Yellow, Washer |
| 1580 |
250000796 |
Hex. Flange Screw M8 X 1.25 X 25 |
| 1700 |
512060627 |
Stopper |
| 1710 |
512060576 |
Stopper Support |
| 1720 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 2580 |
512060196 |
Male Connector 1/8"-27 NPT |
| 2600 |
512060355 |
Hose Formed |
| 2610 |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 2620 |
512059324 |
Valve 5/16” |
| 2630 |
512060353 |
Hose Formed |
| 2640 |
512060347 |
Hose Formed |
| 2650 |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 2660 |
414655700 |
Spring Clamp |
| 2670 |
293650214 |
Norma Spring Clamp |
| 2675 |
293650125 |
Oetiker Clamp |
| 2680 |
414115200 |
Tie-Rap 180 mm |
| 2690 |
293650046 |
Oetiker Clamp |
| 2710 |
293750008 |
Tie Wrap 368 mm |
| 2950 |
572045500 |
T-Fitting |
| 2960 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 2970 |
414580700 |
Male Connector |
| 3200 |
512060298 |
Solenoid Support |
| 3215 |
250000528 |
Torx Screw M5 X 20 |
| 3220 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 3500 |
512060672 |
Choke Cable |
| 3510 |
512060671 |
Plastic Nut |
| 3600 |
512060893 |
Throttle Cable |
| 3640 |
234081100 |
Flat Washer 8 mm, Nylon |
| 3660 |
414753500 |
Circlip |
| 3690 |
414274500 |
Circlip |
| 3710 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 3730 |
512060313 |
Protector |
| 3740 |
219704407 |
Tubing 10 MM 1000MM Long |
| 3800 |
512060859 |
Upper Housing |
| 3810 |
512060860 |
Lower Housing |
| 3820 |
512061252 |
Throttle Handle Ass'y |
| 3840 |
732601143 |
Flange Screw |
| 4200 |
512059968 |
Ignition Coil |
| 4220 |
512060291 |
Cable |
| 4240 |
410914600 |
Plastic Clip, Spark Plug Wire |
| 4300 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip |
| 4400 |
512060924 |
Coils Support |
| 4410 |
241151640 |
Hex. Flange Screw K50 X 2.24 X 16 |
| 4600 |
512060680 |
Calibrated Module, 600 |
| 5000 |
415128524 |
Spark Plug NGK BR9ECS |
| 5300 |
512060136 |
Starter Grip |
| 5600 |
512060338 |
Noise Shield |
| 5610 |
512060341 |
Inner Noise Foam |
| 5620 |
512060342 |
Outer Noise Foam |
| 5630 |
512060574 |
Heat Shield |
| 5640 |
512060575 |
Heat Shield |
