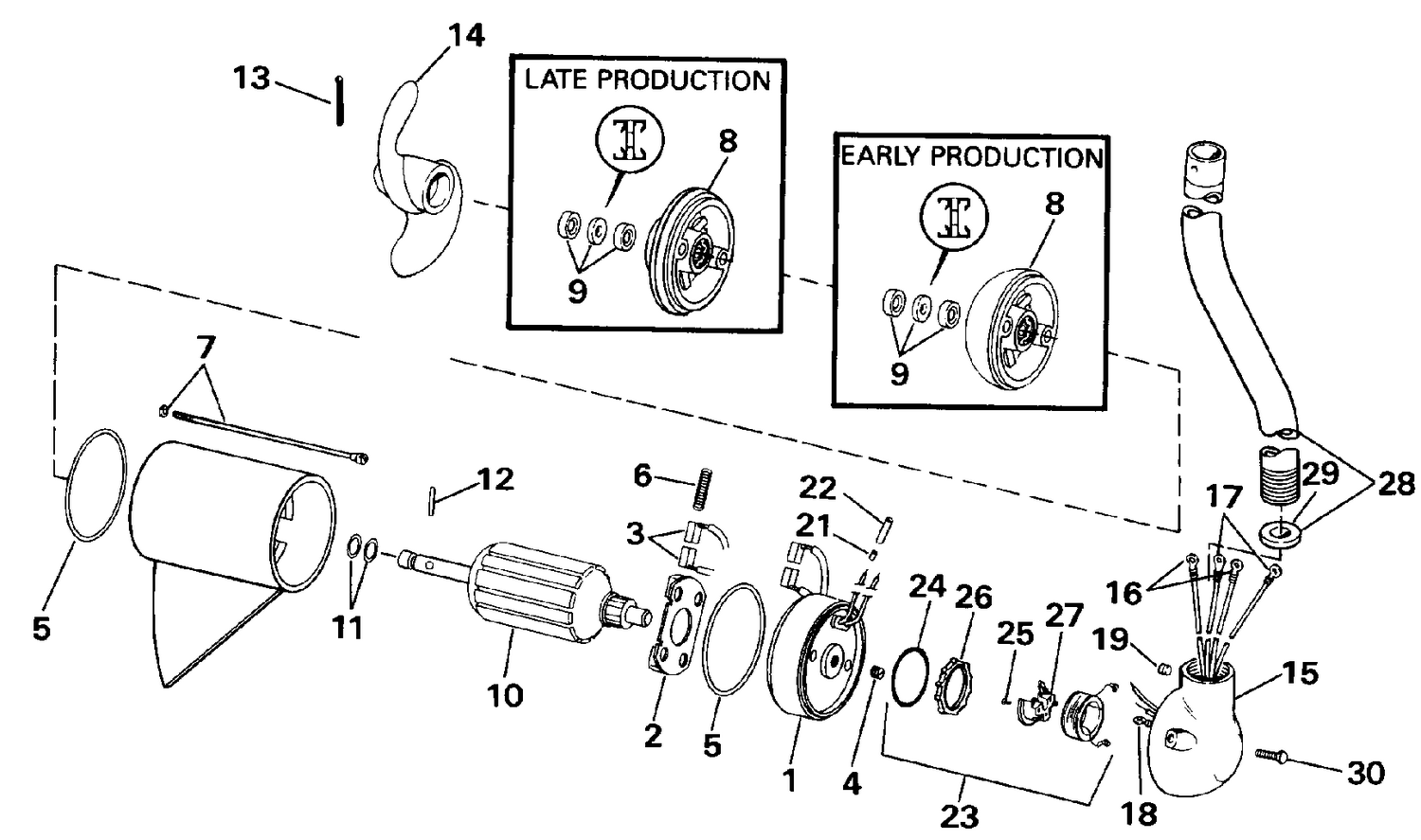

| Ref | Part Number | Description |
|---|
| 1 |
0394722 |
HEAD ASSY., Comm. end |
| 1 |
0583792 |
HEAD ASSY., Comm. end |
| 2 |
0392940 |
BRUSH HOLDER & SCREWS |
| 2 |
0583791 |
BRUSH HOLDER & SCREWS |
| 3 |
0582407 |
REPLACEMENT BRUSH SET |
| 3 |
0583798 |
REPLACEMENT BRUSH SET |
| 4 |
0330114 |
SET SCREW, End head |
| 4 |
0334613 |
SET SCREW, End head |
| 5 |
0583802 |
O-RING PACKAGE |
| 6 |
0583794 |
SPRING SET, Brush |
| 7 |
0398259 |
THRU BOLT PACKAGE |
| 7 |
0583795 |
THRU-BOLT PACKAGE |
| 8 |
0433608 |
HEAD ASSY., Drive end This part replaces 0583793. |
| 8 |
0433612 |
HEAD ASSY., Drive end This part replaces 0398261. |
| 9 |
0393429 |
SEAL PACAKGE ASSY.,Drive end head |
| 9 |
0583797 |
SEAL PACKAGE ASSY,, Drive end |
| 10 |
0433611 |
ELECTRIC MOTOR ASSY., 24v (includes 21, 22 & 24) This part replaces 0394732. |
| 10 |
0583801 |
ARMATURE ASSY. |
| 11 |
0392266 |
THRUST WASHER PACKAGE |
| 11 |
0583796 |
THRUST WASHER PKG |
| 12 |
0333513 |
DRIVE IN, Propeller |
| 14 |
0124709 |
PROP., 8 3/4 x 4 weedless |
| 15 |
0432805 |
ADAPTER & O-RING PKG., 48 in length |
| 15 |
0432976 |
ADAPTER & O-RING PKG., 36 in. length |
| 15 |
0432977 |
ADAPTER & O-RING PKG., 42 in. length |
| 18 |
0512891 |
TERMINAL, Ring |
| 19 |
0321223 |
SET SCREW |
| 23 |
0398545 |
RESISTOR ASSY |
| 26 |
0326969 |
SPACER, Adapter to motor |
| 27 |
0326907 |
TERMINAL BOARD |
| 28 |
0281068 |
MOTOR TUBE & SEAL PKG |
| 28 |
0392156 |
MOTOR TUBE & SEAL PKG. 42" length |
| 28 |
0396737 |
MOTOR TUBE & SEAL PKG., 42" only |
| 28 |
0432682 |
MOTOR TUBE & SEAL PKG., 48 in. length |
| 29 |
0320681 |
SEAL, Adapter to motor tube |
| 0392263 |
0433611 |
ELECTRIC MOTOR ASSY., 24v (includes 21, 22 & 24) This part replaces 0392263. |
| 0433611 |
0433611 |
ELECTRIC MOTOR ASSY., 24v (includes 21, 22 & 24) |
