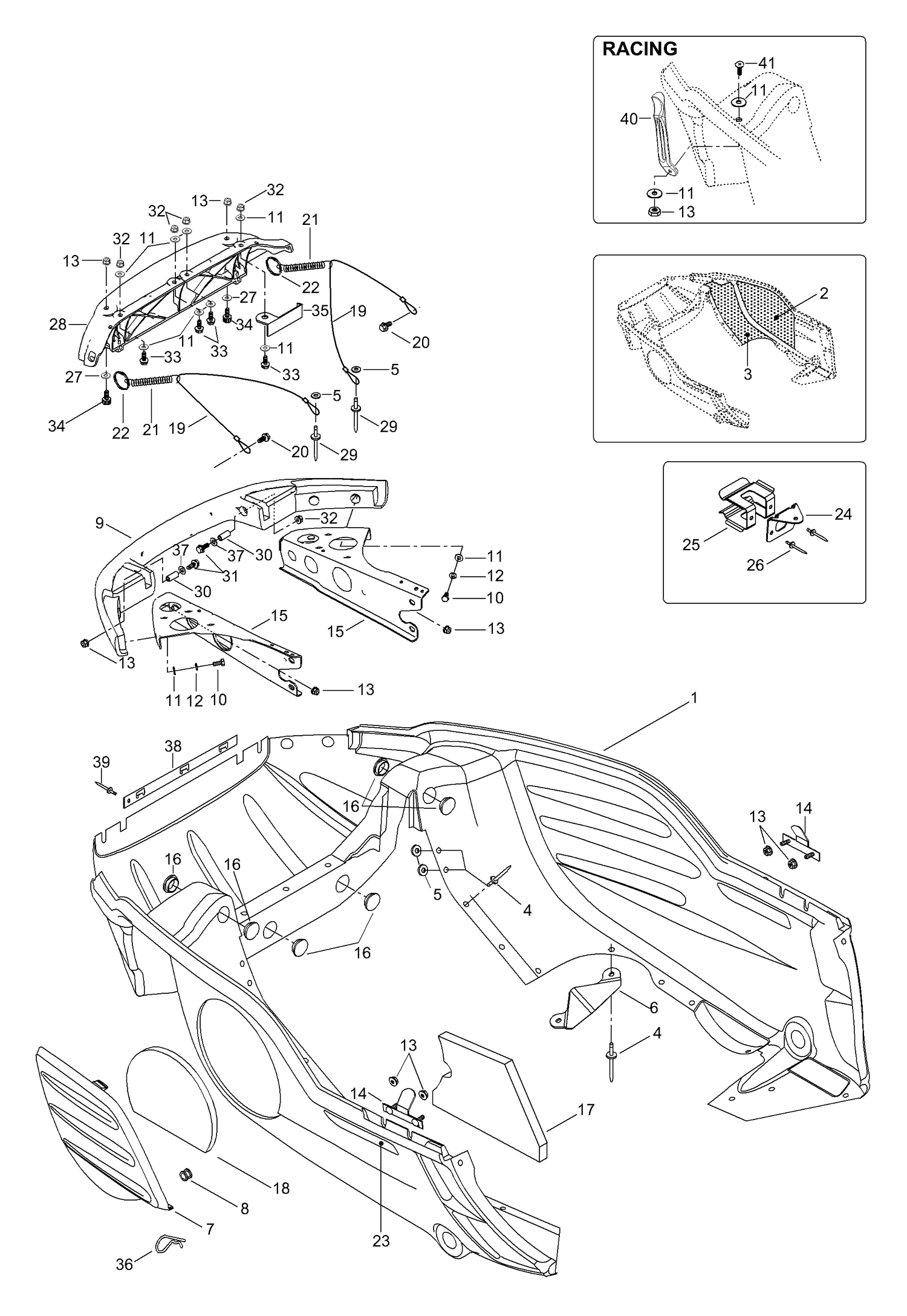

09- Bottom Pan
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5147337 | Bottom pan, red |
| 1 | 5148036 | Bottom pan, black(RER) |
| 2 | 514052718 | Isolation |
| 3 | 514052719 | Isolation |
| 4 | 36037 | Rivet |
| 5 | 20008 | Washer |
| 6 | 502006563 | Deflector snow |
| 7 | 502006506 | BOTTOM PAN DOOR, BLACK, B-160 - Call your local BRP dealership |
| 7 | 502006649 | Bottom pan door, red |
| 8 | 414036300 | Grommet |
| 9 | 502006650 | Bumper, red |
| 9 | 502006719 | Bumper, black This part replaces 502006536. |
| 10 | 40029 | Screw M6x16 |
| 11 | 234062410 | Flat Washer 6 mm This part replaces 20009. |
| 12 | 20052 | Spring washer |
| 13 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 14 | 502006645 | Bracket |
| 15 | 502006596 | L.H. support |
| 15 | 502006597 | LH SUPPORT - Call your local BRP dealership |
| 16 | 414916600 | Nylon cap |
| 17 | 502006558 | Bottom foam |
| 18 | 502006559 | Bottom pan door foam |
| 19 | 549882 | Retainer cable |
| 20 | 40177 | Hex. tapping screw |
| 21 | 415043300 | Spring |
| 22 | 415058300 | RING - Call your local BRP dealership |
| 23 | 415064400 | R.H. reflector, yellow |
| 23 | 415064401 | L.H. reflector, yellow |
| 24 | 502006599 | Bracket |
| 25 | 517281905 | Belt support |
| 26 | 36489 | Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 27 | 20117 | Washer |
| 28 | 517302631 | Hinge-half |
| 29 | 36036 | Rivet |
| 30 | 517302179 | BUSHING - Call your local BRP dealership |
| 31 | 40003 | Screw M6x35 |
| 32 | 33010 | Lock Nut M6 (1=10Pcs) |
| 33 | 40030 | Screw M6x20 |
| 34 | 40381 | Allen screw M6x20 |
| 35 | 5448263 | R.H. Bracket |
| 35 | 5448264 | L.H. Bracket |
| 36 | 414575600 | Hair Pin |
| 37 | 20003 | Washer |
| 38 | 502006647 | Support plate |
