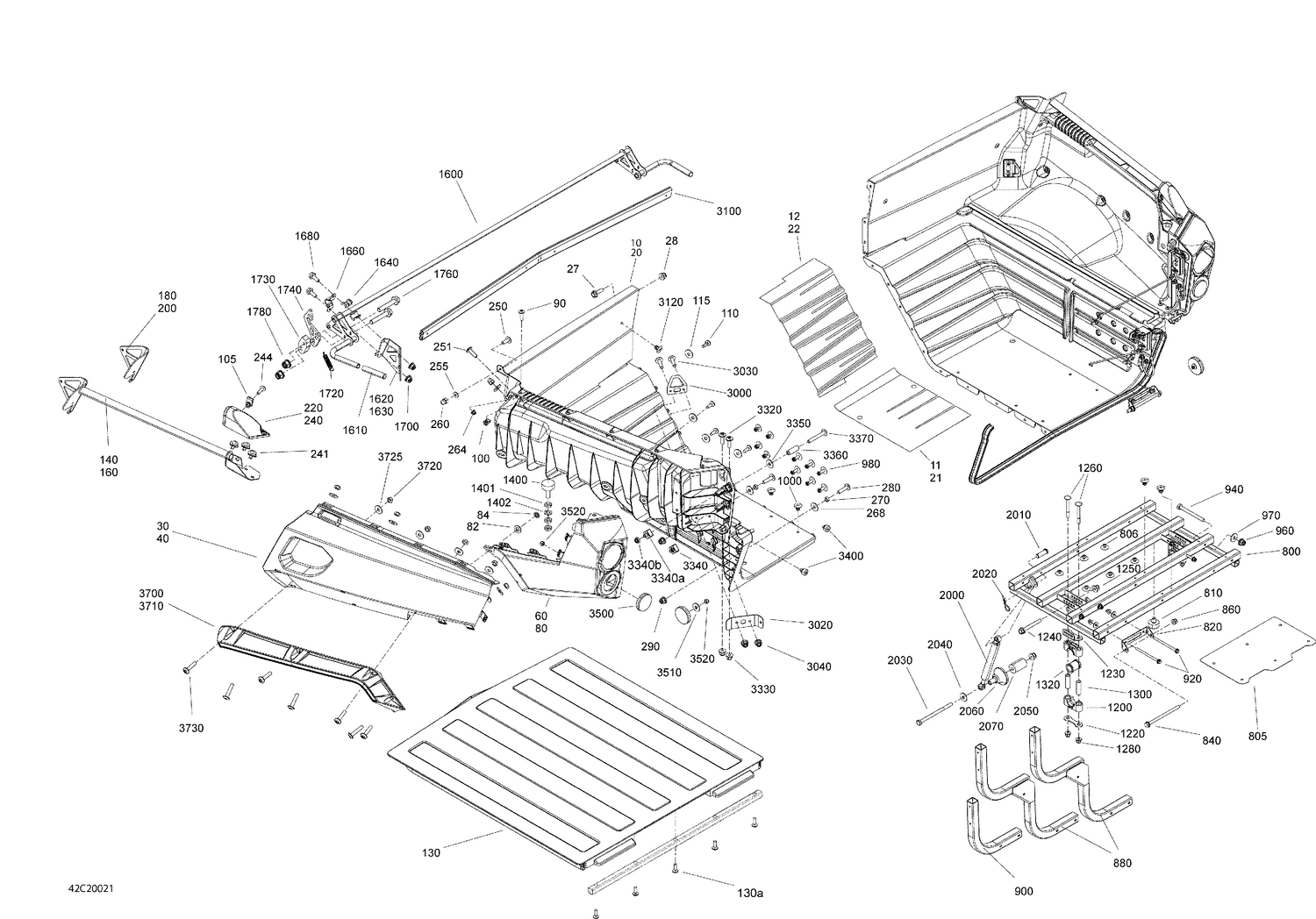

09- Rear Cargo Box - Box
Parts (89)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 715002361 | Left Box Kit |
| 11 | 708300809 | Heat Deflector Sheet |
| 12 | 708300811 | Heat Deflector Sheet |
| 20 | 715004116 | Right Box Kit |
| 21 | 708300810 | Heat Deflector Sheet |
| 22 | 708300812 | Heat Deflector Sheet |
| 27 | 207662054 | Hex. Flange Screw M6 X 20 |
| 28 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 82 | 234081100 | Flat Washer 8 mm, Nylon |
| 84 | 732610072 | Push Nut |
| 90 | 250000724 | Torx Screw M5 X 20 |
| 100 | 250000958 | Panel Nut M5 X 0.8 |
| 110 | 250000720 | Torx Screw K50 X 16 |
| 115 | 234062670 | Stainless Steel Flat Washer |
| 130a | 250000720 | Torx Screw K50 X 16 |
| 250 | 250000721 | Torx Truss Screw M6 X 16 |
| 251 | 250000722 | Torx Screw M6 X 20 |
| 255 | 234062670 | Stainless Steel Flat Washer |
| 260 | 232361493 | Domed Nut M6 |
| 264 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 268 | 234062670 | Stainless Steel Flat Washer |
| 270 | 708300737 | Bushing |
| 280 | 250000758 | Torx Screw M6 X 25 |
| 290 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 800 | 708300875 | Black Box Support |
| 805 | 708300780 | Heat Deflector |
| 806 | 293150103 | Pop Rivet 3/16" |
| 810 | 708000884 | Rubber Stopper |
| 820 | 708300185 | Bracket Pivot |
| 840 | 230683034 | Hex. Flange Screw M8 X 130 |
| 860 | 233281414 | Hex. Flange Elastic Nut M8 |
| 880 | 708300879 | Black Welded Lateral Support |
| 900 | 708300877 | Black Lateral Support |
| 920 | 207669584 | Hex. Flange Screw M6 X 95 |
| 940 | 207066544 | Hex. Screw M6 X 65 |
| 960 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 970 | 234062410 | Flat Washer 6 mm |
| 980 | 293150100 | Pop Rivet 3/16" |
| 1000 | 293150104 | Pop Rivet 3/16" |
| 1200 | 506150400 | Housing Half |
| 1220 | 506150600 | Stopper Plate |
| 1230 | 708300210 | Adjustable Stopper Plate |
| 1240 | 207665044 | Hex. Flange Screw M6 X 50 |
| 1250 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 1260 | 207787044 | Carriage Bolt M8 X 70 |
| 1280 | 233281414 | Hex. Flange Elastic Nut M8 |
| 1300 | 506150500 | Housing Bushing |
| 1320 | 708300172 | Pivot Bushing |
| 1400 | 293720091 | Frame Rubber Bumper |
| 1401 | 232180600 | Hex. Jam Nut M8 |
| 1402 | 234181401 | Lock Washer 8 mm |
| 1600 | 708300751 | Cargo Handle Ass'y |
| 1610 | 708300358 | Cap Latch Lever |
| 1620 | 708300278 | LH Latch Lever Support |
| 1630 | 708300351 | RH Latch Lever Support |
| 1640 | 705500033 | Half Ring |
| 1660 | 708300392 | Clamp Reatiner |
| 1680 | 207661644 | Hex. Flange Screw M6 X 16 |
| 1700 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 1720 | 708300454 | Spring |
| 1730 | 708300902 | Spacer |
| 1740 | 708300136 | Box Retainer |
| 1760 | 250001028 | Hex. Flange Screw M6 X 45 |
| 1780 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2000 | 708301136 | Gaz Shock |
| 2010 | 414079100 | Pin |
| 2020 | 414575600 | Hair Pin |
| 2030 | 207069044 | Hex. Screw M6 X 90 |
| 2040 | 234062410 | Flat Washer 6 mm |
| 2050 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 2060 | 708301059 | Spacer |
| 2070 | 708300470 | Spacer |
| 3000 | 708300183 | Retaining Plate |
| 3020 | 708300206 | Retaining Plate Support |
| 3030 | 250000758 | Torx Screw M6 X 25 |
| 3040 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 3100 | 708301633 | Front Support |
| 3120 | 293150104 | Pop Rivet 3/16" |
| 3320 | 250000722 | Torx Screw M6 X 20 |
| 3330 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 3340a | 269500252 | M6 Nut Housing Ass'y |
| 3340b | 232561600 | Hex. Elastic Stop Nut M6 |
| 3350 | 234062670 | Stainless Steel Flat Washer |
| 3360 | 708300736 | Spacer |
| 3370 | 250000748 | Torx Screw M6 X 45 |
| 3400 | 293830005 | Rubber Bumper |
| 3500 | 705011221 | Red Reflector |
| 3510 | 234062670 | Stainless Steel Flat Washer |
| 3520 | 232551414 | Elastic Stop Nut M5 |
