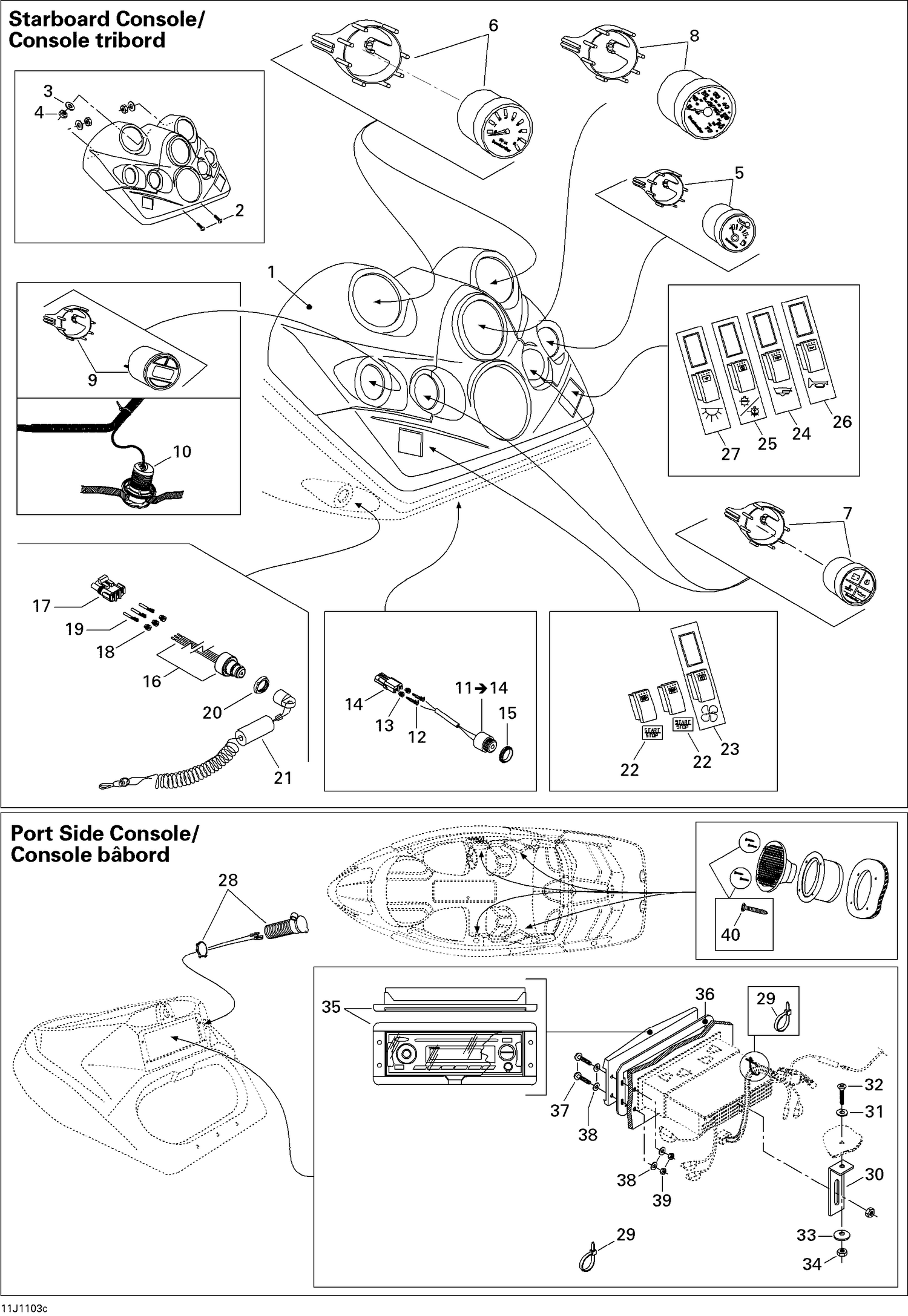

| Ref | Part Number | Description |
|---|
| 1 |
204471392 |
FASCIA - Call your local BRP dealership |
| 2 |
202000203 |
SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership |
| 3 |
234082600 |
Flat Washer 8 mm, Stainless |
| 4 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 5 |
204471128 |
FUEL GAUGE - Call your local BRP dealership |
| 6 |
204470958 |
TACHOMETER GAUGE - Call your local BRP dealership |
| 7 |
204471130 |
ENGINE WARNING GAUGE - Call your local BRP dealership |
| 8 |
204470957 |
Speed Gauge |
| 9 |
204470917 |
DEPTH GAUGE - Call your local BRP dealership |
| 10 |
204471292 |
Depth Sensor |
| 12 |
278000222 |
Male Terminal |
| 13 |
278000218 |
Wire Seal |
| 14 |
278000217 |
Female Housing, 2 Circuits |
| 15 |
278000707 |
Buzzer Nut |
| 16 |
278002773 |
Safety Switch This part replaces 278002325. |
| 17 |
278000273 |
Male Housing, 3 Circuits |
| 18 |
278000218 |
Wire Seal |
| 19 |
278000223 |
Female Terminal |
| 20 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 21 |
204471206 |
Safety Lanyard |
| 22 |
204471178 |
START/STOP SWITCH - Call your local BRP dealership |
| 23 |
204470011 |
VENTILATION SWITCH ASS'Y - Call your local BRP dealership |
| 24 |
204470099 |
BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership |
| 25 |
204470100 |
LIGHT SWITCH ASS'Y - Call your local BRP dealership |
| 26 |
204470101 |
HORN SWITCH ASS'Y - Call your local BRP dealership |
| 27 |
204470102 |
COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership |
| 28 |
710001248 |
DC Outlet |
| 29 |
293750001 |
Tie Wrap 94 mm |
| 30 |
204470837 |
RADIO SUPPORT - Call your local BRP dealership |
| 31 |
234061600 |
Stainless Flat Washer M6 |
| 32 |
208662060 |
PHILLIPS SCREW M6 X 20 - Call your local BRP dealership |
| 33 |
234062600 |
Flat Washer M6, Stainless |
| 34 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 35 |
204470266 |
Radio Cover |
| 36 |
204470257 |
RADIO COVER GASKET - Call your local BRP dealership |
| 37 |
208642560 |
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership |
| 38 |
234040600 |
Flat Washer 4 mm |
| 39 |
232541600 |
Elastic Stop Nut M4 |
