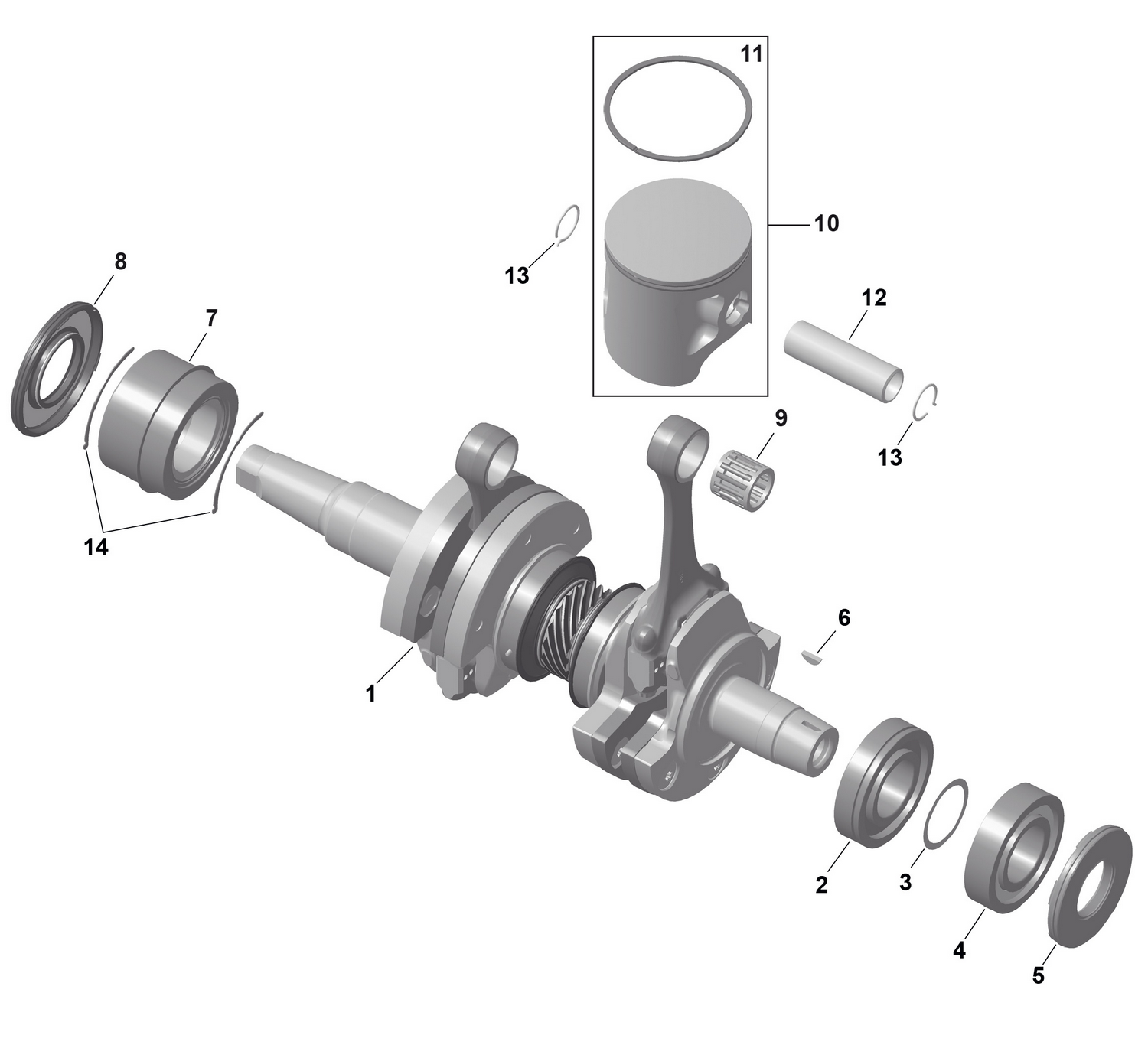

01- ROTAX - Crankshaft and Pistons
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420893982 | Crankshaft Ass'y This part replaces 420893787. |
| 2 | 420832178 | Bearing |
| 3 | 420927401 | Shim 35.4/43/0.3 |
| 4 | 420832575 | Ball Bearing 6207 |
| 6 | 420246015 | Woodruff Key |
| 7 | 420832130 | Roller Bearing |
| 9 | 420832030 | Needle Bearing |
| 11 | 420815416 | Semi-Trapez Ring |
| 12 | 420916480 | Piston Pin |
| 14 | 420953130 | Shim 0.5 |
| 14 | 420953131 | Shim 0.8 |
| 14 | 420953132 | Shim 1.0 |
| 14 | 420953133 | Shim 1.2 |
| 14 | 420953134 | Shim 1,4 |
