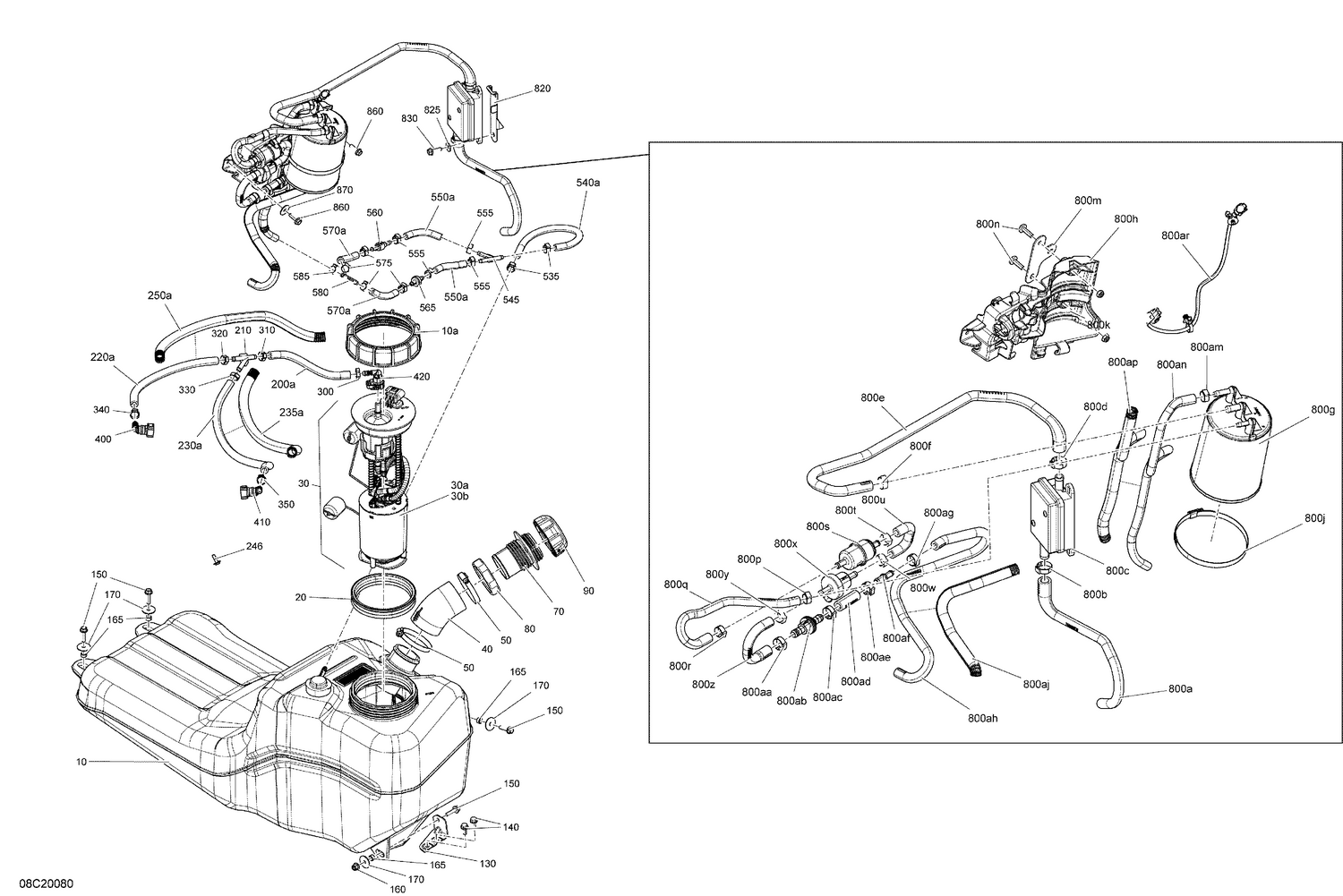

| Ref | Part Number | Description |
|---|
| 10a |
250100062 |
Special Nut M130 |
| 20 |
293250173 |
Gasket |
| 30a |
270600113 |
Fuel Filter |
| 30b |
715900424 |
Fuel Sender |
| 40 |
709000828 |
Fil Neck Hose |
| 50 |
293650081 |
Norma Clamp |
| 70 |
709000867 |
Filler Neck |
| 80 |
211100012 |
Filler Neck Nut, Fuel |
| 90 |
709000868 |
Fuel Cap |
| 130 |
709000997 |
Tank Bracket |
| 140 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 150 |
207662554 |
Hex. Flange Screw M6 X 25 |
| 160 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 165 |
293900135 |
Spacer |
| 170 |
250200029 |
Washer M6 |
| 200a |
219704440 |
Was 709000163 Fuel Line |
| 210 |
293710136 |
Y-Fitting, 5/16'' |
| 220a |
219704440 |
Was 709000163 Fuel Line |
| 230a |
219704440 |
Was 709000163 Fuel Line |
| 235a |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 246 |
250000959 |
Screw PT Type K-50 X 16 |
| 250a |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 300 |
293650047 |
Crimp Clamp, 15.3-706R |
| 310 |
293650047 |
Crimp Clamp, 15.3-706R |
| 320 |
293650047 |
Crimp Clamp, 15.3-706R |
| 330 |
293650047 |
Crimp Clamp, 15.3-706R |
| 340 |
293650047 |
Crimp Clamp, 15.3-706R |
| 350 |
293650047 |
Crimp Clamp, 15.3-706R |
| 400 |
275500700 |
Quick Attach 90° |
| 410 |
275500700 |
Quick Attach 90° |
| 420 |
275500921 |
Quick Disconnect |
| 535 |
293650042 |
Oetiker Clamp |
| 540a |
219704611 |
Hose 6.35Mm 5000Mm Long This part replaces 219704442. |
| 545 |
293710059 |
Y-Fitting |
| 550a |
219704611 |
Hose 6.35Mm 5000Mm Long This part replaces 219704442. |
| 555 |
293650042 |
Oetiker Clamp |
| 560 |
513033469 |
Check Valve |
| 565 |
275500398 |
Check Valve |
| 570a |
219704611 |
Hose 6.35Mm 5000Mm Long This part replaces 219704442. |
| 575 |
293650042 |
Oetiker Clamp |
| 580 |
293710059 |
Y-Fitting |
| 585 |
293650042 |
Oetiker Clamp |
| 800a |
709000879 |
Formed Hose |
| 800aa |
293650053 |
Crimp Clamp |
| 800ab |
275500941 |
Check Valve |
| 800ac |
293650053 |
Crimp Clamp |
| 800ad |
709000882 |
Hose |
| 800ae |
293650053 |
Crimp Clamp |
| 800af |
709000933 |
Flow Reducer |
| 800ag |
293650047 |
Crimp Clamp, 15.3-706R |
| 800aj |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 800an |
219704611 |
Hose 6.35Mm 5000Mm Long This part replaces 219704442. |
| 800ap |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 800ar |
710005866 |
Extension Wiring Harness |
| 800b |
293650186 |
Oetiker Clamp |
| 800c |
709000524 |
Air Filter |
| 800d |
293650186 |
Oetiker Clamp |
| 800e |
709000957 |
Formed Hose |
| 800f |
293650053 |
Crimp Clamp |
| 800g |
709001673 |
Charcoal Canister This part replaces 709000806. |
| 800h |
709000851 |
Canister Support |
| 800j |
293650054 |
Tridon Clamp |
| 800k |
232561600 |
Hex. Elastic Stop Nut M6 |
| 800m |
709001467 |
Charcoal Canister Support This part replaces 709000936. |
| 800n |
250000712 |
Torx Screw M6 X 20 |
| 800p |
293650042 |
Oetiker Clamp |
| 800q |
709000853 |
Formed Hose |
| 800r |
293650046 |
Oetiker Clamp |
| 800s |
513034047 |
Fuel Filter This part replaces 513033719. |
| 800t |
293650047 |
Crimp Clamp, 15.3-706R |
| 800u |
709000857 |
Formed Hose |
| 800w |
293650047 |
Crimp Clamp, 15.3-706R |
| 800x |
709000443 |
Bleed Valve |
| 800y |
293650047 |
Crimp Clamp, 15.3-706R |
| 800z |
709000881 |
Formed Hose |
| 820 |
709000935 |
Filter Support |
| 825 |
234062670 |
Stainless Steel Flat Washer |
| 830 |
207662054 |
Hex. Flange Screw M6 X 20 |
| 860 |
207662054 |
Hex. Flange Screw M6 X 20 |
