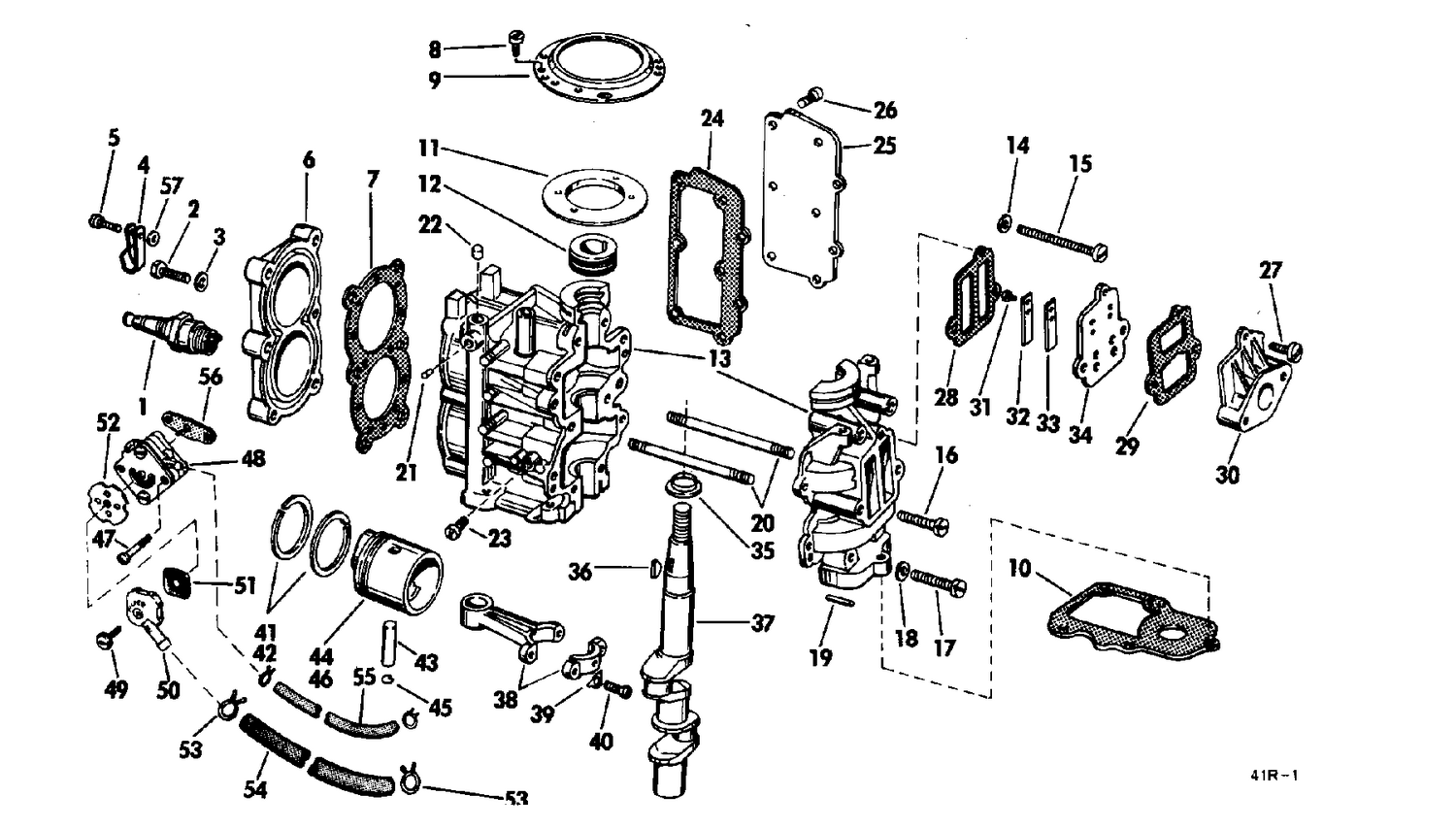

| Ref | Part Number | Description |
|---|
| 1 |
0378101 |
SPARK PLUB, Champion j4j |
| 1 |
0378320 |
SPARK PLUG, AC - M42K |
| 1 |
0378368 |
SPARK PLUG, Auto - Lite A21X |
| 2 |
0306418 |
VIS, ancrage |
| 3 |
0329241 |
RONDELLE This part replaces 0306482. |
| 4 |
0312950 |
CLAMP, H.T. lead |
| 5 |
0321701 |
SCREW, Cam This part replaces 0304441. |
| 6 |
0312854 |
CYLINDER HEAD |
| 7 |
0203130 |
GASKET, Cylinder head |
| 8 |
0332070 |
SCREW, Retaining plate This part replaces 0304442. |
| 9 |
0303278 |
SUPORT, Armature plate |
| 10 |
0312946 |
GASKET |
| 11 |
0303277 |
RETAINING RING |
| 12 |
0510167 |
CAM, Magneto |
| 13 |
0381821 |
CYLINDER & CRANKCASE ASSEMBLY |
| 14 |
0300399 |
WASHER |
| 15 |
0306455 |
SCREW,Long |
| 16 |
0306408 |
SCREW |
| 17 |
0306440 |
SCREW,Medium |
| 18 |
0300399 |
WASHER |
| 20 |
0203159 |
STUD |
| 24 |
0203171 |
GASKET, Cover plate |
| 25 |
0323263 |
PLATE, EXH COVER This part replaces 0203172. |
| 28 |
0203180 |
GASKET |
| 29 |
0203228 |
GASKET |
| 30 |
0203144 |
MANIFOLD,Carburetor |
| 32 |
0203173 |
PLATE,Leaf back-up |
| 33 |
0203175 |
LEAF |
| 34 |
0203174 |
PLATE,Leaf |
| 35 |
0301781 |
COVER,Override switch |
| 36 |
0120395 |
KEY |
| 37 |
0203555 |
CRANKSHAFT |
| 38 |
0383459 |
CONNECTING ROD ASSY This part replaces 0277301. |
| 39 |
0307578 |
LOCK PLATE |
| 40 |
0307582 |
SCREW |
| 41 |
0378412 |
RING,Piston,set standard |
| 42 |
0378414 |
RING,Piston,set .020 O.S. |
| 43 |
0203151 |
WRIST PIN |
| 44 |
0376991 |
PISTON ASSEMBLY,Less rings,std |
| 46 |
0277283 |
PISTON ASSEMBLY,Less rings .020 O.S. |
| 47 |
0309654 |
SCREW |
| 48 |
0388684 |
FUEL PUMP ASSY. This part replaces 0381815. |
| 54 |
0552215 |
HOSE, Conn.to pump |
| 55 |
0302657 |
HOSE, Pump to carb |
| 56 |
0303615 |
GASKET |
| 0277174 |
0277174 |
LEAF PLATE ASSEMBLY |
