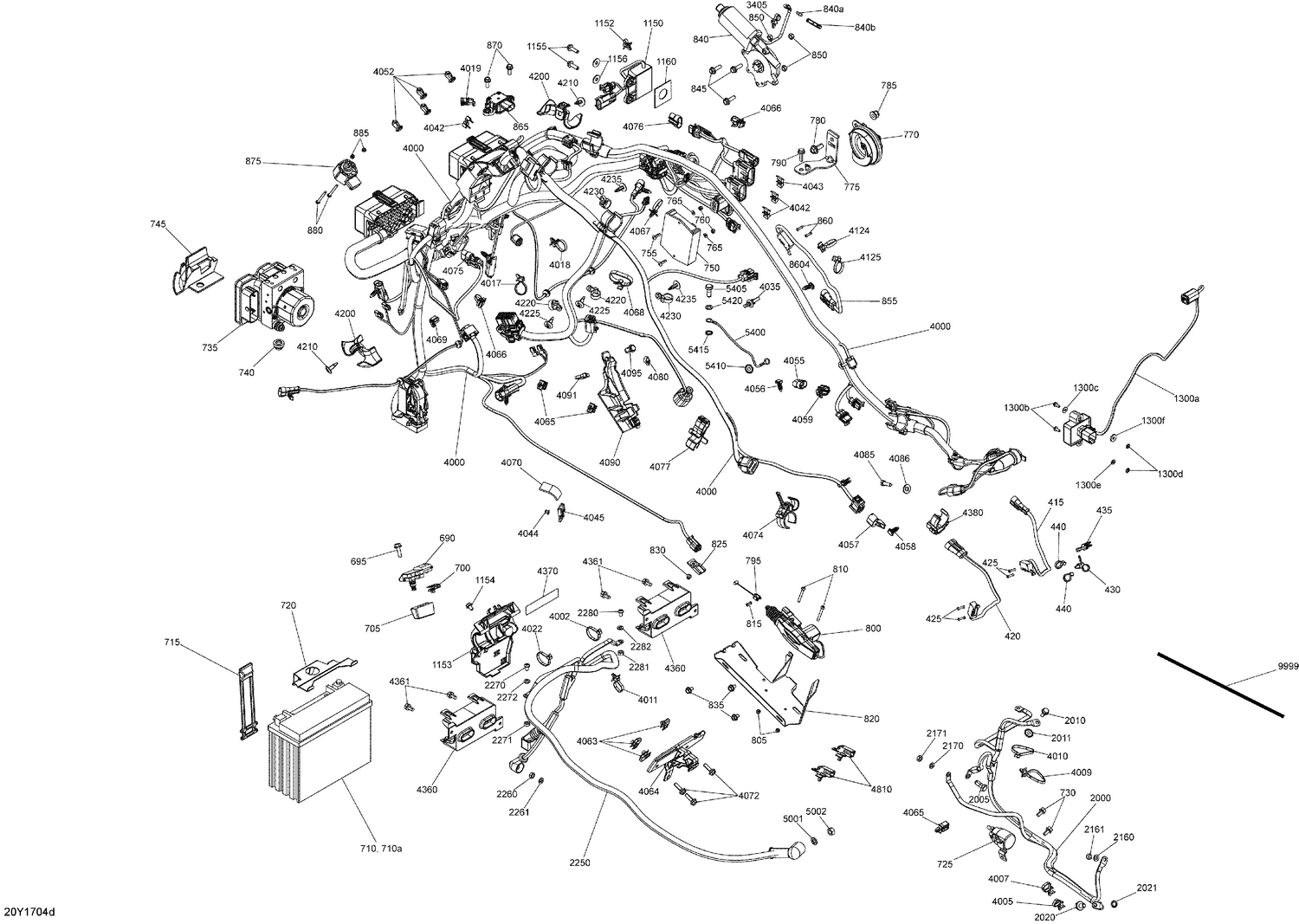

10- Electrical System - Lower - T, LTD
Parts (126)
| Ref | Part Number | Description |
|---|---|---|
| 35 | 250000721 | Torx Truss Screw M6 X 16 |
| 150 | 250000577 | Torx Truss Screw K40 X 12 |
| 255a | 715900043 | Bulb 12V 21W |
| 300 | 219400510 | USB Outlet This part replaces 710004421. |
| 415 | 710003412 | Brake Light Switch Ass'y |
| 420 | 710001379 | Brake Pressure Switch Ass'y |
| 425 | 293150150 | Pop Rivet |
| 430 | 293750009 | Tie-Rap 173 mm |
| 435 | 710002899 | Clip Tie-Rap |
| 440 | 293750002 | Tie Wrap 142 mm |
| 690 | 707000995 | Pressure And Temperature Sensor |
| 695 | 207662554 | Hex. Flange Screw M6 X 25 |
| 700 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 705 | 707000586 | Foam Filter |
| 710a | 250000282 | Battery Bolt Kit |
| 715 | 520000528 | Latch |
| 720 | 710002893 | Battery Holder |
| 725 | 710007777 | Starter Relay This part replaces 710001364. |
| 730 | 210261250 | Hex. Flange Screw M6 X 12 |
| 735 | 219800375 | VCM Module |
| 740 | 710003279 | Shock Damper |
| 745 | 710003996 | VCM Harness Protector |
| 750 | 710005887 | PBM Module Ass'y This part replaces 710004883. |
| 755 | 250000750 | Torx Screw M4 X 16 |
| 760 | 232541484 | Elastic Stop Nut M4 |
| 765 | 234041480 | Flat Washer 4 mm |
| 780 | 207682034 | Hex. Flange Screw |
| 785 | 233281414 | Hex. Flange Elastic Nut M8 |
| 790 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 795 | 710002889 | Reverse Cable |
| 800 | 710011269 | Actuator |
| 805 | 232541414 | Elastic Stop Nut M4 |
| 810 | 205444056 | Socket Head Screw M4 X 40 |
| 815 | 390403000 | Pop Rivet 5/32 |
| 820 | 710005642 | Reverse Actuator Support |
| 825 | 270000141 | Clip |
| 830 | 390402400 | Pop Rivet 3/16" |
| 835 | 210261050 | Hex. Forming Screw M6 X 10 |
| 840a | 278000231 | Insulation Sheath |
| 840b | 278000230 | Male Terminal |
| 845 | 207662054 | Hex. Flange Screw M6 X 20 |
| 850 | 232561434 | Elastic Stop Nut M6 |
| 855 | 710001379 | Brake Pressure Switch Ass'y |
| 860 | 293150150 | Pop Rivet |
| 865 | 710002677 | Yaw Rate Sensor |
| 870 | 210261650 | Hex. Flange Screw M6 X 16 |
| 1150 | 710004916 | Dess Module |
| 1152 | 293750009 | Tie-Rap 173 mm |
| 1153 | 710004308 | Wire Support |
| 1154 | 210261050 | Hex. Forming Screw M6 X 10 |
| 1155 | 210262050 | Hexagonal Head Screw |
| 1156 | 234062410 | Flat Washer 6 mm |
| 1160 | 293830091 | Rubber Bumper |
| 2005 | 207382060 | Hex. Screw M8 X 20, Scotch Grip |
| 2010 | 207661644 | Hex. Flange Screw M6 X 16 |
| 2011 | 250200041 | Lock Washer Serrated M6 |
| 2020 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip |
| 2021 | 234481608 | Serrated Lock Washer 8 mm |
| 2160 | 234061600 | Stainless Flat Washer M6 |
| 2161 | 232561414 | Elastic Stop Nut M6 |
| 2170 | 234161601 | Lock Washer Helical M6 |
| 2171 | 232061600 | Hex. Nut M6 |
| 2250 | 710004736 | POSITIVE CABLE - Call your local BRP dealership |
| 2260 | 232061600 | Hex. Nut M6 |
| 2261 | 234161601 | Lock Washer Helical M6 |
| 2270 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip |
| 2271 | 232061600 | Hex. Nut M6 |
| 2272 | 234161601 | Lock Washer Helical M6 |
| 2280 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip |
| 2281 | 232061600 | Hex. Nut M6 |
| 2282 | 234161601 | Lock Washer Helical M6 |
| 3405 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 4002 | 414115200 | Tie-Rap 180 mm |
| 4005 | 293750009 | Tie-Rap 173 mm |
| 4007 | 293750009 | Tie-Rap 173 mm |
| 4009 | 293750009 | Tie-Rap 173 mm |
| 4010 | 414115200 | Tie-Rap 180 mm |
| 4011 | 293750009 | Tie-Rap 173 mm |
| 4017 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 4018 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 4019 | 710005037 | Clip Tie-Rap |
| 4022 | 414115200 | Tie-Rap 180 mm |
| 4042 | 710001222 | Lock |
| 4044 | 390402400 | Pop Rivet 3/16" |
| 4045 | 270000141 | Clip |
| 4052 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 4055 | 710004906 | Connector Plug |
| 4056 | 710002033 | Connector Holder |
| 4057 | 710004902 | Connector Plug |
| 4058 | 710002033 | Connector Holder |
| 4059 | 710004903 | Connector Plug |
| 4063 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 4064 | 710004256 | CONNECTOR SUPPORT - Call your local BRP dealership |
| 4065 | 709000634 | HARNESS SUPPOR - Call your local BRP dealership |
| 4066 | 293750058 | Tie Rap 2 Pièces pour Bordure |
| 4067 | 293750009 | Tie-Rap 173 mm |
| 4068 | 710004947 | Tie Rap |
| 4069 | 293750063 | Clip Tie-Rap |
| 4070 | 709000401 | Rubber Pad |
| 4072 | 207662044 | Hex. Flange Screw M6 X 20 |
| 4074 | 710004613 | Support |
| 4077 | 710004669 | Wire Support |
| 4080 | 414115200 | Tie-Rap 180 mm |
| 4085 | 207162060 | Hex. Forming Screw M6 X 20 |
| 4086 | 234281704 | Spring Washer M8 |
| 4090 | 710004794 | Harness Holder |
| 4091 | 414115200 | Tie-Rap 180 mm |
| 4095 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 4124 | 293750009 | Tie-Rap 173 mm |
| 4125 | 293750009 | Tie-Rap 173 mm |
| 4200 | 710004931 | Harness Holder |
| 4210 | 414745900 | Tuflock Phillips Plastic Screw |
| 4220 | 710004424 | Tie Rap |
| 4225 | 414745900 | Tuflock Phillips Plastic Screw |
| 4360 | 710004472 | Fuse Holder Support |
| 4361 | 210261250 | Hex. Flange Screw M6 X 12 |
| 4370 | 710003077 | RH/LH Fuse Box Decal |
| 4380 | 710004299 | Cable Support |
| 5001 | 234181601 | Lock Washer 8 mm, Stainless |
| 5002 | 232081414 | Hex. Nut M8 |
| 5400 | 710005134 | TANK CABLE - Call your local BRP dealership |
| 5405 | 207382060 | Hex. Screw M8 X 20, Scotch Grip |
| 5410 | 250200041 | Lock Washer Serrated M6 |
| 5415 | 234481608 | Serrated Lock Washer 8 mm |
| 5420 | 250200111 | Washer |
| 8604 | 710002033 | Connector Holder |
