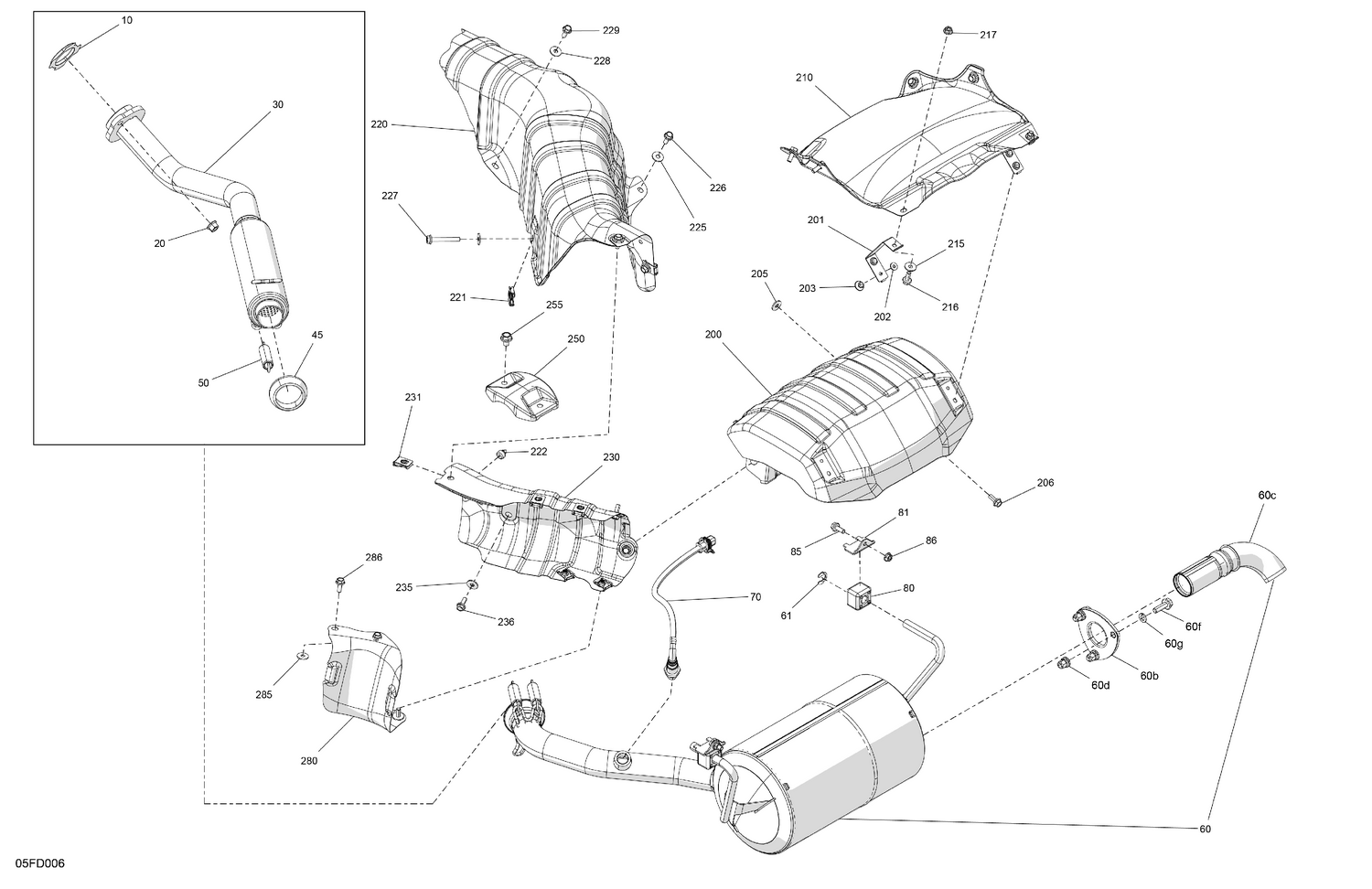

02- Engine - Exhaust
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 707602697 | Exhaust Gasket |
| 20 | 233081436 | Hex. Flange Nut |
| 30 | 707602958 | Exhaust Pipe |
| 45 | 707603475 | Exhaust Gasket |
| 50 | 707601834 | Spring |
| 60b | 707602780 | Gasket |
| 60c | 707602969 | Tail Pipe |
| 60d | 250100238 | Threaded Insert M8 X 1.25 |
| 60f | 207682544 | Hex. Flange Screw M8 X 25 |
| 60g | 707603743 | Lock Washer Din.127B |
| 61 | 293370184 | External Retaining Ring |
| 70 | 707600872 | Oxygen Sensor |
| 80 | 707603000 | Vibration Damper |
| 81 | 707603200 | Muffler Support |
| 85 | 250000906 | Hex Flange Screw M6 X 16 |
| 86 | 233161414 | Hex. Flange Nut M6 |
| 200 | 707603428 | Heat Shield |
| 201 | 707603029 | Heat Shield Support |
| 202 | 517225900 | Flat Washer |
| 203 | 390910000 | Pop Rivet 3/16” |
| 205 | 234062410 | Flat Washer 6 mm |
| 206 | 250000906 | Hex Flange Screw M6 X 16 |
| 210 | 707603768 | Heat Shield This part replaces 707603709. |
| 215 | 234062410 | Flat Washer 6 mm |
| 216 | 250000906 | Hex Flange Screw M6 X 16 |
| 217 | 233161414 | Hex. Flange Nut M6 |
| 220 | 707603002 | Heat Shield |
| 221 | 250100208 | Panel Nut M6 X 1.0 |
| 222 | 293830005 | Rubber Bumper |
| 225 | 234062410 | Flat Washer 6 mm |
| 226 | 250000906 | Hex Flange Screw M6 X 16 |
| 227 | 207664544 | Hex. Flange Screw M6 X 45 |
| 228 | 234062410 | Flat Washer 6 mm |
| 229 | 250000906 | Hex Flange Screw M6 X 16 |
| 230 | 707603003 | Heat Shield |
| 231 | 250100208 | Panel Nut M6 X 1.0 |
| 235 | 234062410 | Flat Washer 6 mm |
| 236 | 250000906 | Hex Flange Screw M6 X 16 |
| 250 | 707603005 | Heat Shield |
| 255 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip |
| 280 | 707603006 | Heat Shield |
| 285 | 234062410 | Flat Washer 6 mm |
