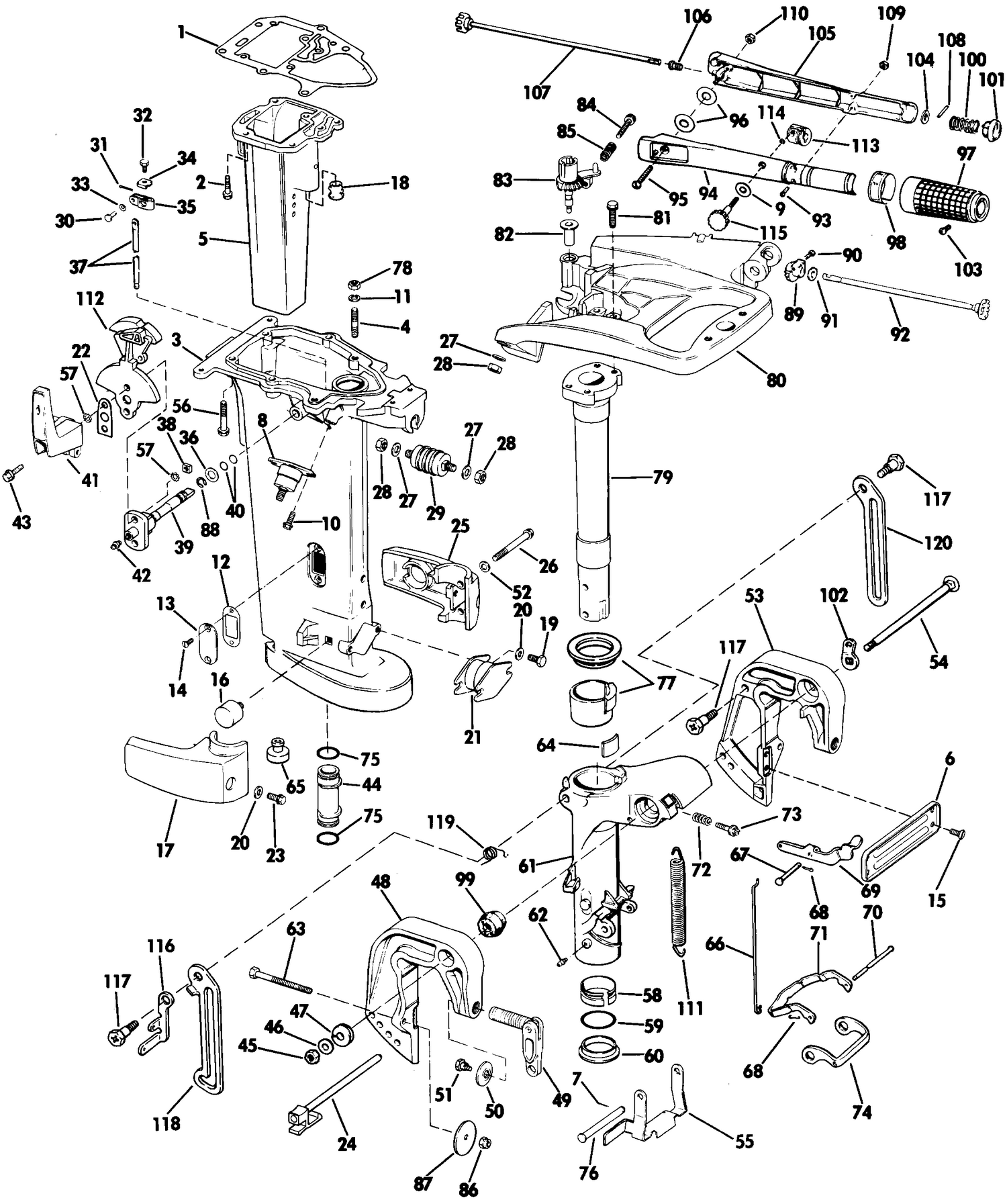

| Ref | Part Number | Description |
|---|
| 2 |
0314986 |
SCREW, Inner exhaust tube |
| 3 |
0435564 |
EXHAUST HOUSING ASSY. This part replaces 0395160. |
| 5 |
0336258 |
EXHAUST TUBE, Inner This part replaces 0330547. |
| 6 |
0310378 |
PLATE, Stern bracket |
| 9 |
0324956 |
RONDELLE, câble d'accélérateur |
| 12 |
0304023 |
GASKET, Cover plate |
| 13 |
0303862 |
COVER PLATE, Extension LONG SHAFT MODELS |
| 14 |
0303587 |
SCRES,Cover plate |
| 15 |
0310379 |
SCREW |
| 17 |
0323109 |
HOUISING,Lower mount,stbd. |
| 20 |
0303886 |
LOCKWASHER |
| 21 |
0321469 |
MOUNT, Rubber, lower front |
| 22 |
0327163 |
ENTRETOISE, levier de sens de marche |
| 23 |
0309942 |
SCREW, Anchor bracket |
| 24 |
0395188 |
PIN ASSEMBLY, Tilt |
| 25 |
0323108 |
HOUSING, Lower mount port |
| 26 |
0342540 |
SCREW, Exhaust housing to ext. This part replaces 0316440. |
| 27 |
0303884 |
RONDELLE |
| 29 |
0304800 |
MOUNT, Rubber, upper front |
| 30 |
0319541 |
PIN, Bellcrank to shift rod |
| 32 |
0321532 |
SCREW |
| 33 |
0304380 |
RONDELLE ÉLASTIQUE |
| 34 |
0319537 |
CLIP |
| 35 |
0322177 |
LEVER, Shift rod |
| 36 |
0303775 |
WAHSER, Lever to hsg |
| 37 |
0304859 |
ROD, Shaft, upper |
| 39 |
0394574 |
ADJ. LEVER & SHAFT ASSY |
| 43 |
0328230 |
VIS, levier de sens de marche & came de commande vers levier de réglage |
| 44 |
0324453 |
SPACER |
| 44 |
0324455 |
SPACER, Exh. hsg. to imp. hsg |
| 46 |
0309335 |
WASHER |
| 47 |
0302051 |
SPRING Tilting bolt |
| 48 |
0395203 |
STERN BRKT ASSY., Stbd. |
| 49 |
0391421 |
CLAMP SCREW & HANDLE |
| 49 |
0433675 |
CLAMP SCR. & HAND. ASSY. This part replaces 0388347. |
| 52 |
0304144 |
LOCK WASHER |
| 53 |
0395202 |
STERN BRKT ASSY., Port (Incl. items 49,50,51) |
| 54 |
0328010 |
BOLT, Tilt |
| 55 |
0324444 |
LINK , Shallow water drive |
| 56 |
0324816 |
SCREW, Anode |
| 58 |
0309967 |
BUSHING, Pilot shaft, lower |
| 60 |
0309966 |
THRUST WASHER, Lower swivel bracket |
| 61 |
0328676 |
BRACKET, Swivel |
| 63 |
0432294 |
SCREW & NUT ASSEMBLY This part replaces 0313966. |
| 64 |
0397736 |
BLOCK ASSY., Friction This part replaces 0319086. |
| 65 |
0326071 |
BUMPER, Mount housing |
| 66 |
0303978 |
LINK, Reverse lock arm to shaft |
| 67 |
0303930 |
PIN, Cotter, pivot shaft |
| 69 |
0303980 |
ARM, Manual locking lever |
| 70 |
0303949 |
ROD, Reverse lock |
| 71 |
0329962 |
LEVER, Reverse lock |
| 74 |
0303950 |
LINK, Reverse lock |
| 75 |
0301967 |
O RING |
| 76 |
0324445 |
PIN, Shallow drive |
| 77 |
0397736 |
BLOCK ASSY., Friction This part replaces 0388748. |
| 79 |
0329648 |
PILOT SHAFT |
| 80 |
0329646 |
BRACKET, Steering |
| 82 |
0303854 |
BUSHI:NG, Throttle control |
| 83 |
0393943 |
GEAR, Throttle control |
| 84 |
0304573 |
SCR., Idle adj. |
| 85 |
0552368 |
SPRING, Idle adj. screw |
| 88 |
0315786 |
RETAINER, Knob |
| 89 |
0303142 |
PINION, Control throttle |
| 90 |
0312491 |
SCREW, Clamp to bracket |
| 91 |
0305347 |
BUSHING, Throttle shaft |
| 92 |
0387057 |
GEAR & SHAFT, Short |
| 93 |
0330977 |
SCREW, Handle halves |
| 94 |
0322933 |
HANDLE ,Sterring,inner half |
| 95 |
0330976 |
SCREW, Handle halves |
| 96 |
0303079 |
WASHER |
| 97 |
0393556 |
GRIP & SLEEVE ASSY. |
| 98 |
0327943 |
PLATE |
| 99 |
0301983 |
CONICAK WASHER,Stern brkt |
| 100 |
0301656 |
SPRING |
| 101 |
0303282 |
BLOCK |
| 102 |
0300364 |
LINK, Conical, tilt shaft |
| 104 |
0303252 |
WAHSER, Grip spring |
| 105 |
0322932 |
HANDLE, Outer half |
| 106 |
0325074 |
BUSHING |
| 107 |
0390676 |
GEAR & SHAFT, Long |
| 110 |
0328742 |
NUT This part replaces 0306338. |
| 111 |
0303979 |
SPRING, Reverse lock |
| 112 |
0396741 |
ACTUATOR CAM, Shift |
| 116 |
0328579 |
LEVER, Support |
| 117 |
0328895 |
SCREW, Tilt lock |
| 118 |
0329498 |
SUPPORT, Tilt lock bracket starboard |
| 119 |
0329499 |
SPRING, Support lever |
