| Ref | Part Number | Description |
|---|
| 1 |
0396961 |
SWIVEL BRACKET |
| 3 |
0329291 |
BAGUE |
| 7 |
0392517 |
STEERING ARM ASSEMBLY |
| 8 |
0327696 |
CONTRE-CROU, arbre d'articulation |
| 9 |
0321035 |
BRUSHING, Swivel bracket |
| 10 |
0321673 |
COVER, Mount bracket lower |
| 11 |
0329894 |
SCREW |
| 12 |
0340773 |
MOUNT BRACKET |
| 13 |
0320746 |
CROU, support de montage |
| 14 |
0314024 |
SEAL HOUSING, Outer |
| 15 |
0340772 |
EXHAUST HOUSING, Outer |
| 16 |
0326900 |
SCREW, Exhaust housing |
| 17 |
0307708 |
RONDELLE GROWER |
| 18 |
0387796 |
RUBBER MOUNT, Lower |
| 19 |
0318612 |
SCREW, Bracket to cover |
| 20 |
0307708 |
RONDELLE GROWER |
| 21 |
0340777 |
COVER, Housing, rear |
| 22 |
0337023 |
EXHAUST HOUSING |
| 24 |
0319281 |
WASHER TUBE |
| 25 |
0335384 |
EXTENSION, Water tube |
| 27 |
0329894 |
SCREW |
| 30 |
0329828 |
GASKET, Adapter to powerhead |
| 31 |
0436394 |
RUBBER MOUNT ASSEMBLY, Upper |
| 32 |
0306836 |
SCR,Altnr brkt |
| 33 |
0321653 |
SCREW, Upper mount |
| 34 |
0313580 |
WASHER |
| 36 |
0395844 |
STEERING BRACKET, ASSY., Stbd. |
| 38 |
0331019 |
DOWEL, Adapter to upper mount |
| 39 |
0336309 |
SEAL, Steering arm |
| 40 |
0320792 |
PIN |
| 42 |
0340778 |
COVER, Exhaust housing, front |
| 43 |
0321054 |
SPRING CLIP |
| 44 |
0363254 |
NUT, Stern bracket screw This part replaces 0313623. |
| 45 |
0307238 |
RONDELLE |
| 46 |
0320248 |
RONDELLE, écrou |
| 47 |
0318273 |
Bolt hex retainer 1/2 in. |
| 48 |
0319886 |
SCREW |
| 49 |
0318572 |
Bolt thread protective cap 1/2 in. |
| 50 |
0331578 |
Engine mount bolt 5 x 1/2 in. |
| 50 |
0363011 |
SCREW, Stern bracket mounting, 1/2 x 5.75 in. (146 mm) This part replaces 0321577. |
| 50 |
0363012 |
SCREW, Bracket mounting This part replaces 0336676. |
| 51 |
0318272 |
Nut backing plate (square) 1/2 in. |
| 52 |
0436541 |
ROD Assy, Thrust |
| 53 |
0321053 |
SORUBG,Thrust rod |
| 54 |
0396309 |
STERN BRACKET ASSEMBLY, Port |
| 55 |
0390442 |
LOCATING LEVER, Rod |
| 56 |
0321935 |
RETAINING PLATE |
| 58 |
0329109 |
SHOULDER SCREW |
| 59 |
0315511 |
NUT, Bracket to mount support |
| 60 |
0306423 |
BOLT |
| 61 |
0337024 |
MEGAPHONE |
| 62 |
0332690 |
SPACER, Bellcrank shaft |
| 64 |
0329110 |
VIS, boîtier d'échappement vers bloc cylindres-carter This part replaces 0319358. |
| 65 |
0318612 |
SCREW, Bracket to cover |
| 66 |
0329012 |
KNOB Tilt & reverse lock handle |
| 67 |
0318238 |
SCREW |
| 69 |
0204757 |
BOW WASHER |
| 71 |
0303887 |
WASHEER, Pin to swivel bracket |
| 72 |
0319108 |
SCREW BELCRANK |
| 73 |
0321246 |
BUSHING, Shock absorber, lower |
| 74 |
0329519 |
SPACER Stern bracket |
| 75 |
0321591 |
PIN, Link to locking |
| 76 |
0321592 |
PIN, Link to swivel bracket |
| 77 |
0332692 |
ROD, Reverse lock lever |
| 78 |
0321695 |
PIN, Cylinder, lower |
| 79 |
0332687 |
LINK, Reverse lock, starboard |
| 80 |
0332691 |
BELLCRANK |
| 80 |
517306450 |
RH Knob Part |
| 81 |
0321750 |
LOCKING LEVER, Reverse lock |
| 82 |
0334345 |
RETAINER, Lock spring |
| 83 |
0312863 |
PIN, Trail lock lever stop |
| 84 |
0332697 |
RETAINER, Spring |
| 85 |
0332875 |
LINK, Reverse lock, port |
| 87 |
0332688 |
SPACER |
| 88 |
0336448 |
BAFFLE, Exhaust housing |
| 89 |
0321920 |
SPRING, Reverse lock |
| 90 |
0332689 |
SPRING, Trail lock return |
| 91 |
0332698 |
SPRING, Trail lock |
| 92 |
0909676 |
SCREW |
| 93 |
0387791 |
SHOCK ABSORBER |
| 94 |
0397730 |
LEVER & SHAFT |
| 95 |
0319043 |
SEAL, Water tube upper |
| 96 |
0584120 |
GROUND LEAD |
| 97 |
0306014 |
VIS, ancrage |
| 98 |
0320866 |
RONDELLE DE BUTÉE, arbre d'articulation |
| 100 |
0329793 |
SPRING, Steering friction |
| 101 |
0330296 |
GUARD, Handle |
| 102 |
0394036 |
HANDLE & SCREW ASSY |
| 103 |
0329529 |
BOLT TILT SHAFT |
| 104 |
0343600 |
WASHER, Screw, pulley This part replaces 0305273. |
| 105 |
0329530 |
BUSHING, Tilt shaft |
| 107 |
0351395 |
EXTENSION, Gearcase This part replaces 0340774. |
| 108 |
0333270 |
STUD, Exhaust housing |
| 110 |
0329234 |
SEAL, Ext. to impeller hsg |
| 111 |
0433458 |
ANODE, Port stern bracket |
| 112 |
0333350 |
SCREW, Anode |
| 114 |
0584119 |
LEAD ASSEMBLY, Ground |
| 115 |
0306014 |
VIS, ancrage |
| 117 |
0304221 |
SCEW,Collar to cable |
| 118 |
0332693 |
COLLAR, Reverse lock release |
| 120 |
0336308 |
GASKET |
| 121 |
0344363 |
ADAPTER, Exhaust housing This part replaces 0336274. |
| 145 |
517306451 |
LH Knob Part |
| 400 |
517306302 |
Reverse Lever Trim |
| 410 |
293150104 |
Pop Rivet 3/16 |

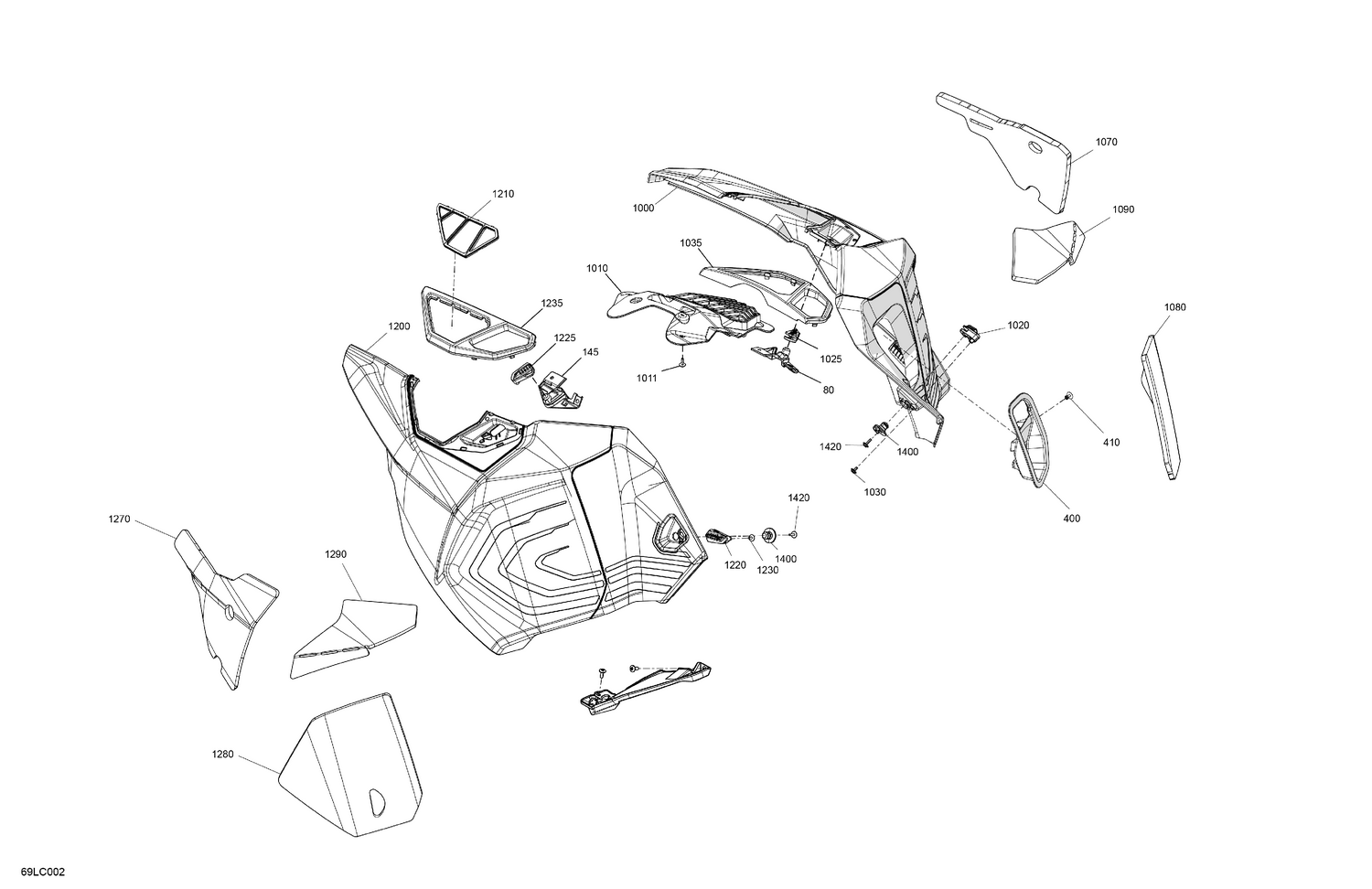

| 1000 |
517307024 |
RH Side Panel With Opening And L Grille |
| 1010 |
517306706 |
RH Grille |
| 1011 |
250000725 |
Screw M4 X 16 |
| 1020 |
517305773 |
RH Rear Latch |
| 1025 |
517305773 |
RH Rear Latch |
| 1030 |
250000805 |
Plastite Screw M4 X 10 |
| 1035 |
517308523 |
RH Large Trim |
| 1070 |
517308470 |
RH Central Side Panel Foam |
| 1080 |
517308471 |
RH Rear Side Panel Foam |
| 1090 |
517308473 |
RH Upper Side Panel Foam |
| 1200 |
517307025 |
LH Side Panel With Filter |
| 1210 |
517306832 |
LH Air Intake Grip |
| 1220 |
517305774 |
LH Rear Latch |
| 1225 |
517305774 |
LH Rear Latch |
| 1230 |
250000805 |
Plastite Screw M4 X 10 |
| 1235 |
517308524 |
LH Large Trim |
| 1270 |
517306577 |
LH Central Side Panel Foam This part replaces 517308476. |
| 1280 |
517306578 |
LH Rear Side Panel Foam This part replaces 517308477. |
| 1290 |
517306579 |
LH Upper Side Panel Foam This part replaces 517308478. |
| 1400 |
517305985 |
Rear Stud |
