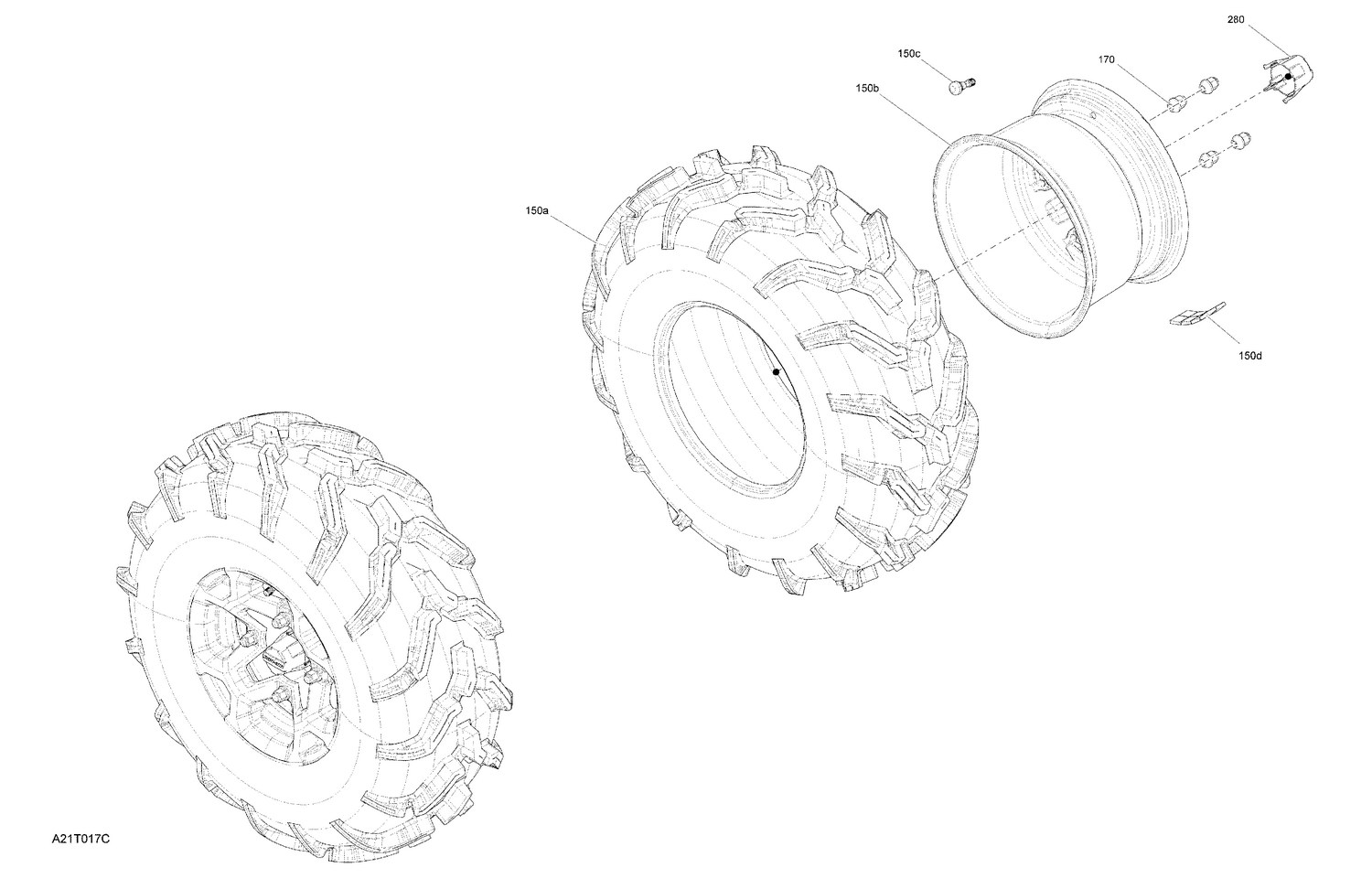

04- Drive - Rear Section - Wheels - Mossy Oak Edition

04- Drive - Rear Section - Wheels - Mossy Oak Edition

Parts (4)

RefPart NumberDescription
150a 705503275 Tire 26X10B12 This part replaces 705502940.
150b 705501493 Black, Rear Rim
150c 705402595 Tire Valve Ass'y
170 250100184 Black, Wheel Nut M10 X 1.25
