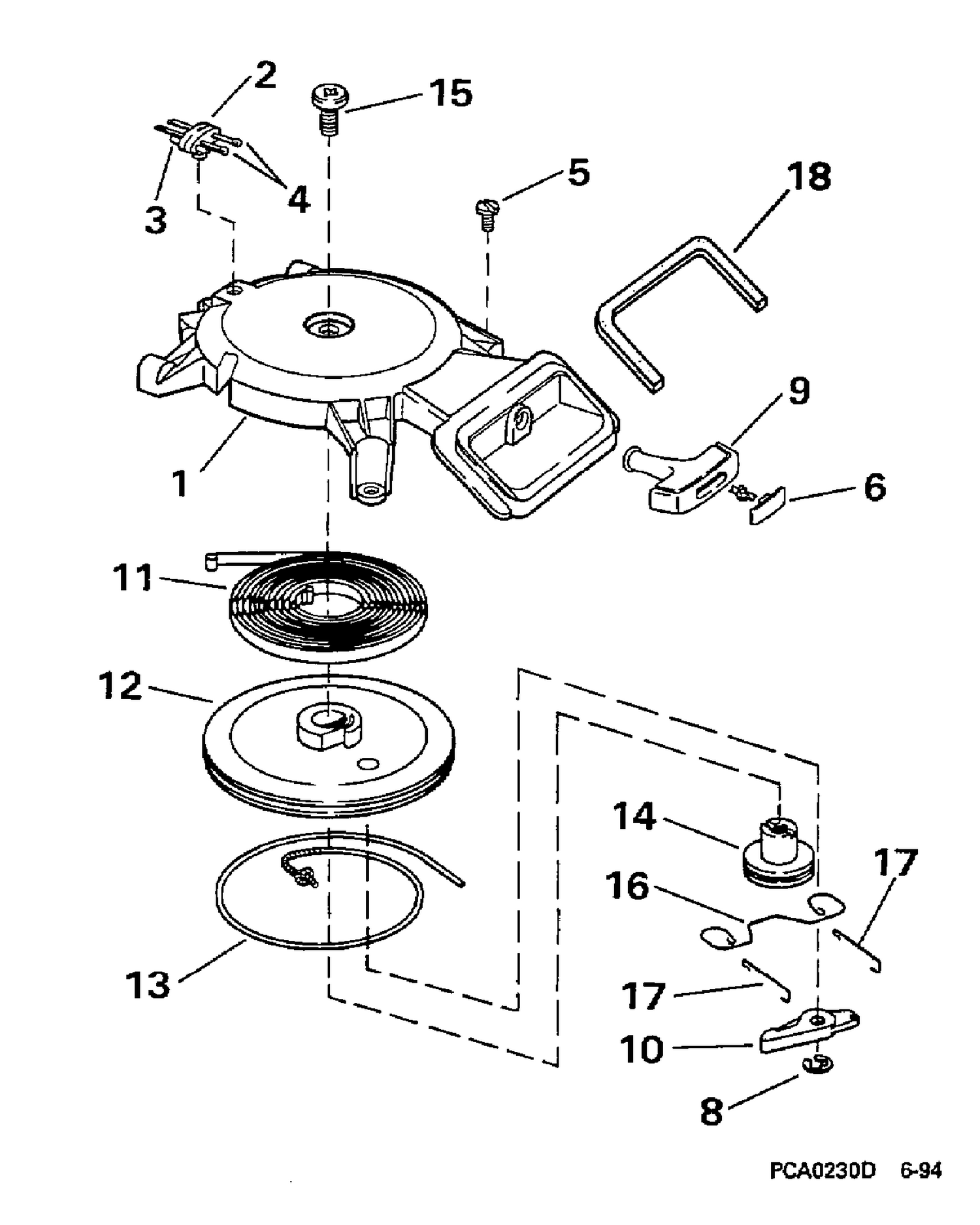

REWIND STARTER

REWIND STARTER

Parts (9)

RefPart NumberDescription
1 0438646 HOUSING & EYELET ASSY., Starter
2 0333799 HOLDER, Spare parts
3 0336221 DRIVE PIN, Propeller
4 0313693 COTTER PIN
9 0331361 HANDLE
11 0326877 SPRING, Starter
12 0396854 PULLEY & PIN ASSY.
16 0331970 FRICTION SPRING
17 0203700 LINK SPRING TO PAWL
