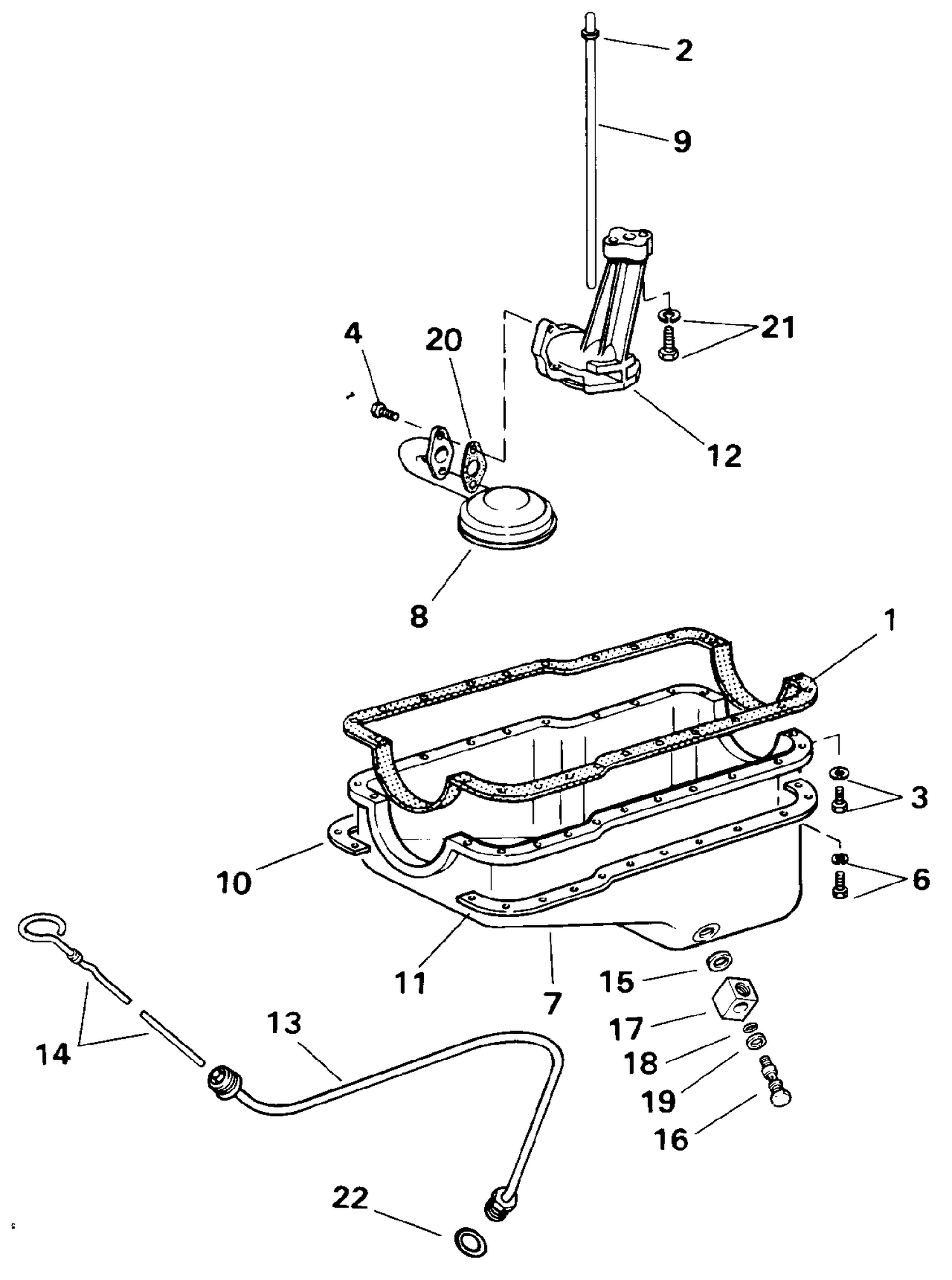

| Ref | Part Number | Description |
|---|
| 1 |
3852822 |
GASKET, Oil pan |
| 1 |
3852823 |
GASKET, Oil pan |
| 2 |
3853005 |
RETAINER, Oil pump shaft |
| 2 |
3853070 |
RETAINER, Oil pump shaft |
| 3 |
3853006 |
SCREW, Oil pan |
| 4 |
3853032 |
SCREW, Pickup tube |
| 6 |
3853033 |
SCREW, Oil pan |
| 7 |
3853797 |
OIL PAN |
| 7 |
3853798 |
OIL PAN |
| 8 |
3853069 |
SCREEN, Oil pump |
| 8 |
3853104 |
OIL PICKUP TUBE |
| 9 |
3853068 |
SHAFT, Oil pump |
| 9 |
3853105 |
SHAFT, Oil pump |
| 10 |
3853071 |
REINFORCEMENT, Oil pan, stbd. |
| 10 |
3853106 |
REINFORCEMENT, Oil pan, stbd. |
| 11 |
3853072 |
REINFORCEMENT, Oil pan, port |
| 11 |
3853107 |
REINFORCEMENT, Oil pan, port |
| 12 |
3853908 |
OIL PUMP ASSY. |
| 12 |
3853909 |
OIL PUMP ASSY. |
| 13 |
3854145 |
TUBE, Oil drain |
| 13 |
3854170 |
TUBE, Oil drain |
| 14 |
3850473 |
GAUGE, Oil level |
| 14 |
3850474 |
GAUGE, Oil level |
| 15 |
3851981 |
GASKET, Fitting to oil pan This part replaces 3853469. |
| 15 |
3853725 |
SCREW, Retainer, stbd. rear |
| 16 |
3852609 |
RETAINER, Oil drain |
| 16 |
3852694 |
RETAINER, Oil drain |
| 17 |
3855112 |
FITTING, Oil drain This part replaces 3853664. |
| 18 |
3853674 |
O-RING, Oil drain |
| 20 |
3853267 |
GASKET, Oil screen |
| 21 |
3852788 |
BOLT, Oil pump to block |
| 3853034 |
3853034 |
PLUG, Oil indicator hole |
