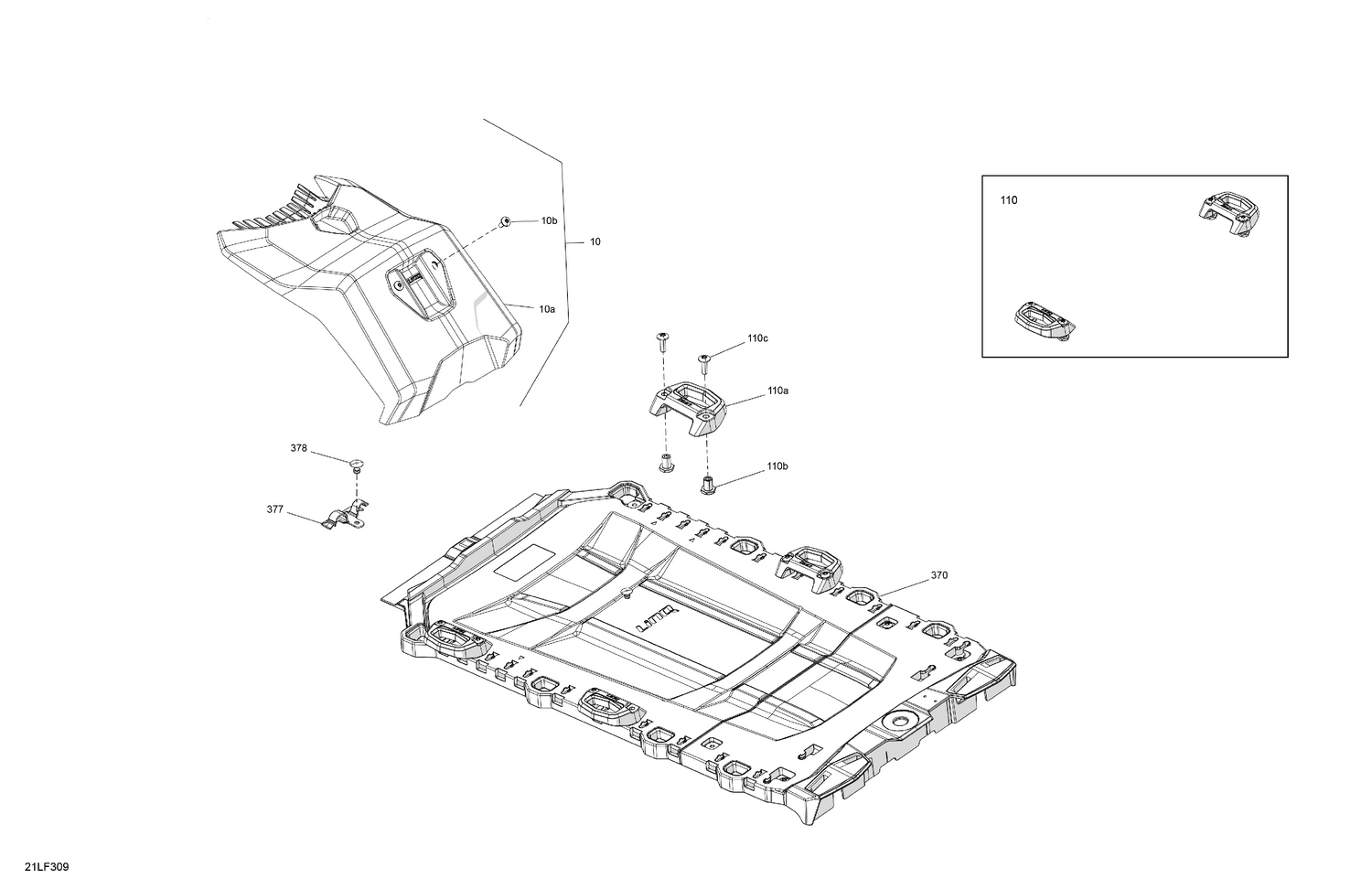

07- Body - Cargo

07- Body - Cargo

Parts (7)

RefPart NumberDescription
10a 511001053 Battery Cover
10b 250001005 Torx Screw M6 X 16
110a XXX Not Available As Spare Parts
110b 511000822 Insert
110c 250000446 Torx Screw M6 X 20, Scotch Grip
370 511001846 Multi Purpose Plate
377 520001722 Cap
