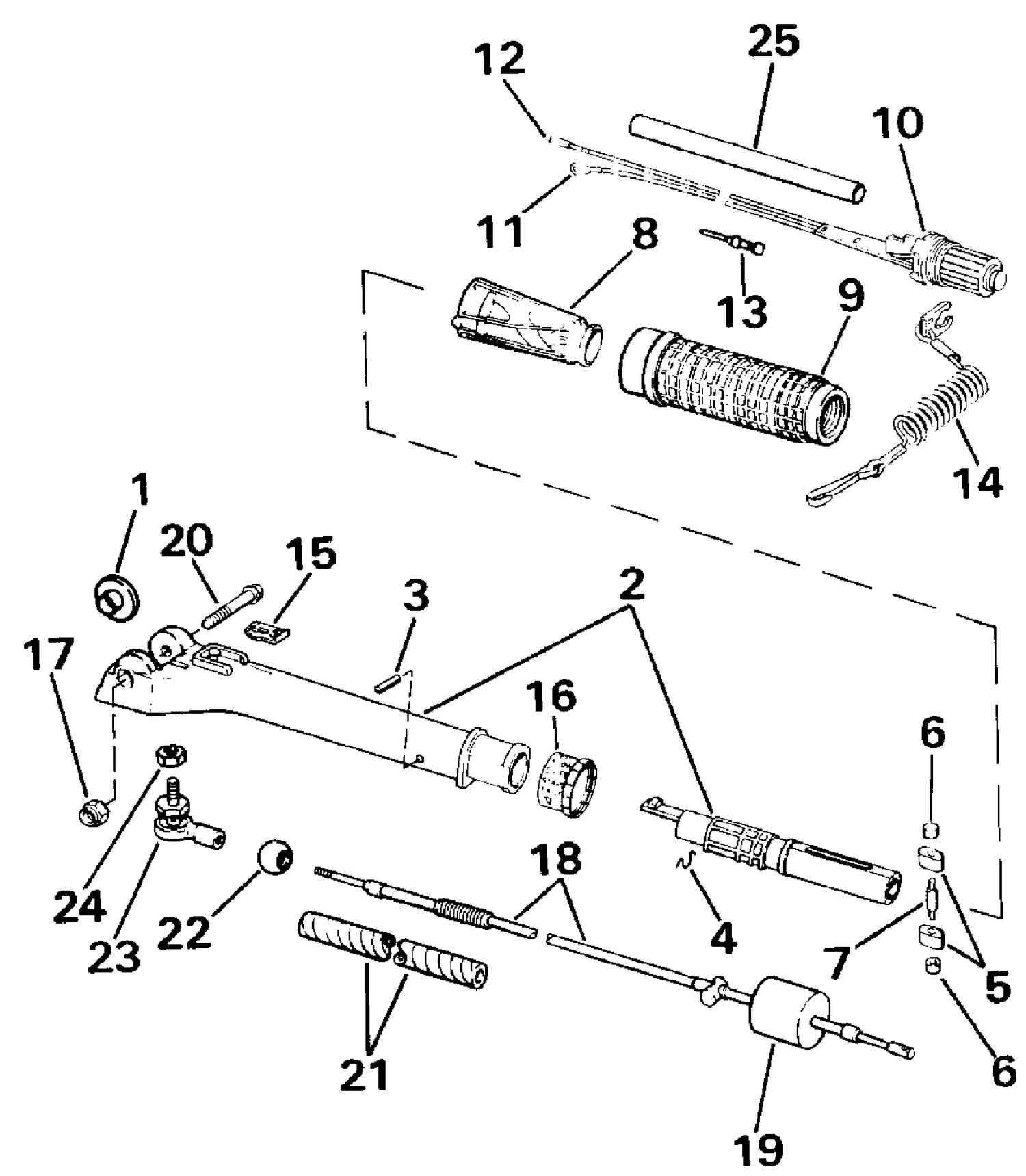

STEERING HANDLE
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0335426 | BUSHING, Handle to bracket This part replaces 0324594. |
| 1 | 0432043 | STEER. HANDLE AY., Comp. |
| 2 | 0439569 | STEERING HANDLE ASSY. This part replaces 0398737. |
| 8 | 0329882 | GRIP&HELIX AY |
| 9 | 0395240 | GRIP ASSY ., |
| 10 | 0398692 | IDLE STOP SWITCH ASSY. |
| 14 | 0431808 | CLIP & INST, SHEET ASSY. |
| 18 | 5000581 | THROTTLE CABLE Assy This part replaces 0396161. |
| 20 | 0324602 | VIS, barre |
| 22 | 0331194 | TRUNNION |
| 23 | 0396037 | BALL & SOCKET ASSY |
