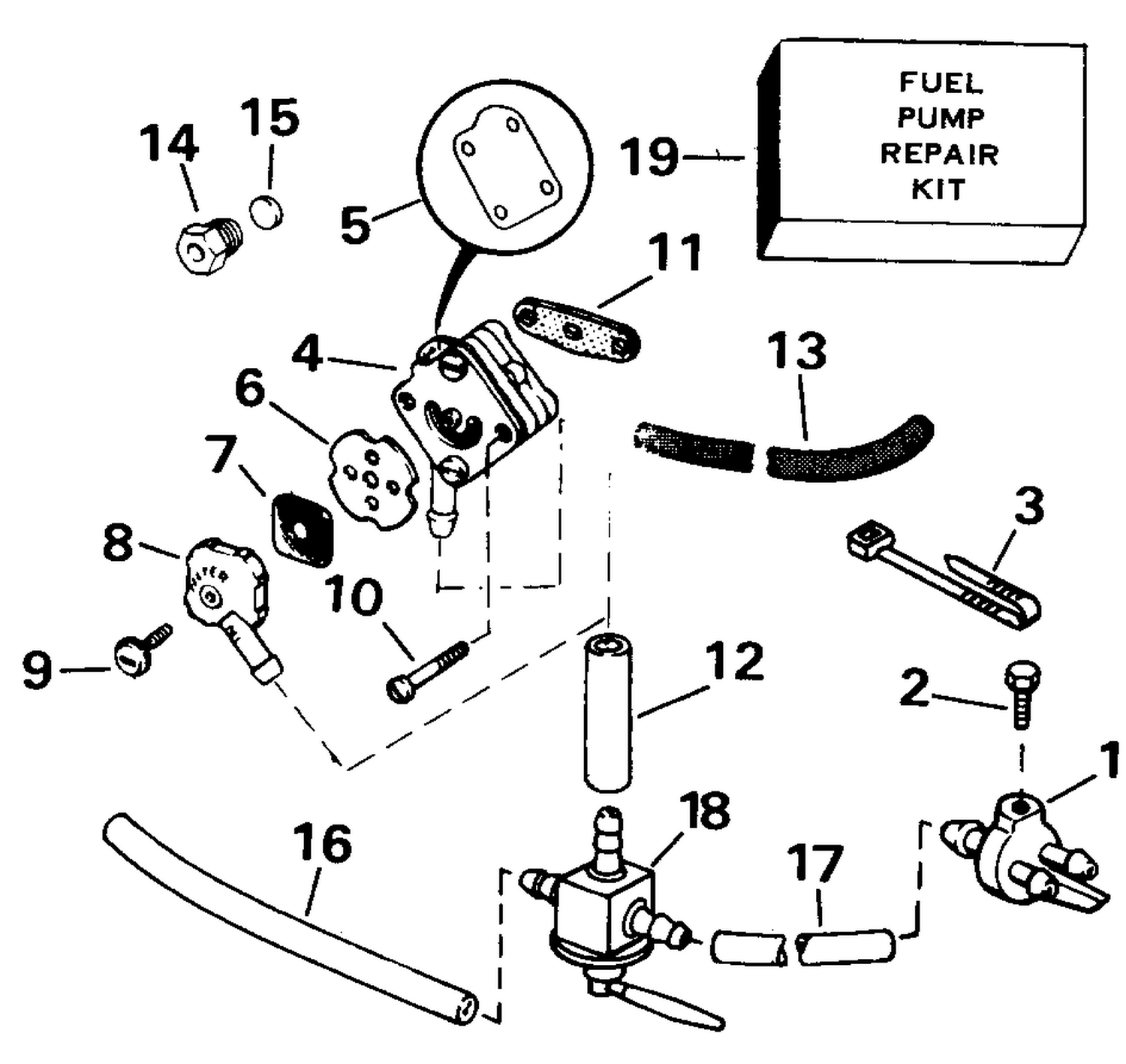

FUEL PUMP KIT - 3 & 4 MODELS ONLY
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0433900 | FUEL CONNECTOR |
| 3 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 4 | 0434521 | FUEL PUMP ASSEMBLY |
| 10 | 0330184 | VIS, montage pompe |
| 11 | 0303615 | GASKET |
| 12 | HOSE, | Valve to pump, 9 1/2 in. (241mm) |
| 13 | 0331526 | HOSE, Manifold to #1 carb. |
| 14 | 0326228 | PLUG, Float chamber |
| 15 | 0326230 | WASHER, Plug |
| 16 | 0337079 | HOSE, Fuel tank to valve |
| 17 | 0337078 | HOSE, Fuel connector to valve |
| 18 | 0434790 | VALVE, Fuel tank selector |
| 0434791 | 0434791 | FUEL PUMP KIT |
