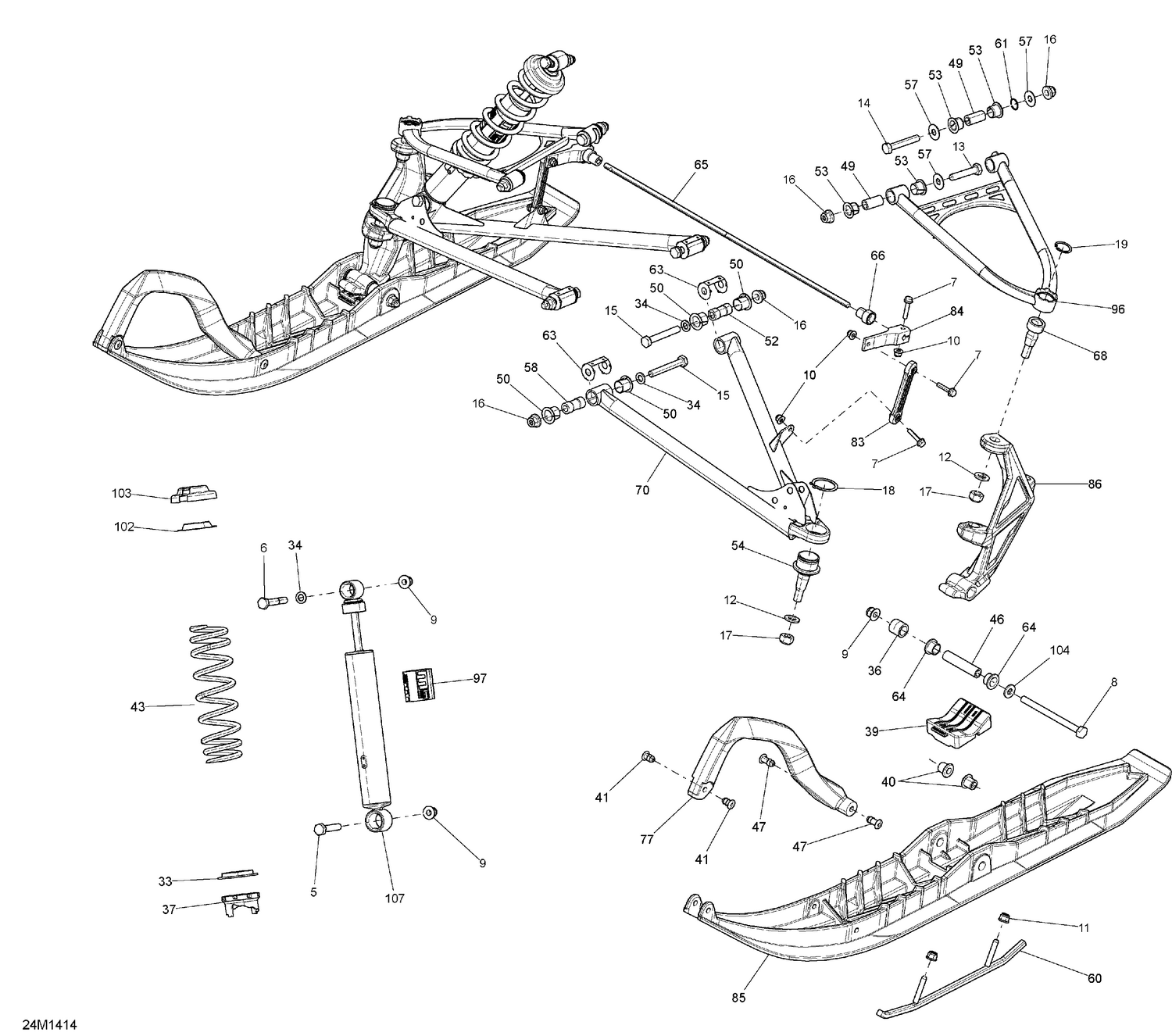

07- Front Suspension And Ski 800RPTEK
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 207005554 | Hex Screw M10 X 1.5 X 55 |
| 6 | 207006544 | Hex. Screw M10 X 1.5 X 65 |
| 7 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 8 | 250000703 | Hex. Screw M10 X 130 This part replaces 230003054. |
| 10 | 233261466 | Hex. Flange Elastic Nut M6 |
| 11 | 233281414 | Hex. Flange Elastic Nut M8 |
| 12 | 503192491 | Washer |
| 13 | 250001022 | Screw Hex. M10 X 50 This part replaces 250000289. |
| 14 | 250001023 | Screw Hex. M10 X 60 This part replaces 250000290. |
| 15 | 250001024 | Screw Hex. M10 X 70 This part replaces 250000291. |
| 16 | 250100165 | Hex. Flange Elastic Nut M10 |
| 17 | 232521464 | Hex Elastic Nut M12 X 1.25 |
| 18 | 293370035 | Circlip |
| 19 | 293370070 | Circlip |
| 33 | 503187500 | Spring Guide |
| 34 | 503189564 | Washer |
| 36 | 503193651 | Spacer |
| 37 | 505073625 | Adjustment Cam This part replaces 505070150. |
| 40 | 505071781 | Ski Bushing |
| 41 | 505071812 | Retainer 17mm long |
| 43 | 505072763 | Black, Spring |
| 46 | 506133300 | Spacer |
| 47 | 505072133 | Retainer 23mm Long |
| 49 | 505072143 | Sleeve |
| 50 | 505072208 | Bushing |
| 53 | 505072250 | Bushing |
| 54 | 505073636 | Ball Joint This part replaces 505072682. |
| 57 | 505072392 | Washer |
| 58 | 505072209 | Sleeve This part replaces 505072393. |
| 60 | 860201044 | Carbide Runner Kit (Square Runner) |
| 61 | 505072448 | O-Ring |
| 63 | 505072634 | Wear Plate |
| 64 | 505072690 | Leg Bushing |
| 65 | 505072785 | STABILISATOR - Call your local BRP dealership |
| 66 | 505072786 | Bushing |
| 68 | 505072913 | Upper Ball Joint |
| 70 | 505073039 | Black, LH Lower Arm |
| 70 | 505073040 | Black, Lower Arm RH |
| 77 | 505072976 | Black, Handle |
| 83 | 505073172 | Double Ball Joint Link |
| 84 | 505073176 | Stabilisator Lever |
| 85 | 505073227 | Black, Ski This part replaces 505073281. |
| 86 | 505073557 | Clear, LH Ski Leg |
| 86 | 505073558 | Clear, RH Ski Leg |
| 96 | 505073466 | Black Upper Arm LH 36" |
| 96 | 505073467 | Black Upper Arm RH 36" |
| 97 | 516005535 | Shock Decal "Mc" |
| 102 | 706200785 | Cap |
| 103 | 706200881 | Spring Stopper |
