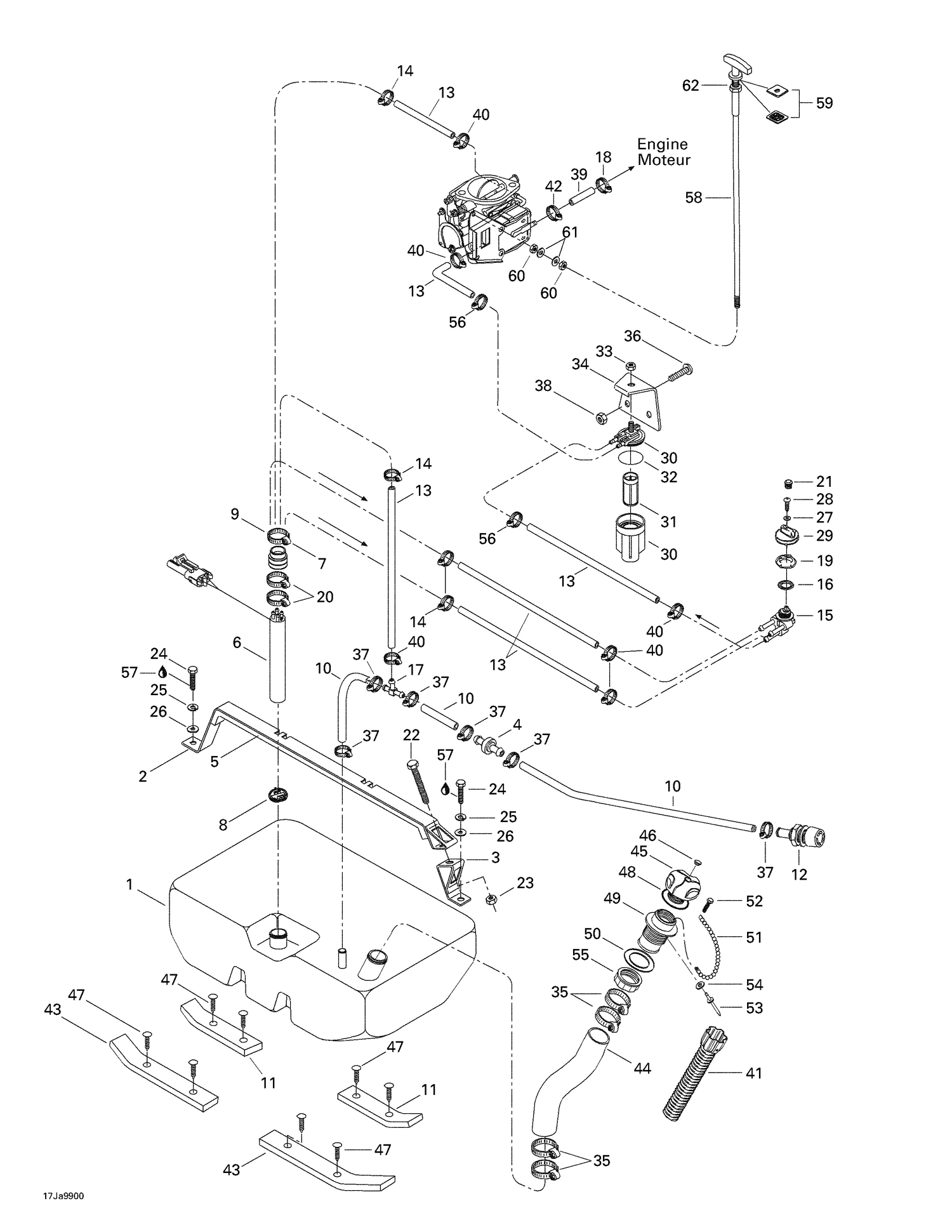

| Ref | Part Number | Description |
|---|
| 1 |
204560044 |
Fuel Tank (Plastic) |
| 2 |
275500199 |
Tank Bracket |
| 3 |
275500202 |
Strap Bracket |
| 4 |
204560101 |
VENT FUEL SURGE PROTECTOR - Call your local BRP dealership |
| 5 |
204560029 |
Protector Pad |
| 7 |
204560066 |
Fuel Tube Adaptor |
| 8 |
275500249 |
Fuel Filter |
| 9 |
293650077 |
Norma Clamp This part replaces 293650078. |
| 10 |
204560358 |
HOSE 16 MM - Call your local BRP dealership This part replaces 275500205. |
| 11 |
293830020 |
Rubber Pad 330 mm |
| 12 |
275500206 |
VENT BOAT - Call your local BRP dealership |
| 13 |
204560099 |
Hose 6 mm (Meter) |
| 14 |
293650059 |
Clic Clamp |
| 15 |
275500098 |
Fuel Valve |
| 16 |
293250004 |
GASKET - Call your local BRP dealership |
| 17 |
204560038 |
T-Fitting |
| 18 |
293650170 |
Tridon Gear Clamp This part replaces 293650038. |
| 19 |
212100009 |
HEX. PLASTIC NUT - Call your local BRP dealership |
| 20 |
293650081 |
Norma Clamp |
| 21 |
275500241 |
Black, Cap |
| 22 |
207185560 |
HEX. SCREW M8 X 55 - Call your local BRP dealership |
| 23 |
232581600 |
Hex. Elastic Nut M8 |
| 24 |
207183060 |
Hex. Screw M8 X 30 |
| 25 |
234181601 |
Lock Washer 8 mm, Stainless |
| 26 |
234082600 |
Flat Washer 8 mm, Stainless |
| 27 |
234040600 |
Flat Washer 4 mm |
| 28 |
208640860 |
PHILLIPS SCREW M4 X 8 - Call your local BRP dealership |
| 29 |
275500263 |
FUEL VALVE KNOB, BLACK - Call your local BRP dealership |
| 31 |
275500089 |
FUEL FILTER - Call your local BRP dealership |
| 32 |
275500090 |
O-Ring |
| 33 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 34 |
204560007 |
Fuel Filter Support |
| 35 |
293650081 |
Norma Clamp |
| 36 |
208462060 |
PHILLIPS SCREW M6 X 20 - Call your local BRP dealership |
| 37 |
293650069 |
NORMA CLAMP - Call your local BRP dealership |
| 38 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 39 |
219704396 |
HOSE-6MM. 5000MM LONG - Call your local BRP dealership |
| 40 |
293650060 |
Caillau Clic Clamp |
| 41 |
275500757 |
FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067. |
| 42 |
293650042 |
Oetiker Clamp |
| 43 |
293830021 |
Rubber Pad |
| 44 |
275500259 |
Filler Neck Hose |
| 46 |
293000034 |
Black, Snap Cap |
| 47 |
293730006 |
Black, Dart |
| 48 |
293250017 |
Gasket |
| 49 |
275500247 |
Filler Neck |
| 50 |
293250029 |
Gasket |
| 51 |
275500015 |
Oil Cap Chain |
| 52 |
241140060 |
Screw K40 X 10 |
| 53 |
293150057 |
Rivet 1/8” |
| 54 |
234032600 |
Flat Washer M3, Stainless |
| 55 |
211100012 |
Filler Neck Nut, Fuel |
| 56 |
293650057 |
Clic Clamp |
| 57 |
293800005 |
Loctite 271, 10 ml |
| 59 |
291000457 |
Choke Plate |
| 60 |
232160600 |
Hex. Nut M6 |
| 61 |
234061600 |
Stainless Flat Washer M6 |
| 204560017 |
Aluminum |
Fuel Tank 204560017 |
