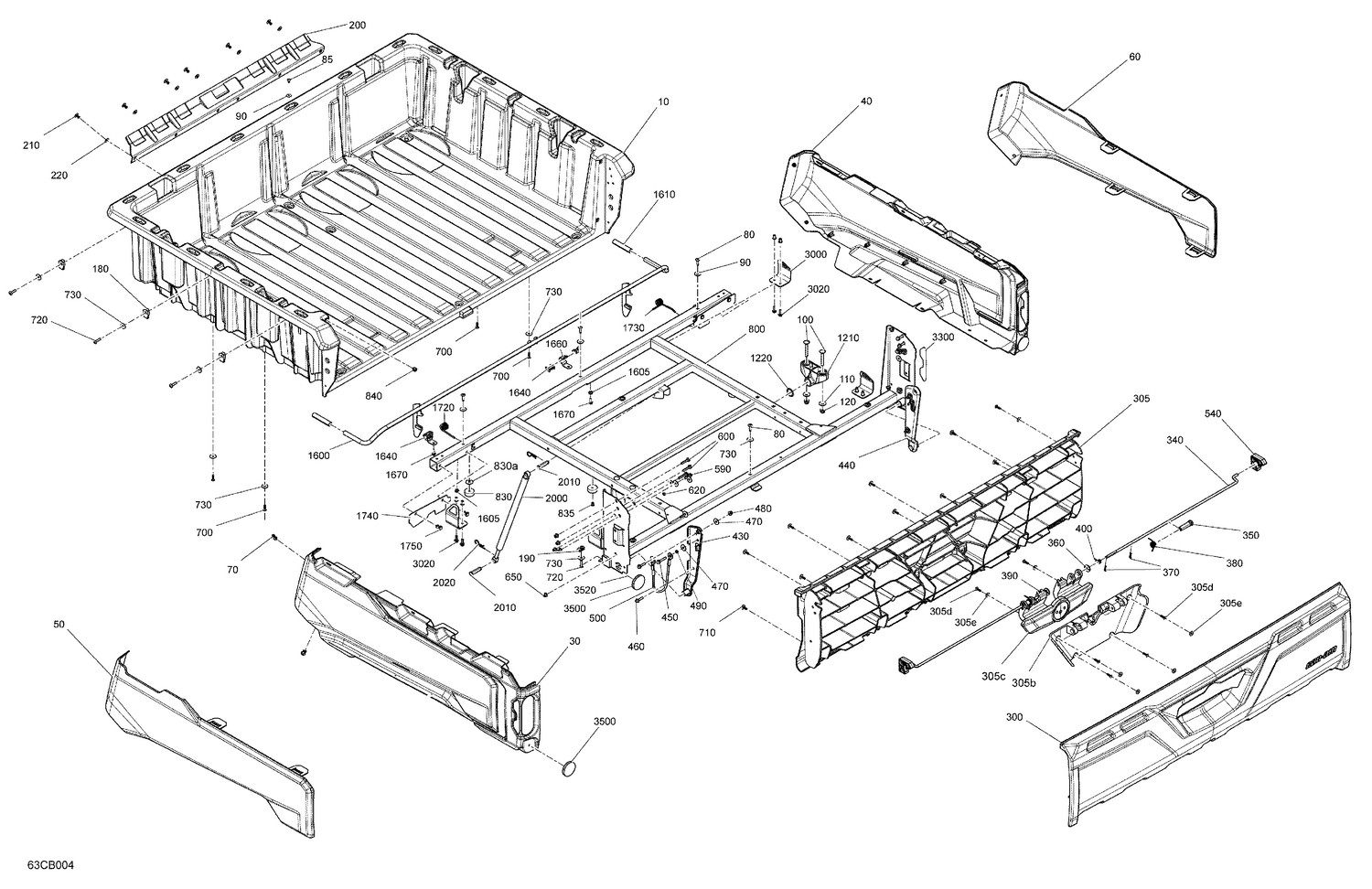

07- Body - Cargo
Parts (67)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 708303083 | Open Carrier |
| 30 | 708304328 | LH Panel Exterior This part replaces 708302578. |
| 40 | 708302579 | RH Panel |
| 50 | 708303597 | Hyper Silver, LH Open Carrier Trim |
| 60 | 708303607 | Hyper Silver, RH Open Carrier Trim |
| 70 | 293150230 | Tuflok Plastic Rivet |
| 80 | 250000728 | Torx Screw M6 X 25 |
| 85 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 90 | 250200162 | Flat Washer M6.6 X 22 |
| 100 | 207786044 | Carriage Bolt M8 X 60 |
| 110 | 234082410 | Flat Washer 8 mm |
| 120 | 233281414 | Hex. Flange Elastic Nut M8 |
| 180 | 250100224 | Panel Nut M6 X 1.0 |
| 190 | 250100198 | Panel Nut M6 X 1.0 |
| 200 | 708302584 | Deflector This part replaces 708304041. |
| 210 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 220 | 517124300 | Washer |
| 300 | 708301227 | Outside Tailgate This part replaces 708304362. |
| 305b | 708302913 | Handle Support |
| 305c | 708302911 | Handle |
| 305d | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 305e | 250200025 | Washer M5 |
| 340 | 708301500 | Handle Rod |
| 350 | 708304564 | Bushing Hinge This part replaces 708301634. |
| 360 | 708301653 | Washer |
| 370 | 269800431 | Hairpin Cotter |
| 380 | 705009468 | Spring |
| 390 | 705009470 | Spring |
| 400 | 705009471 | Spring |
| 450 | 207663554 | Hex. Flange Screw M6 X 35 |
| 460 | 207662554 | Hex. Flange Screw M6 X 25 |
| 470 | 250200162 | Flat Washer M6.6 X 22 |
| 480 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 490 | 708300737 | Bushing |
| 500 | 708301491 | Cable |
| 540 | 708304062 | Latch Stopper |
| 590 | 207662554 | Hex. Flange Screw M6 X 25 |
| 600 | 207663554 | Hex. Flange Screw M6 X 35 |
| 620 | 708300737 | Bushing |
| 650 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 700 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 710 | 250200025 | Washer M5 |
| 720 | 250000807 | Torx Truss Screw M6 X 25 |
| 730 | 250200162 | Flat Washer M6.6 X 22 |
| 800 | 703501165 | Open Carrier Frame This part replaces 708303706. |
| 830a | 224060251 | Washer |
| 835 | 293150104 | Pop Rivet 3/16" |
| 840 | 293830005 | Rubber Bumper |
| 1210 | 708303735 | Support Pivot |
| 1220 | 293300131 | O-Ring |
| 1600 | 708303712 | Latch Lever |
| 1605 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 1610 | 708300358 | Cap Latch Lever |
| 1640 | 705500033 | Half Ring |
| 1660 | 708301479 | Clamp Retainer |
| 1670 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 1720 | 708303190 | LH Torsion Spring |
| 1730 | 708303191 | RH Torsion Spring |
| 1740 | 708303097 | Deflector |
| 1750 | 293150230 | Tuflok Plastic Rivet |
| 2000 | 715007129 | Gas Shock Absorber |
| 2010 | 250400098 | Pin Clevis |
| 2020 | 414575600 | Hair Pin |
| 3000 | 708301480 | Retaining Plate |
| 3020 | 207662054 | Hex. Flange Screw M6 X 20 |
| 3300 | 704905074 | Reflector |
| 3500 | 705011221 | Red Reflector |
