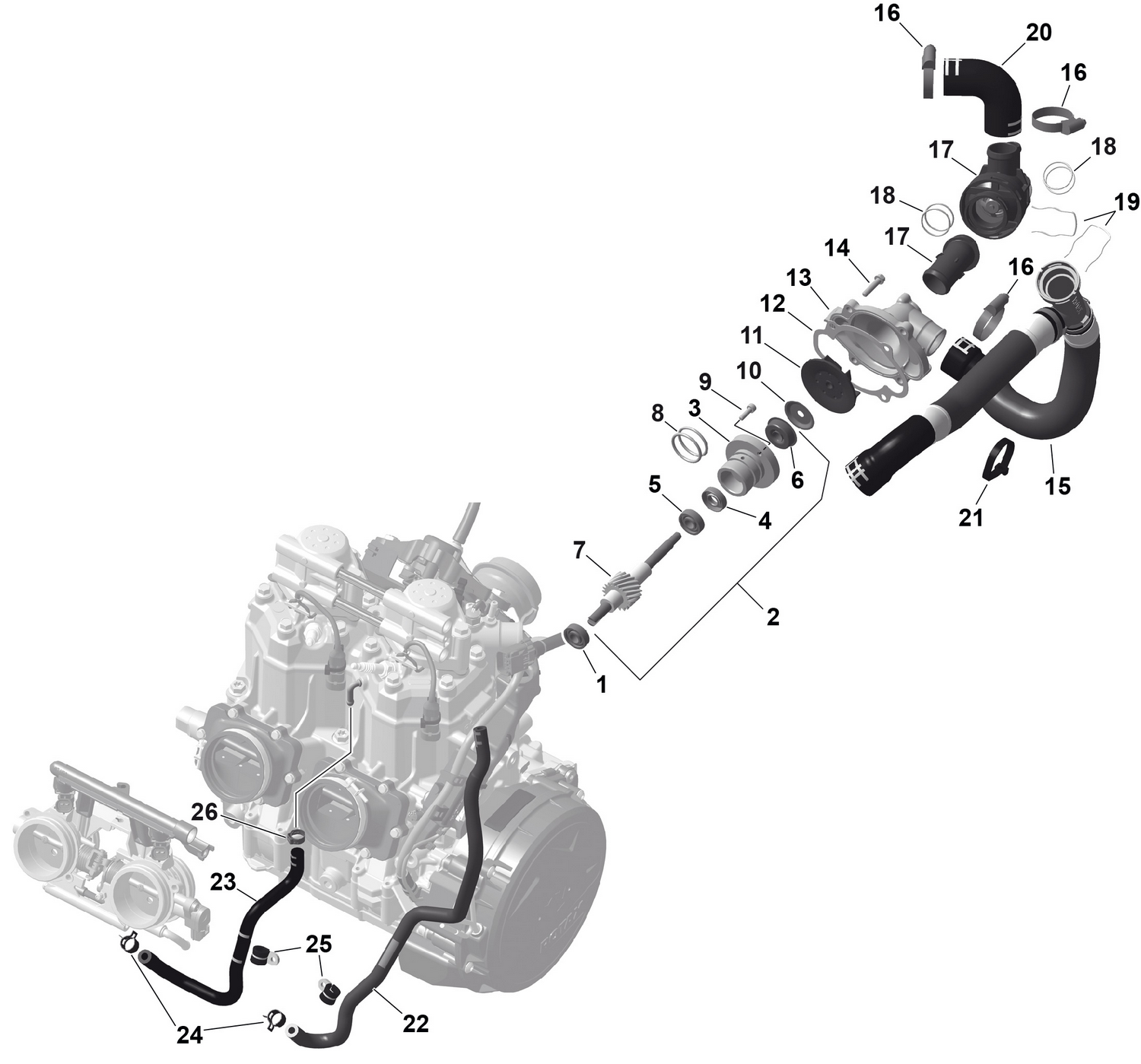

01- ROTAX - Engine Cooling
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420232100 | Ball Bearing |
| 3 | 420847933 | Step Collar |
| 5 | 420232100 | Ball Bearing |
| 7 | 420837681 | Water Pump Shaft |
| 9 | 420840514 | Allen Screw M5 x 16 |
| 10 | 420944035 | Cover Washer |
| 11 | 420922808 | Impeller |
| 13 | 420822286 | Waterpump Housing |
| 14 | 420440234 | Torx Flange Screw M6 X 25 |
| 15 | 420822805 | Molded Hose |
| 16 | 420951120 | Clamp 26-38MM |
| 19 | 420939344 | Spring Clip |
| 20 | 420822820 | Return Hose |
| 21 | 420651817 | Locking Tie 175 X 4 MM |
| 22 | 420201519 | Formed Hose |
| 23 | 420201512 | Molded Hose |
| 24 | 420853511 | Clamp |
| 25 | 420851250 | Clamp |
