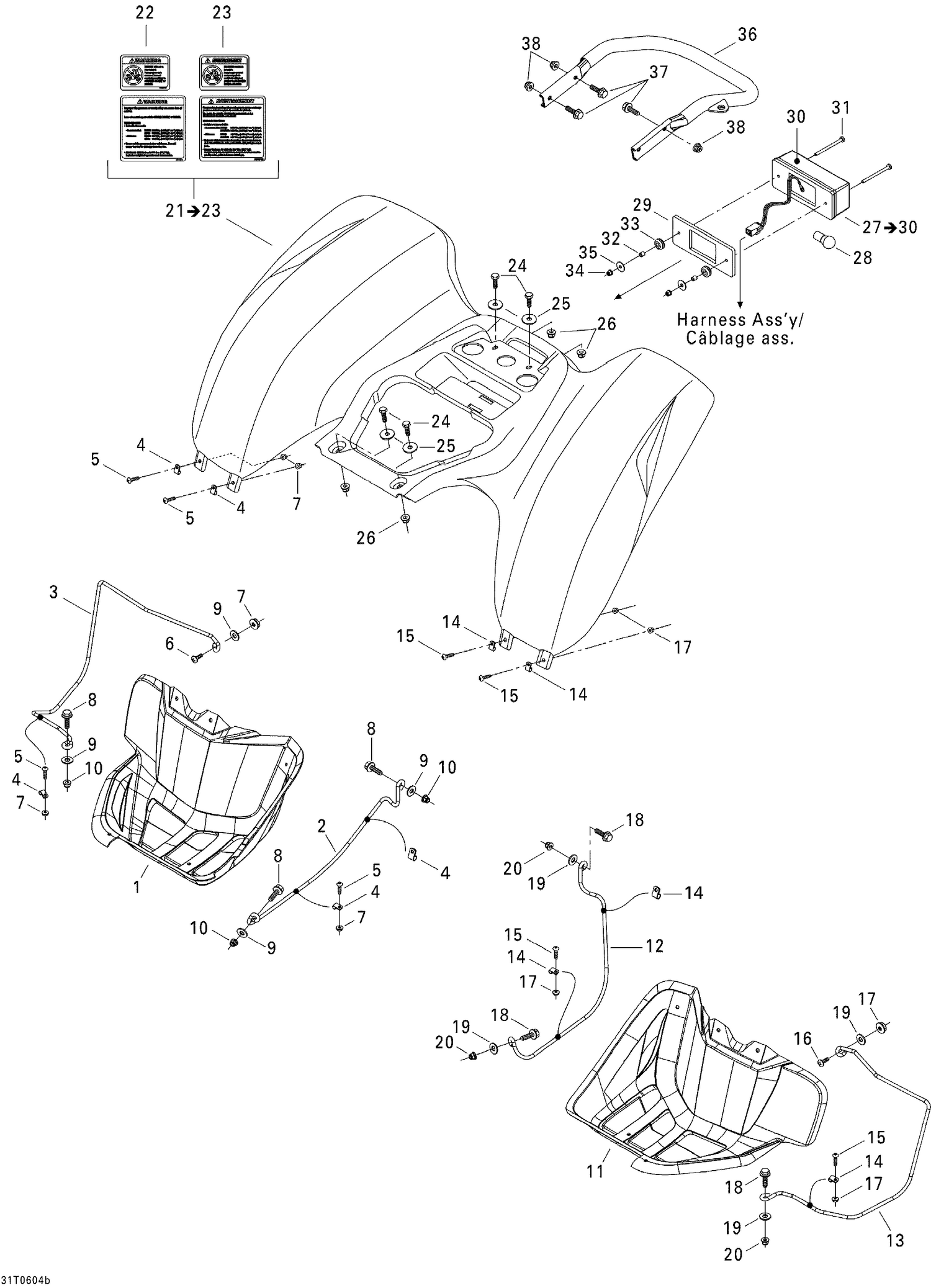

| Ref | Part Number | Description |
|---|
| 1 |
705000301 |
RH FOOT PROTECTOR - Call your local BRP dealership |
| 2 |
705000639 |
RH FOOT PROTECTOR SUPPORT, INTERIOR - Call your local BRP dealership |
| 3 |
705000117 |
RH FOOT PROTECTOR SUPPORT, EXTERIOR - Call your local BRP dealership |
| 4 |
293650150 |
Gear Clamp |
| 5 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 6 |
250000032 |
PHILLIPS SCREW M6 X 30 - Call your local BRP dealership |
| 7 |
232561414 |
Elastic Stop Nut M6 |
| 8 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 9 |
224061201 |
Flat Washer |
| 10 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 11 |
705000302 |
LH FOOT PROTECTOR - Call your local BRP dealership |
| 12 |
705000642 |
LH FOOT PROTECTOR SUPPORT, INTERIOR - Call your local BRP dealership |
| 13 |
705000120 |
LH FOOT PROTECTOR SUPPORT, EXTERIOR - Call your local BRP dealership |
| 14 |
293650150 |
Gear Clamp |
| 15 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 16 |
250000032 |
PHILLIPS SCREW M6 X 30 - Call your local BRP dealership |
| 17 |
232561414 |
Elastic Stop Nut M6 |
| 18 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 19 |
224061201 |
Flat Washer |
| 20 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 24 |
207161844 |
Hex. Screw M6 X 18 |
| 25 |
224061201 |
Flat Washer |
| 26 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 28 |
520000758 |
Bulb This part replaces 410504100. |
| 29 |
710000129 |
GASKET - Call your local BRP dealership |
| 30 |
710000055 |
TAIL LIGHT LENS, RED - Call your local BRP dealership |
| 31 |
208657041 |
PHILLIPS SCREW M5 X 70 - Call your local BRP dealership |
| 32 |
293900112 |
Bushing This part replaces 517245900. |
| 33 |
414036300 |
Grommet |
| 34 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 35 |
224060201 |
Flat Washer |
| 36 |
705000143 |
Rear Bumper |
| 37 |
207682044 |
Hex. Flange Screw M8 X 20 |
