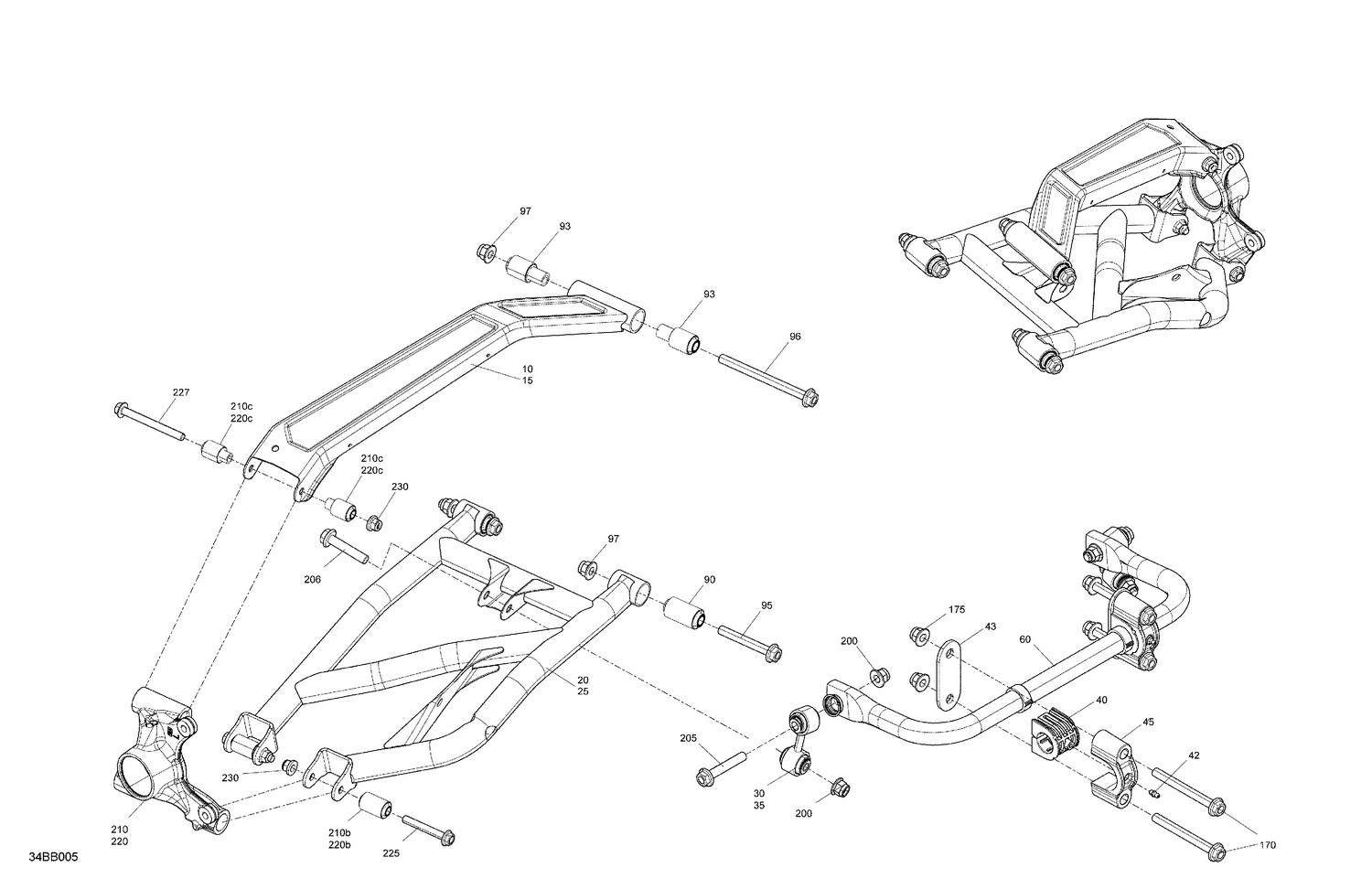

05- Suspension - Rear Components
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 706003717 | Magma Red, LH Upper Suspension Arm |
| 15 | 706003718 | Magma Red, RH Upper Suspension Arm |
| 20 | 706004455 | Magma Red, LH Lower Suspension Arm |
| 25 | 706004456 | Magma Red, RH Lower Suspension Arm |
| 30 | 706003004 | Sway Bar Double Link |
| 35 | 706003003 | Sway Bar Double Link |
| 40 | 706004266 | Stabilizer Bar Bushing |
| 42 | 408200700 | Grease Fitting |
| 43 | 706002977 | Plate Support |
| 45 | 706002970 | Clamp |
| 60 | 706003475 | Sway Bar Ass'y |
| 90 | 706004828 | Suspension Arm Bushing |
| 93 | 706004829 | Suspension Arm Bushing |
| 95 | 250001168 | Hex. Flange Screw M12X1.75X85 |
| 96 | 250001167 | Screw Hex Flange DIN.6921 M12X1.75X |
| 97 | 250001195 | Elastic Flange Nut M12 |
| 170 | 250000860 | Screw Flange M12 X 115 |
| 175 | 250001195 | Elastic Flange Nut M12 |
| 200 | 250001195 | Elastic Flange Nut M12 |
| 205 | 250000858 | Hex. Flange Screw M12 X 70 |
| 206 | 250000857 | Flange Screw M12 X 60 |
| 210b | XXX | Not Available As Spare Parts |
| 210c | XXX | Not Available As Spare Parts |
| 220b | XXX | Not Available As Spare Parts |
| 220c | XXX | Not Available As Spare Parts |
| 225 | 207507046 | Hex. Screw M10 X 70, Scotch Grip |
| 227 | 230500046 | Hex. Screw M10 X 100, Scotch Grip |
