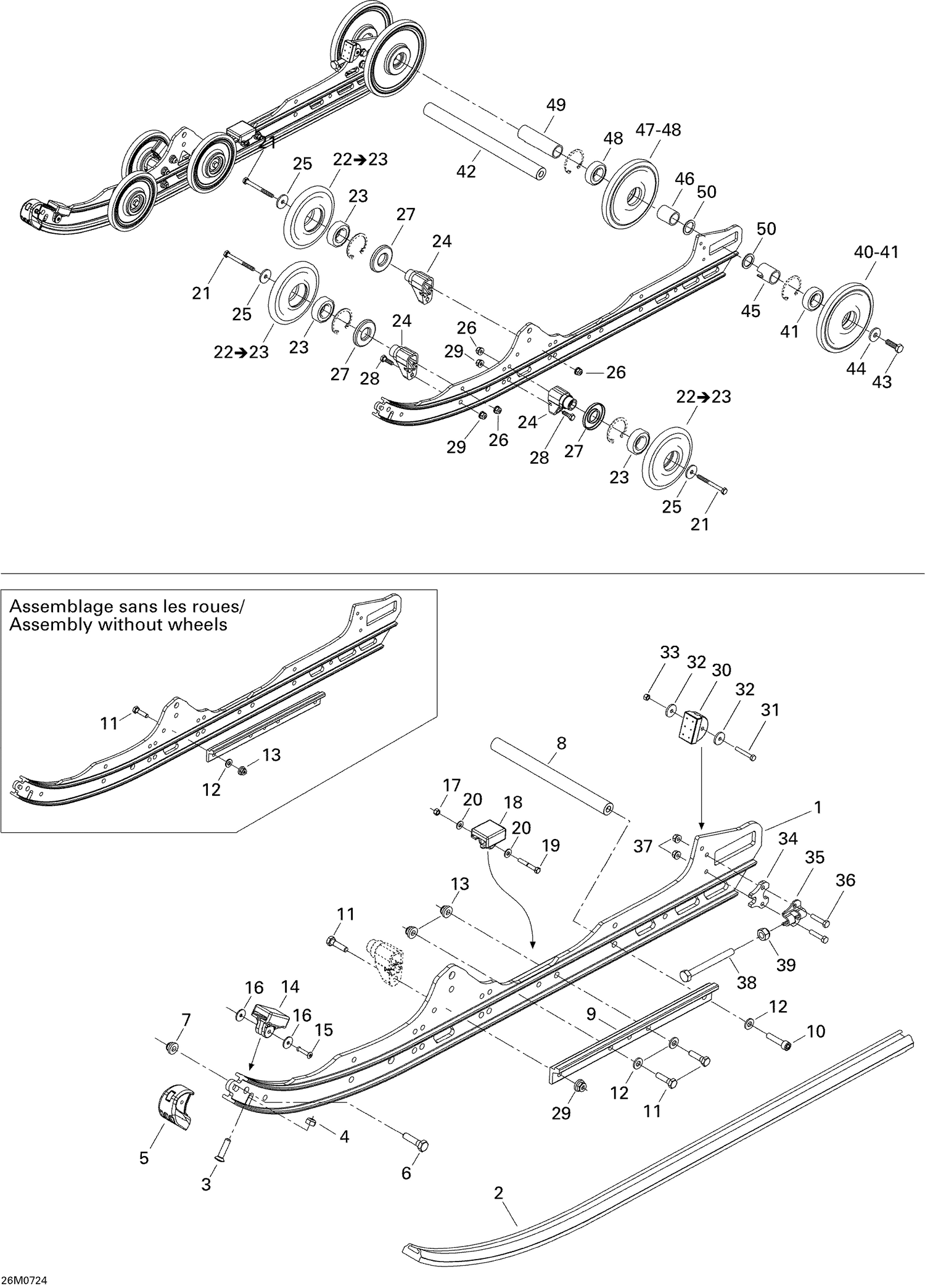

08- Rear Suspension
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503191224 | RUNNER 121 - Call your local BRP dealership |
| 2 | 503190629 | Slider Shoe |
| 3 | 208562560 | Phillips Screw M6 X 25 |
| 4 | 232561414 | Elastic Stop Nut M6 |
| 5 | 503191137 | Runner Protector |
| 6 | 207652544 | Hex. Flange Screw M5 X 25 |
| 7 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 8 | 503151600 | Axle |
| 9 | 503191366 | RAIL REINFORCEMENT - Call your local BRP dealership |
| 10 | 205583544 | Socket Head Screw M8 X 35, Scotch Grip |
| 11 | 207083544 | Hex. Screw M8 X 35 |
| 12 | 503189157 | Washer |
| 13 | 233281414 | Hex. Flange Elastic Nut M8 |
| 14 | 503190576 | Rubber Stopper |
| 15 | 207053044 | Hex. Screw M5 X 30 |
| 16 | 250200016 | Washer |
| 17 | 232551414 | Elastic Stop Nut M5 |
| 18 | 503190741 | RAIL STOPPER MIDDLE, FREERIDE - Call your local BRP dealership |
| 19 | 207053544 | Hex. Screw M5 X 35 |
| 20 | 250200081 | FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 21 | 207087544 | HEX. SCREW M8 X 75 - Call your local BRP dealership |
| 23 | 503190396 | Ball Bearing |
| 24 | 503190580 | Support |
| 25 | 211200041 | Washer |
| 26 | 233281414 | Hex. Flange Elastic Nut M8 |
| 27 | 503190434 | Labyrinth Seal |
| 28 | 207182544 | Hex. Screw M8 X 25 |
| 29 | 233281414 | Hex. Flange Elastic Nut M8 |
| 30 | 503191291 | Rubber Stopper This part replaces 503189608. |
| 31 | 207053044 | Hex. Screw M5 X 30 |
| 32 | 250200016 | Washer |
| 33 | 232551414 | Elastic Stop Nut M5 |
| 34 | 503193250 | Spacer This part replaces 503190379. |
| 35 | 503192583 | Tensioner This part replaces 503190380. |
| 36 | 207063044 | Hex. Screw M6 X 30 |
| 37 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 38 | 230100044 | HEX. SCREW M10 X 100 - Call your local BRP dealership |
| 39 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 40 | 503190799 | Wheel 180 |
| 41 | 293350115 | Ball Bearing This part replaces 503190795. |
| 42 | 503167900 | Rear Axle |
| 43 | 250000019 | Hex. Screw With Nylon |
| 44 | 503183300 | Washer |
| 45 | 503189809 | Outer Spacer |
| 46 | 503182900 | Inner Spacer |
| 48 | 293350115 | Ball Bearing This part replaces 503190795. |
