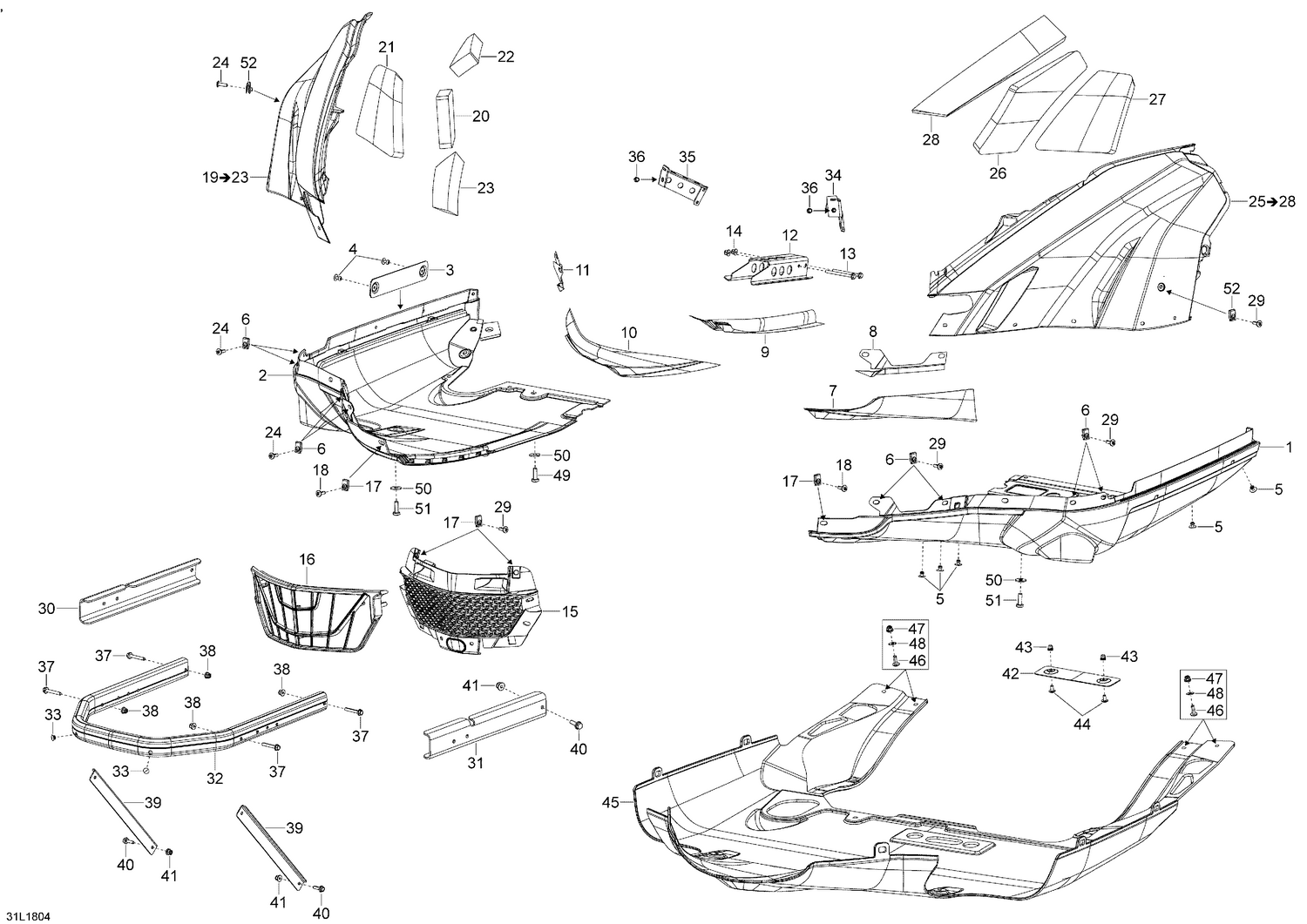

09- Bottom Pan 69 Yeti ARMY
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 502007836 | Bottom-pan Lower Lh. |
| 2 | 502007837 | Bottom-pan Lower Rh. |
| 3 | 502007255 | Heat Insulation Plate |
| 4 | 293150211 | Rivet |
| 5 | 293150104 | Pop Rivet 3/16 |
| 6 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250000048. |
| 7 | 508000918 | Heat Shield |
| 8 | 508000919 | Heat Shield |
| 9 | 508000920 | Heat Shield |
| 10 | 508000921 | Heat Shield |
| 11 | 508000922 | Heat Shield |
| 12 | 502007688 | Support |
| 13 | 207667056 | Hex. Flange Screw M6 x 70 |
| 14 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 15 | 502007140 | Front Grill |
| 17 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250000048. |
| 18 | 250000722 | Torx Truss Screw M6 x 20 |
| 20 | 502007133 | Insulator |
| 21 | 502007132 | Insulator |
| 23 | 502007009 | Isolation |
| 24 | 250000722 | Torx Truss Screw M6 x 20 |
| 26 | 502007088 | Insulator |
| 27 | 502007131 | Insulator |
| 28 | 502007185 | Insulator |
| 29 | 250000722 | Torx Truss Screw M6 x 20 |
| 30 | 502007379 | Bumper Support RH |
| 31 | 502007380 | Bumper Support LH |
| 32 | 502007450 | Bumper, Short Black |
| 33 | 293730047 | Black, Dart 8 mm |
| 34 | 502007535 | LH Bottom Pan Fastener |
| 35 | 502007536 | RH Bottom Pan Fastener |
| 36 | 605636003 | Clinch Nut M6 Hexsert |
| 37 | 207664044 | Hex. Flange Screw M6 X 40 |
| 38 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 39 | 502007382 | Bumper Support SWT |
| 40 | 207662044 | Hex. Flange Screw M6 X 20 |
| 41 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 42 | 518328879 | Oil Plate |
| 43 | 605636003 | Clinch Nut M6 Hexsert |
| 44 | 250000722 | Torx Truss Screw M6 x 20 |
| 45 | 502007511 | Skid Plate Xu Lts 69_16 |
| 46 | 250000807 | Torx Truss Screw M6 x 25 |
| 47 | 233261494 | Nut flanged elastic black zink |
| 48 | 20117 | Washer |
| 49 | 250000752 | Torx Screw M8 X 1.25 X 25, Scotch Grip |
| 50 | 234082410 | Flat Washer 8 mm |
| 51 | 250000722 | Torx Truss Screw M6 x 20 |
