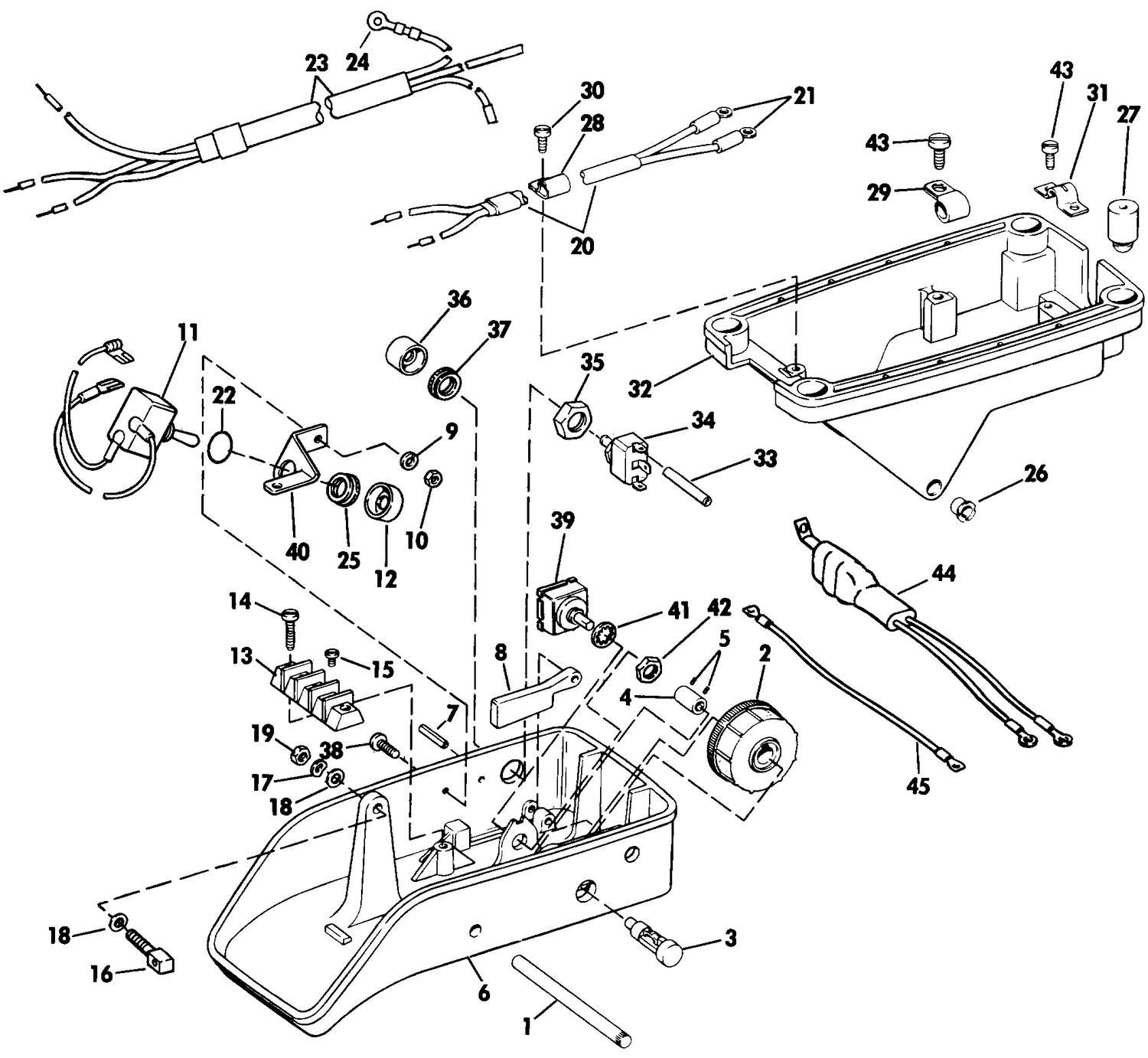

| Ref | Part Number | Description |
|---|
| 1 |
0319524 |
HINGE PIN, Pedal to base |
| 2 |
0330530 |
WHEEL, Speed control |
| 3 |
0333109 |
BEARING SHAFT, Control wheel This part replaces 0319526. |
| 4 |
0387145 |
COUPLIN ASSY.,24 v |
| 5 |
0302189 |
SET SCREW, Coupling |
| 6 |
0392325 |
PEDAL ASSY. |
| 7 |
0319527 |
ROLL PIN, Lever |
| 8 |
0319519 |
LEVER ON/OFF SWITCH |
| 9 |
0319618 |
LOCKWASHER, Switch mtg |
| 10 |
0302437 |
NUT |
| 11 |
0394624 |
ON/OFF SWITCH |
| 12 |
0324609 |
COVER, On/off switch |
| 13 |
0512352 |
TERMINAL BLOCK, PEDAL |
| 14 |
0319613 |
SCREW, Terminal block mounting |
| 15 |
0329182 |
VIS, borne |
| 16 |
0328210 |
PIVOT PIN, Cable to pedal |
| 18 |
0302474 |
WAHSER,Link |
| 20 |
0392254 |
CABLE ASSY., Batt., 12 v |
| 21 |
0512549 |
RING TERMINAL, NO. 10, 12 V |
| 23 |
0392522 |
CABLE ASSY., Batt., 12 v |
| 25 |
0324648 |
NUT, Switch to bracket |
| 26 |
0319518 |
BUSHING |
| 27 |
0319522 |
BUMPER, Base |
| 28 |
0317000 |
COLLIER, câble This part replaces 0318190. |
| 28 |
0333440 |
CLAMP, Battery cable This part replaces 0317755. |
| 29 |
0333440 |
CLAMP, Battery cable This part replaces 0317755. |
| 30 |
0319615 |
SCREW, Clamp |
| 31 |
0319668 |
CLAMP, Steering cable |
| 32 |
0328402 |
BASE, Foot control |
| 33 |
0511502 |
TUBING Switch terminal |
| 34 |
0392219 |
SPEED SELECTOR SWITCH |
| 38 |
0302227 |
SCREW, On off switch mtg |
| 39 |
0390644 |
ROTARY SWITCH |
| 40 |
0322219 |
BRACKET, Switch to pedal |
| 41 |
0320688 |
L WASHER, Potentiometer, 12v |
| 43 |
0319614 |
SCREW, Bar clamp |
| 44 |
0582861 |
ARC SUPPRESSION ASSY, 24 V |
