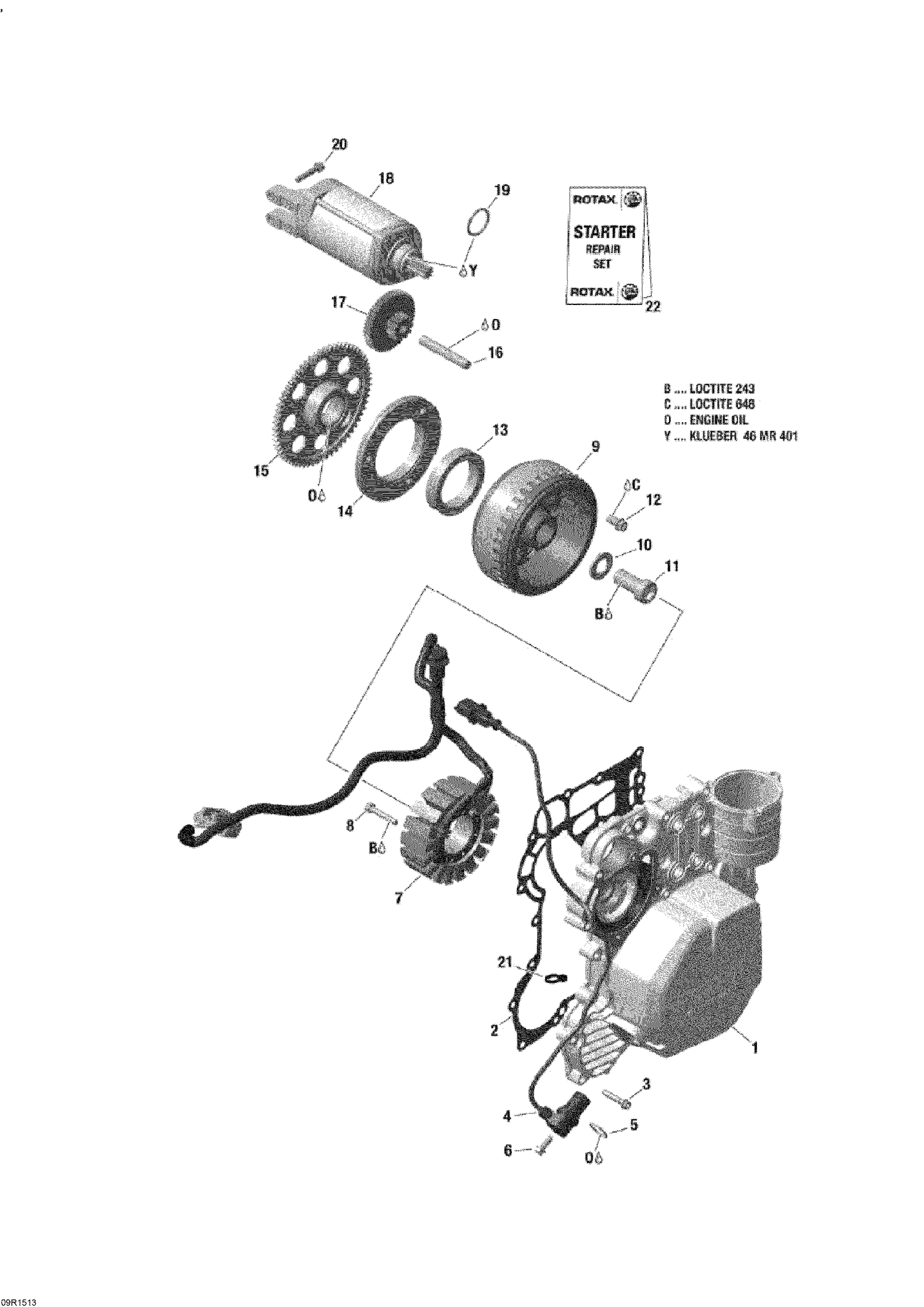

03- Magneto And Electric Starter
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10ml |
| C | 619600012 | Loctite 609, 50ml |
| O | Not | Available As Spare Part - Engine Oil |
| 1 | 420911052 | Ignition Cover |
| 7 | 420296908 | Stator Ass'y, 14V 420W |
| 9 | 420685700 | Mag. Flywheel With Trigger Wheel Ass'y |
| 10 | 420627270 | Shim A17 DIN 125 |
| 13 | 420659113 | Sprag Clutch 51,710x68,377x13 |
| 14 | 420659263 | Sparg Clutch Housing This part replaces 420659261. |
| 15 | 420434238 | Free Wheel Gear 64 T Ass'y |
| 16 | 420229475 | Needle Pin ISO 8734-10X65-B-ST |
| 17 | 420634741 | Starter Double Gear 11/49 T |
| 21 | 420866714 | Tie Rap 142x3,2 MM |
| 22 | 420881148 | Carbon Brush Set This part replaces 420881147. |
