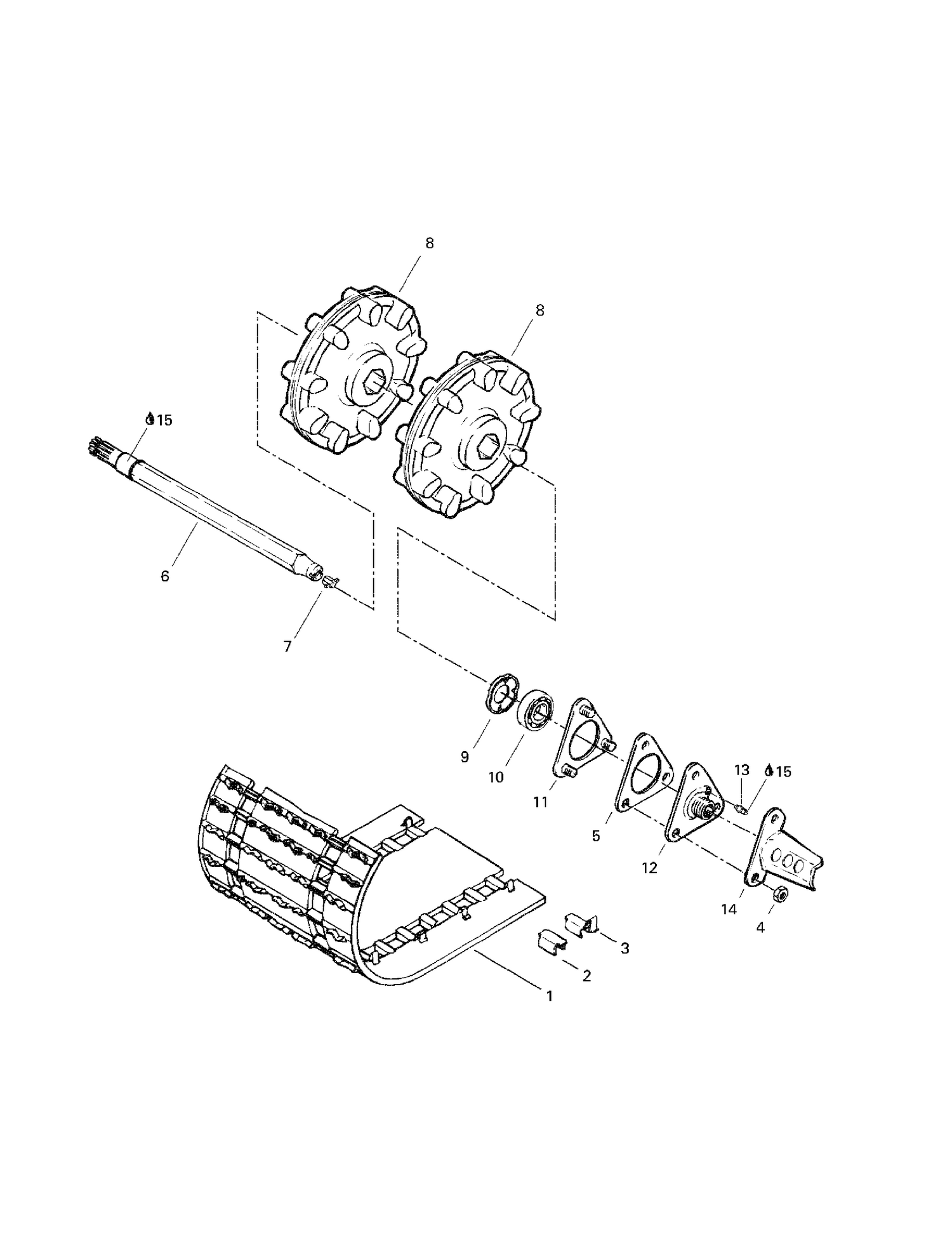

05- Drive Axle And Track
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 504152651 | Cleat This part replaces 500003300. |
| 3 | 415129528 | Track Guide This part replaces 500003400. |
| 4 | 232581414 | Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 5 | 501022200 | Spacer |
| 6 | 501025100 | Drive Axle |
| 7 | 572010100 | SPEEDO DRIVE INSERT - Call your local BRP dealership |
| 8 | 414882600 | Sprocket (9 Teeth) |
| 9 | 501017400 | BEARING PROTECTOR - Call your local BRP dealership |
| 10 | 293350115 | Ball Bearing This part replaces 405404400. |
| 11 | 501017800 | Retainer Ring |
| 13 | 408200700 | Grease Fitting |
| 14 | 517243600 | Cable Protector |
