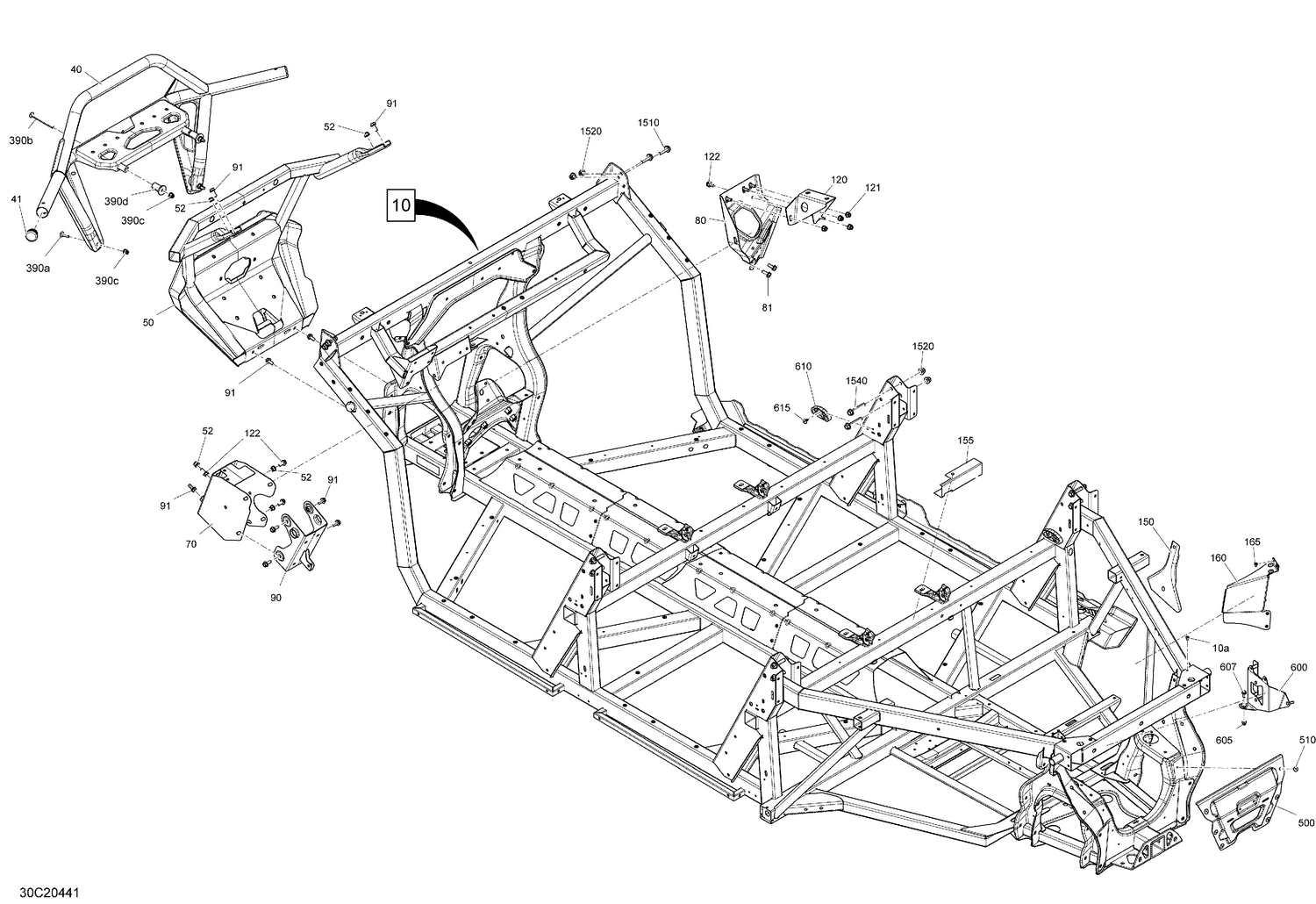

09- Frame — Parts Catalog

Ref	Part Number	Description
10	715009071	Deep Black, Chassis Kit This part replaces 715006682.
10a	390402200	Pop Rivet 3/16"
40	715005754	Deep Black, Front Bumper
41	705202455	Cap
50	705207588	Deep Black, Front Bumper
52	233281414	Hex. Flange Elastic Nut M8
70	705209388	Module Support This part replaces 705208747.
80	705208741	Power Steering Support
81	207582044	Hex. Flange Screw M8 X 20, Scotch Grip
90	705209190	Steering Column Support This part replaces 715005429.
91	207582044	Hex. Flange Screw M8 X 20, Scotch Grip
120	705208742	Support
121	233281414	Hex. Flange Elastic Nut M8
122	207682044	Hex. Flange Screw M8 X 20
150	705014849	Heat Shield
155	705015496	Heat Shield
160	707002717	Heat Shield
165	293150092	Pop Rivet 3/16”
390a	250000886	Torx Screw M8 X 30
390b	250001106	Torx Truss M/S M8 x X 100
390c	233281414	Hex. Flange Elastic Nut M8
390d	705207754	Spacer This part replaces 705206398.
500	705207753	Rear Chassis Reinforcement
510	293150104	Pop Rivet 3/16"
600	710006644	Voltage Regulator Support
605	233261414	Hex. Flange Elastic Nut M6 x 1.0
607	207561644	Hex. Flange Screw M6 X 16, Scotch Grip
610	705208203	Spacer
615	293150104	Pop Rivet 3/16"
1510	250000855	Hex. Flange Screw M10 X 35
1520	233201436	Hex. Flange Elastic Nut M10 This part replaces 233201416.
