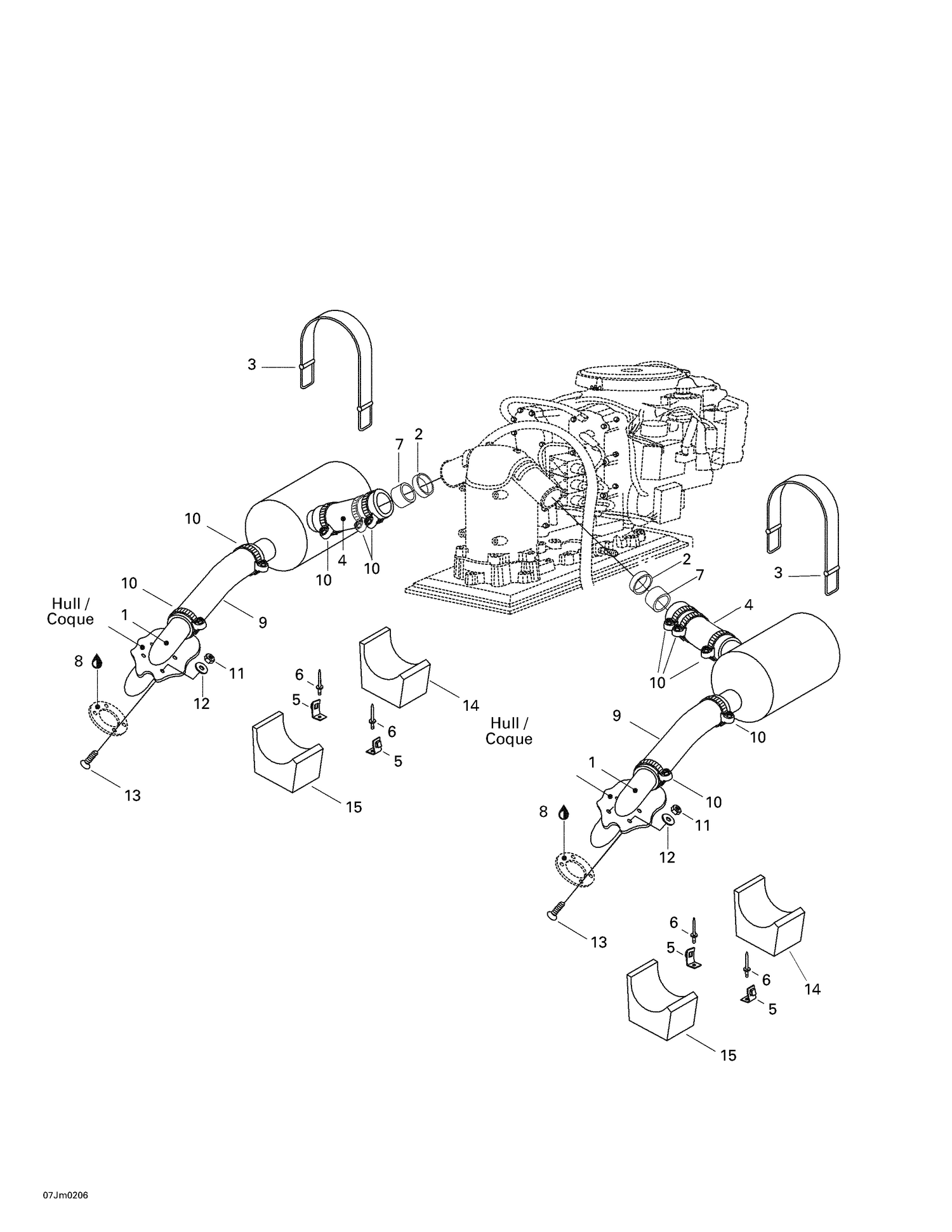

01- Exhaust System
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204340242 | Exhaust Outlet |
| 2 | 204340251 | Exhaust Spacer |
| 3 | 293850022 | STRAP - Call your local BRP dealership |
| 4 | 204340316 | EXHAUST HOSE - Call your local BRP dealership |
| 5 | 204060017 | Strap Clip 90° |
| 6 | 293150008 | Pop Rivet 3/16" This part replaces 293150011. |
| 7 | 204340317 | Exhaust Hose Liner |
| 9 | 204340241 | Exhaust Hose |
| 10 | 293650112 | Tridon Clamp |
| 11 | 232561600 | Hex. Elastic Stop Nut M6 |
| 12 | 234062600 | Flat Washer M6, Stainless |
| 13 | 208563560 | Phillips Screw M6 X 35 |
| 14 | 204340243 | Front Muffler Support |
