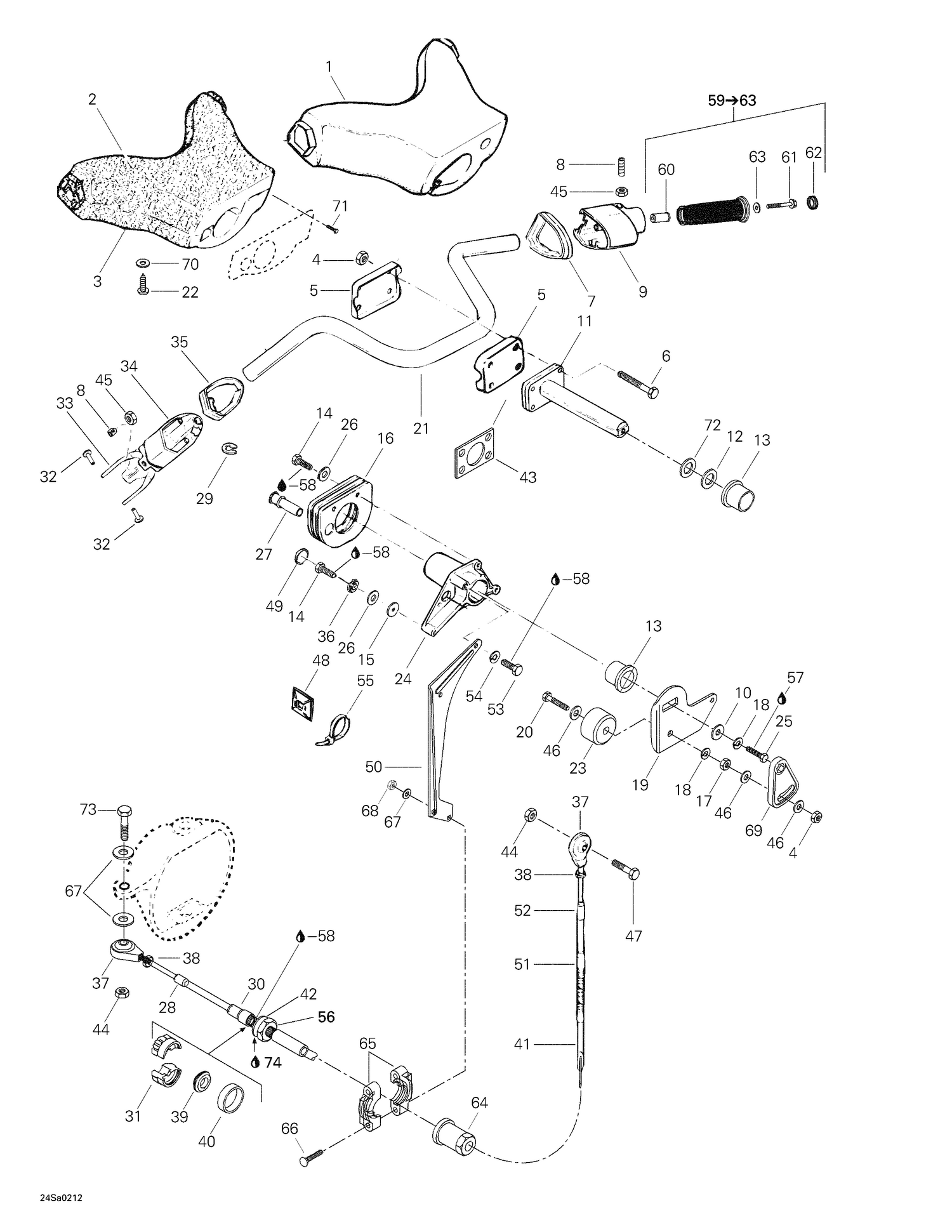

| Ref | Part Number | Description |
|---|
| 1 |
204390281 |
Steering Cover |
| 2 |
277000145 |
TOP FOAM - Call your local BRP dealership |
| 3 |
277000146 |
Bottom Foam |
| 4 |
232581600 |
Hex. Elastic Nut M8 |
| 5 |
277000142 |
STEERING CLAMP - Call your local BRP dealership |
| 6 |
207085560 |
HEX. SCREW M8 X 55 - Call your local BRP dealership |
| 7 |
277000341 |
LH Adapter |
| 8 |
206561060 |
SCREW-SET SOCKET DIN.916A2 - Call your local BRP dealership |
| 9 |
277000221 |
LH HOUSING ASS'Y - Call your local BRP dealership |
| 10 |
211200001 |
Washer |
| 11 |
277000223 |
Steering Stem |
| 12 |
293350006 |
SHIM - Call your local BRP dealership |
| 13 |
293900002 |
Bushing |
| 14 |
207182560 |
HEX. SCREW M8 X 25 - Call your local BRP dealership |
| 15 |
277000100 |
Plastic Washer |
| 16 |
277000091 |
Collar (Black) |
| 17 |
232081600 |
Hex. Nut M8 |
| 18 |
234181601 |
Lock Washer 8 mm, Stainless |
| 19 |
277000247 |
Steering Stem Arm |
| 20 |
207084560 |
Hex. Screw M8 X 45 |
| 21 |
277000840 |
Handlebar |
| 22 |
211000021 |
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership |
| 23 |
277000097 |
Stopper Bushing |
| 24 |
277000115400 |
Steering Support |
| 25 |
207182560 |
HEX. SCREW M8 X 25 - Call your local BRP dealership |
| 26 |
234082600 |
Flat Washer 8 mm, Stainless |
| 27 |
293720014 |
Grommet |
| 28 |
277000038 |
Small Boot |
| 29 |
293370002 |
Circlip 5 mm |
| 30 |
277000039 |
LARGE BOOT - Call your local BRP dealership |
| 31 |
277000168 |
Half-Ring |
| 32 |
277000381 |
PIN - Call your local BRP dealership |
| 33 |
277000472 |
Throttle Handle |
| 34 |
277000222 |
THROTTLE HANDLE HOUSING - Call your local BRP dealership |
| 35 |
277000084 |
Throttle Adapter |
| 36 |
277000096 |
Retaining Washer |
| 37 |
277000153 |
BALL JOINT - Call your local BRP dealership |
| 38 |
212100005 |
Hex. Nut |
| 39 |
211100009 |
RUBBER WASHER - Call your local BRP dealership |
| 40 |
211100010 |
Retaining Ring |
| 41 |
204390060 |
STEERING CABLE ASS'Y - Call your local BRP dealership |
| 42 |
211200006 |
FLAT WASHER, STAINLESS - Call your local BRP dealership |
| 43 |
277000436 |
Spacer |
| 44 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 45 |
232160600 |
Hex. Nut M6 |
| 46 |
234081600 |
Stainless, Flat Washer 8 mm |
| 47 |
207063060 |
Hex. Screw M6 X 30 |
| 48 |
293750003 |
TIE RAP MOUNT - Call your local BRP dealership |
| 49 |
210000019 |
Snap Cap |
| 50 |
277000248 |
Cable Support |
| 51 |
277000277 |
Large Boot |
| 52 |
277000278 |
SMALL BOOT - Call your local BRP dealership |
| 53 |
207182560 |
HEX. SCREW M8 X 25 - Call your local BRP dealership |
| 54 |
234082600 |
Flat Washer 8 mm, Stainless |
| 55 |
293750002 |
Tie Wrap 142 mm |
| 56 |
211100011 |
Hex. Jam Nut 1/2-20 |
| 57 |
293800005 |
Loctite 271, 10 ml |
| 58 |
293800060 |
Loctite 243, 10 ml |
| 60 |
Not |
Available As Spare Part - Insert Grip |
| 61 |
250000002 |
Hex. Screw M6 X 30, Scotch Grip |
| 62 |
277000203 |
Black, Cap |
| 63 |
234062600 |
Flat Washer M6, Stainless |
| 64 |
277000167 |
KNOB ADJUSTER - Call your local BRP dealership |
| 65 |
277001528 |
SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162. |
| 66 |
207766060 |
Bolt-Carriage M6 x 60 |
| 67 |
234061600 |
Stainless Flat Washer M6 |
| 68 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 69 |
277000201 |
Lock Plate |
| 70 |
234051600 |
Flat Washer M5, Stainless |
| 71 |
209631360 |
SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership |
| 72 |
211200008 |
Spring Washer |
| 73 |
207064060 |
Hex. Screw M6 X 40 |
| 211000037 |
Phillips |
Screw 10-14 X 7/8” 211000037 |
