| Ref | Part Number | Description |
|---|
| 1 |
0436058 |

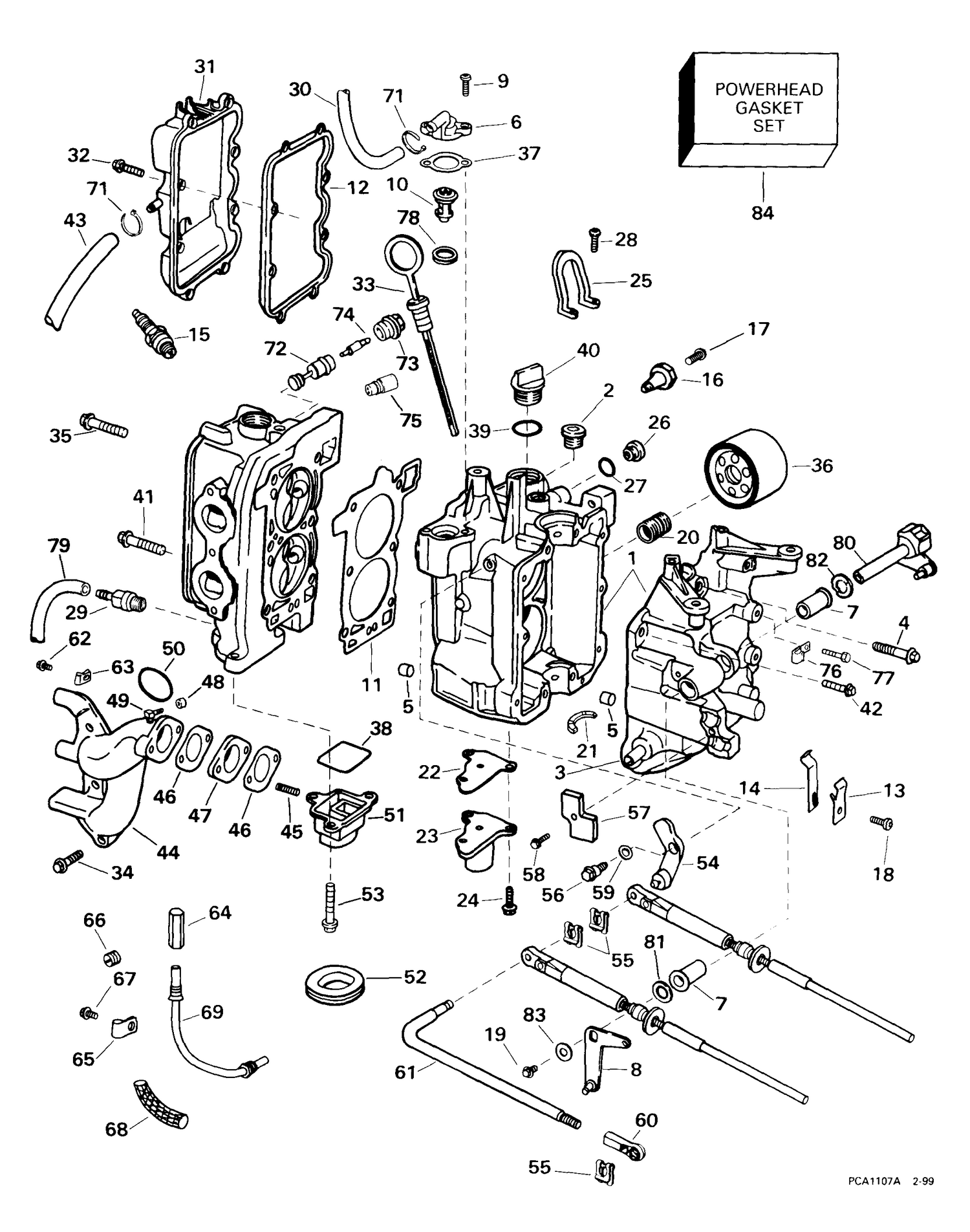

CYLINDER & CRANKCASE ASSY. |
| 6 |
0337207 |
COVER, Thermostat |
| 8 |
0434875 |
SHAFT & LEVER, Shift |
| 10 |
5005440 |
THERMOSTAT This part replaces 0434841. |
| 11 |
0337191 |
GASKET, Cylinder head |
| 12 |
0337192 |
SEAL, Cover |
| 13 |
0340170 |
SPRING, Backup, shift detent |
| 14 |
0330913 |
RESSORT, dispositif de blocage |
| 15 |
0584918 |
SPARK PLUG, Champion RA8HC |
| 16 |
0445037 |
MANOSTAT D'HUILE |
| 18 |
0343012 |
SCREW, Detent spring |
| 19 |
0343420 |
SCREW, Shift lever to shift shaft |
| 20 |
0338326 |
ADAPTER, Oil filter |
| 21 |
0338315 |
BEARING, Thrust, crankshaft |
| 22 |
0338906 |
GASKET, Oil pressure regulator to cyl. block |
| 23 |
0435690 |
HOUSING AY., Oil pressure regulator |
| 25 |
0337435 |
LIFT BRACKET |
| 30 |
0339505 |
HOSE, Thermostat to exhaust hsg. |
| 31 |
0438614 |
COVER ASSY., Cylinder head |
| 33 |
0434835 |
DIPSTICK, Oil |
| 35 |
0343267 |
SCREW, Cylinder head, port |
| 36 |
0434839 |
OIL FILTER |
| 37 |
0337194 |
GASKET, Thermostat cover |
| 38 |
0339274 |
SEAL, Adapter to cylinder head |
| 39 |
0911718 |
O-RING, Nipple |
| 40 |
0337208 |
PLUG, Oil fill |
| 41 |
0343268 |
SCREW, Cylinder head, stbd. |
| 43 |
HOSE, |
Cyl. head cover to air horn, 15 1/2 in. (394mm) |
| 44 |
0437991 |
INTAKE MANIFOLD |
| 46 |
0318932 |
JOINT |
| 46 |
0342982 |
GASKET, Carb. to manifold |
| 51 |
0339313 |
ADAPTER, Exhaust hsg. to cyl. head |
| 52 |
0339397 |
GROMMET, Adapter |
| 54 |
0337458 |
THROTTLE CAM |
| 55 |
0338630 |
BRIDE, à ressort, tige de commande de sens de marche vers levier coudé |
| 56 |
0329332 |
SCREW, Anchor |
| 62 |
0345922 |
SCREW, Clamp to manifold |
| 63 |
0330157 |
CLAMP |
| 64 |
0341196 |
CAP, Exhaust probe |
| 65 |
3852427 |
CLAMP, Fuel line to bracket This part replaces 0907852. |
| 66 |
0341193 |
PLUG, Cylinder head |
| 68 |
0341382 |
SLEEVE, Exhaust probe |
| 69 |
0437084 |
TUBE ASSY., Exhaust probe |
| 71 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 72 |
0585184 |
INTERRUPTEUR THERMOSTATIQUE, tribord |
| 76 |
0330151 |
CLAMP, Harness to oil tank boss |
| 78 |
0310058 |
GASKET, Thermostat |
| 79 |
0341722 |
HOSE, Overboard indicator |
| 81 |
0127386 |
RONDELLE This part replaces 0303913. |
