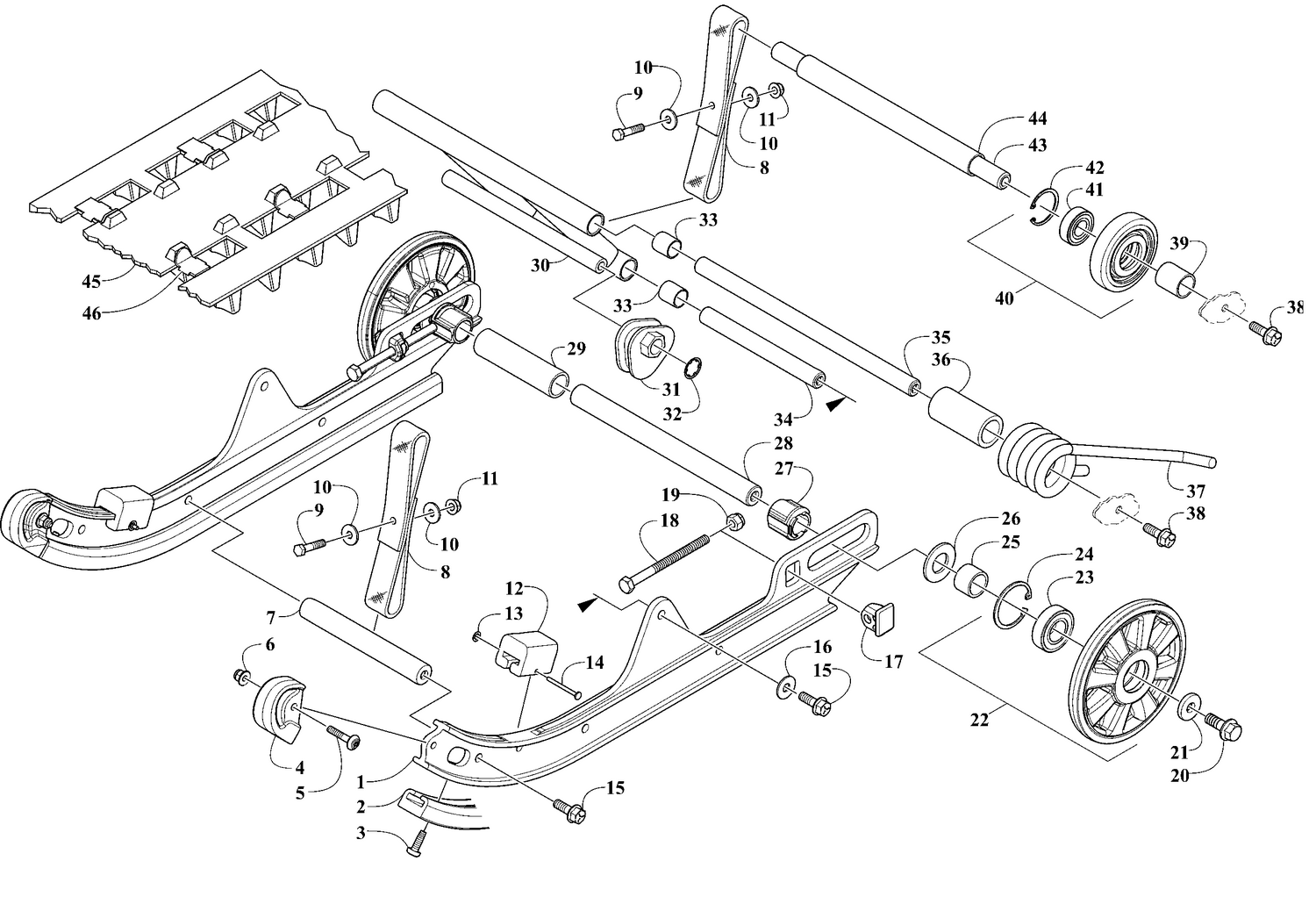

Rear Suspension Arm
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 0 | 3704-993 | Complete Skid Frame Ass'y |
| 1 | 4604-548 | Rail |
| 2 | 4604-552 | Black, Wearstrip |
| 3 | 2623-315 | Machine Screw |
| 4 | 4604-093 | Slide Rail End Cap |
| 5 | 8476-630 | Machine Screw M6X1.0 |
| 6 | 8427-602 | Hex Flange Elastic Nut M6X1.0 |
| 7 | 4604-276 | Axle Cross Brace |
| 8 | 1604-708 | Strap Limiter |
| 9 | 8002-043 | Cap Screw 1/4-20 X1.125 |
| 10 | 8050-222 | Flat Washer 1/4 X .734 X .063 |
| 11 | 8047-366 | Elastic Stop Nut 1/4-20 |
| 12 | 0104-631 | Shock Pad |
| 13 | 0423-090 | Nut Press On (Pushnut) - 1/8 Stud |
| 14 | 0123-767 | Rivet 1/8 X 1.50 |
| 15 | 1623-566 | Cap Screw 5/16-18 |
| 16 | 8050-252 | Flat Washer 5/16 X .875 X .063 |
| 17 | 3604-647 | Track Adjuster |
| 18 | 1623-682 | Cap Screw M8 X 1.25 X 100 |
| 19 | 8422-802 | Elastic Locking NutM6X1.0 |
| 20 | 1623-427 | Cap Screw 3/8-16X1 |
| 21 | 0623-664 | Flat Washer 1.00X.390X.164 |
| 22 | 4604-355 | Idler Wheel |
| 23 | 3604-033 | Bearing |
| 24 | 0623-946 | Retaining Ring |
| 25 | 4604-484 | Rear Wheel Spacer 17.87 |
| 26 | 0623-921 | Flat Washer |
| 27 | 3604-934 | Rear Wheel Spacer |
| 28 | 3604-542 | Rear Axle |
| 29 | 4604-483 | Rear Wheel Spacer |
| 30 | 3704-655 | Front Arm |
| 31 | 1604-204 | Black, RH Block Spring Adjuster |
| 31 | 1604-205 | Black, LH Block Spring Adjuster |
| 32 | 0623-138 | Retaining Ring |
| 33 | 0603-083 | Bearing |
| 34 | 4604-482 | Axle Lower Arm |
| 35 | 3604-605 | Axle |
| 36 | 3602-236 | Spacer |
| 37 | 3704-172 | RH Suspension Spring |
| 37 | 3704-173 | LH Suspension Spring |
| 38 | 8020-131 | Cap Screw 5/16-18 |
| 39 | 1604-565 | Spacer |
| 40 | 4604-413 | Idler Wheel |
| 41 | 4604-414 | Bearing |
| 42 | 2623-269 | Retaining Ring |
| 43 | 3604-605 | Axle |
| 44 | 1604-564 | Spacer |
