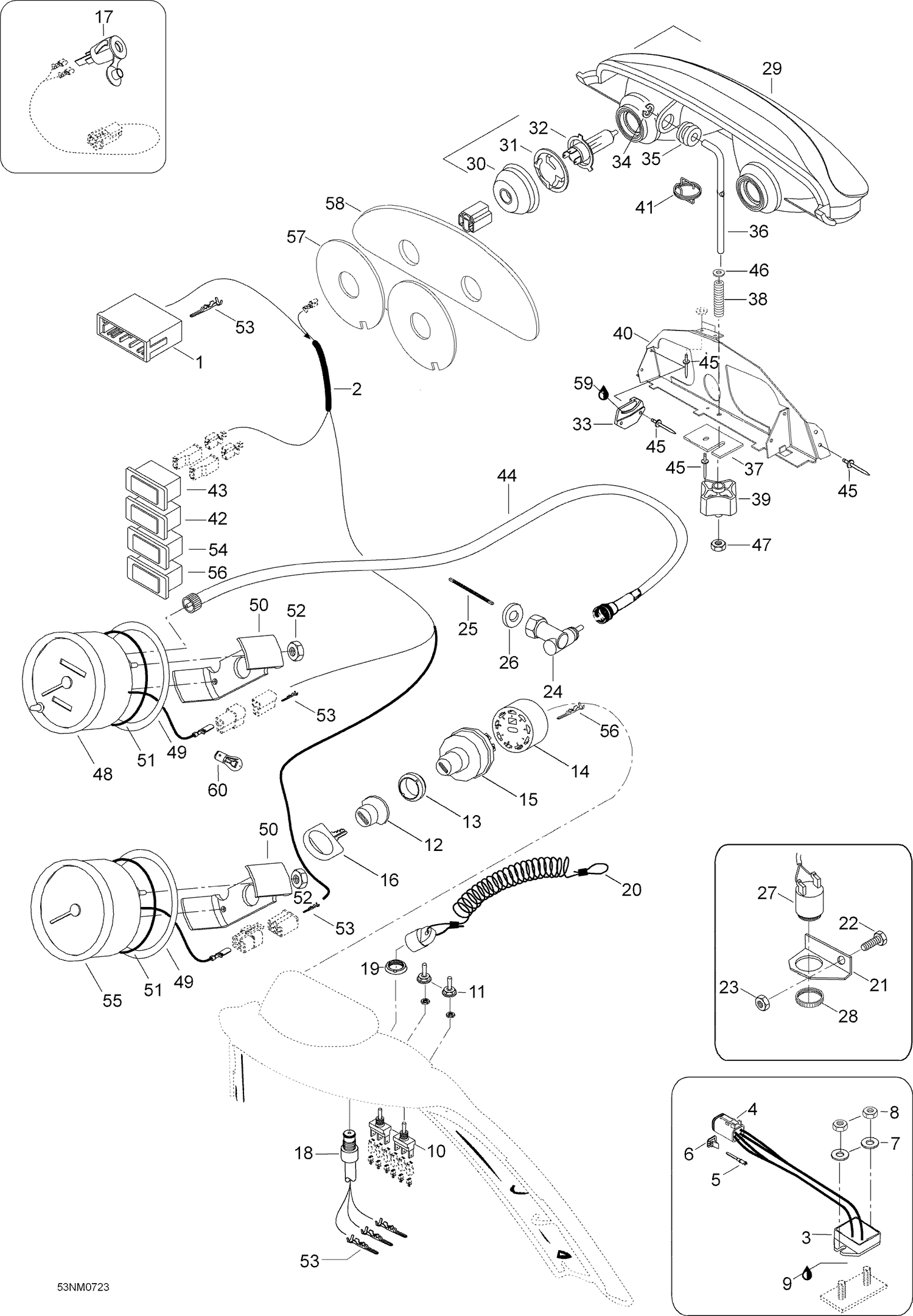

| Ref | Part Number | Description |
|---|
| 2 |
5247805 |
Wiring harness, hood |
| 4 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 5 |
515175568 |
Female terminal |
| 6 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 7 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 8 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 9 |
413707500 |
Grease tube LMZ, 400 g |
| 10 |
410107300 |
Katkaisin, käsien lämmitin |
| 11 |
515175281 |
Rubber cover for switch |
| 12 |
570013700 |
Suukappale, virtalukko |
| 13 |
410112100 |
FACE NUT - Call your local BRP dealership |
| 14 |
572150700 |
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership |
| 15 |
42019 |
Ignition switch |
| 16 |
415129350 |
BLANK KEY - Call your local BRP dealership This part replaces 414991700. |
| 17 |
42026 |
Pistoke, virran ulosotto 12 V |
| 18 |
515177249 |
DESS Switch This part replaces 515175797. |
| 19 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 20 |
515178284 |
Dess. This part replaces 515176446. |
| 21 |
549459 |
ALARM RETAINER - Call your local BRP dealership |
| 22 |
40029 |
Hex. socket screw M6 x 16 |
| 23 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 24 |
35021 |
Vinkelväxel 1:1.4 |
| 25 |
45009 |
Välivaijeri L=85 mm |
| 26 |
5444186 |
Seal - Call your local BRP dealership |
| 27 |
414792102 |
Backning summer |
| 28 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 30 |
410607100 |
PROTECTOR CAP - Call your local BRP dealership |
| 31 |
410608300 |
BULB HOLDER - Call your local BRP dealership |
| 32 |
515176274 |
Halogen Bulb, 60/55 W, 12 V This part replaces 410504401. |
| 33 |
517289300 |
Strållkastar stöd, höger |
| 33 |
517289400 |
Strållkastar stöd, vänster |
| 34 |
732610072 |
Push Nut |
| 35 |
415100800 |
Grommet - Call your local BRP dealership |
| 36 |
5448100 |
Justering stång |
| 37 |
5448320 |
Locking plate |
| 38 |
415100600 |
SPRING - Call your local BRP dealership |
| 39 |
515175548 |
Handle - Call your local BRP dealership |
| 40 |
5248092 |
HEADLIGHT PLATE - Call your local BRP dealership |
| 41 |
5445737 |
SUPPORT SPRING - Call your local BRP dealership |
| 42 |
410109600 |
Pilot lamp (Headlamp) |
| 43 |
410109500 |
Pilot lamp (Oil level) |
| 44 |
5344162 |
Nopeusmittarin vaijeri |
| 45 |
36005 |
RIVET 4.8X12 AL BLACK,(1 PAC <=> 50 PC) |
| 46 |
20003 |
Fjäder bricka A6,4 |
| 47 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 48 |
605152889 |
Hastighetsmätare, vit |
| 49 |
517258500 |
Tukirengas |
| 50 |
414806500 |
Housing support |
| 51 |
414807100 |
O-rengas |
| 52 |
233251434 |
Flanged Elastic Nut M5 This part replaces 33062. |
| 53 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 54 |
410109700 |
Merkkivalo, lämpötila |
| 55 |
605152890 |
TACHOMETER - Call your local BRP dealership |
| 56 |
605450484 |
PILOT LAMP D.E.S.S. - Call your local BRP dealership |
| 57 |
5247817 |
FOAM - Call your local BRP dealership |
| 58 |
5447818 |
PLASTIC PLATE - Call your local BRP dealership |
| 59 |
413707500 |
Grease tube LMZ, 400 g |
