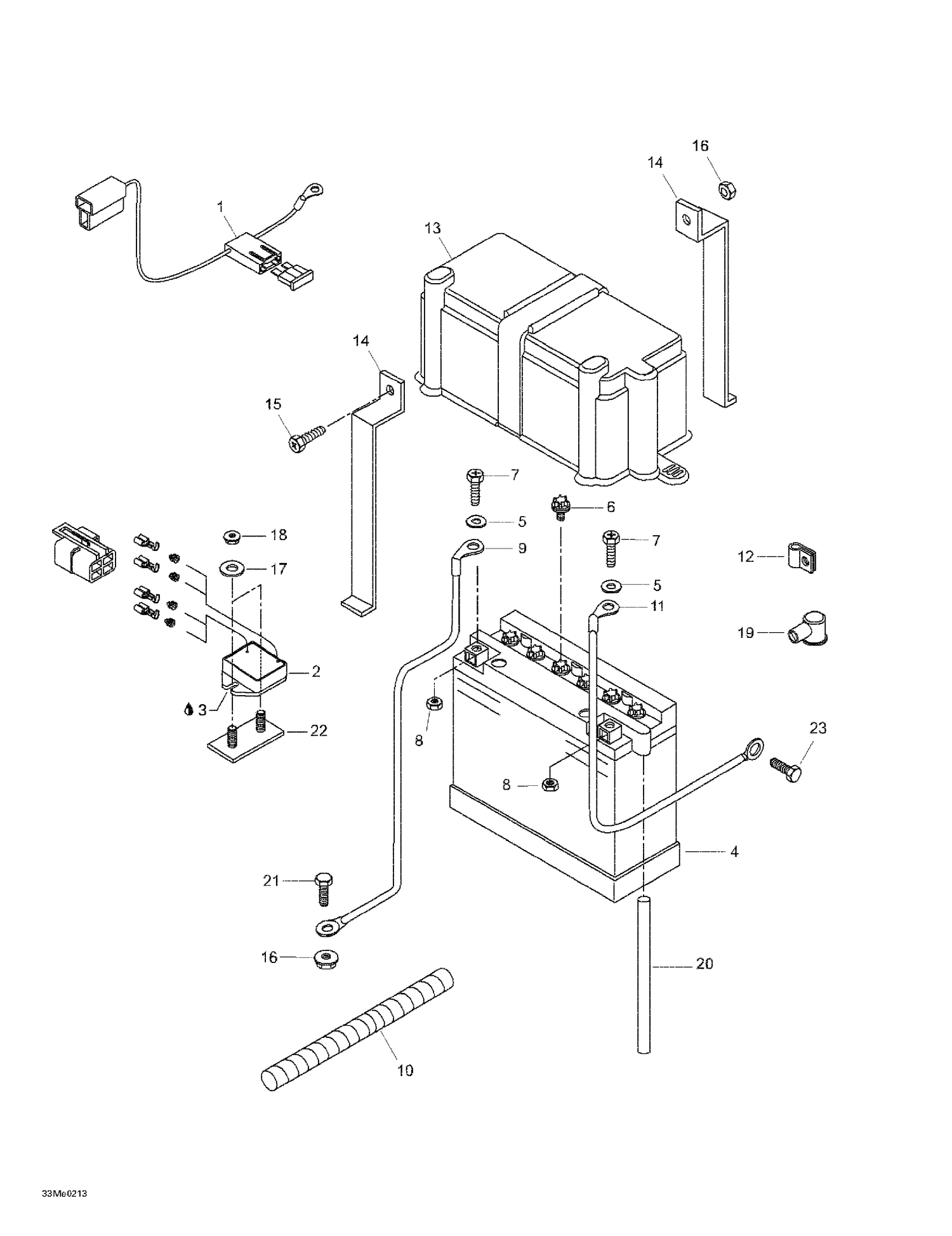

10- Electrical System 2
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | M5444382 | Fuse Holder |
| 3 | 413707500 | Grease Tube Lmz, 400 G |
| 5 | 391302100 | FLAT WASHER - Call your local BRP dealership |
| 6 | 410300800 | Battery Cap |
| 7 | 207161644 | Hex. Screw M6 X 16 |
| 8 | 232061414 | Hex. Nut M6 |
| 13 | 570022000 | Battery Cover |
| 14 | M5442811 | Steel Strip |
| 15 | 207162544 | Hex. Screw M6 X 25 |
| 16 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 17 | 234062410 | Flat Washer 6 mm This part replaces M20009. |
| 18 | 232561414 | Elastic Stop Nut M6 |
| 19 | 570151000 | Protection Cap |
| 20 | M39055 | Tube |
