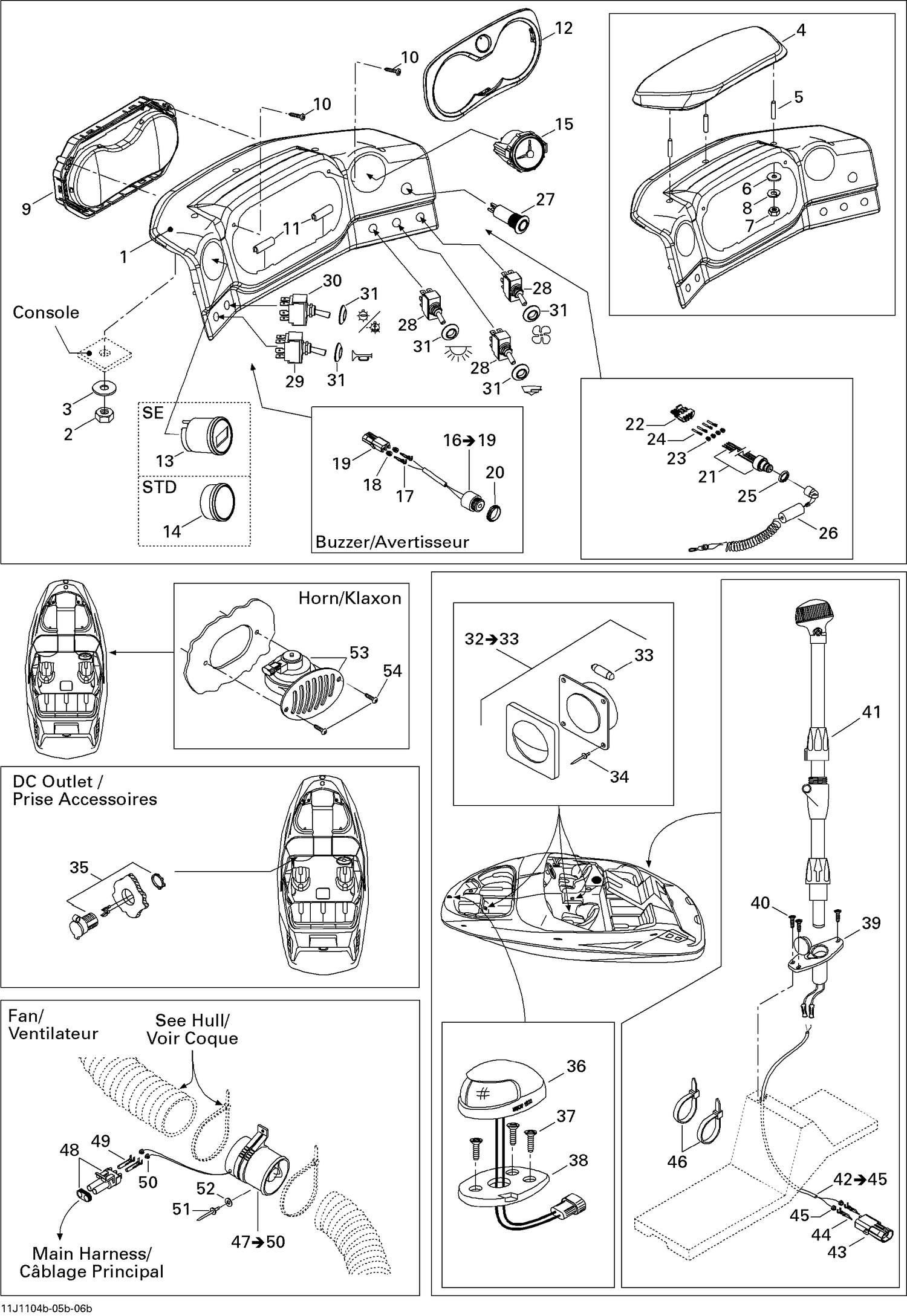

| Ref | Part Number | Description |
|---|
| 1 |
278002524 |
DASHBOARD FASCIA - Call your local BRP dealership |
| 2 |
Not |
Available As Spare Part - Hex. Nut 8-32 Stainless |
| 3 |
204100089 |
FLAT WASHER 9/32? - Call your local BRP dealership |
| 4 |
278002561 |
DASHBOARD CAP - Call your local BRP dealership |
| 5 |
204100077 |
THREADED STUD 1/4-20 X 1-1/4 - Call your local BRP dealership |
| 6 |
204100089 |
FLAT WASHER 9/32? - Call your local BRP dealership |
| 7 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 8 |
234161601 |
Lock Washer Helical M6 |
| 9 |
204471378 |
Cluster Gauge |
| 10 |
241141660 |
Hex. Flange Screw K40 X 16 |
| 11 |
293830113 |
TRIM - Call your local BRP dealership |
| 12 |
278002144 |
Gauge Bezel, Chrome |
| 15 |
278002582 |
GAUGE - CLOCK - Call your local BRP dealership |
| 17 |
278000222 |
Male Terminal |
| 18 |
278000218 |
Wire Seal |
| 19 |
278000217 |
Female Housing, 2 Circuits |
| 20 |
278000707 |
Buzzer Nut |
| 21 |
278002351 |
Safety Switch |
| 22 |
278000395 |
Male Housing, 4 Circuits |
| 23 |
278000218 |
Wire Seal |
| 24 |
278000223 |
Female Terminal |
| 25 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 26 |
204471206 |
Safety Lanyard |
| 27 |
278002504 |
START SWITCH - Call your local BRP dealership |
| 28 |
278002413 |
SWITCH - Call your local BRP dealership |
| 29 |
278002414 |
SWITCH - Call your local BRP dealership |
| 30 |
278002505 |
SWITCH - Call your local BRP dealership |
| 31 |
278002416 |
NUT SWITCH - Call your local BRP dealership |
| 33 |
204470081 |
BULB - Call your local BRP dealership |
| 34 |
293150032 |
RIVET_POP 1/8 X ,487 - Call your local BRP dealership |
| 35 |
710001248 |
DC Outlet |
| 36 |
204470372 |
Front Lamp |
| 37 |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 38 |
204470072 |
FRONT LAMP SUPPORT - Call your local BRP dealership |
| 39 |
204470990 |
REAR LIGHT BASE - Call your local BRP dealership |
| 40 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 41 |
204470979 |
REAR LIGHT POLE - Call your local BRP dealership |
| 43 |
278000217 |
Female Housing, 2 Circuits |
| 44 |
278000222 |
Male Terminal |
| 45 |
278000218 |
Wire Seal |
| 46 |
293750002 |
Tie Wrap 142 mm |
| 48 |
278000220 |
Male Connector, 2 Circuits |
| 49 |
278000223 |
Female Terminal |
| 50 |
278000218 |
Wire Seal |
| 51 |
293150088 |
Pop Rivet 3/16" |
| 52 |
234052600 |
Flat Washer 5 mm, Stainless |
| 53 |
204470801 |
HORN - Call your local BRP dealership |
