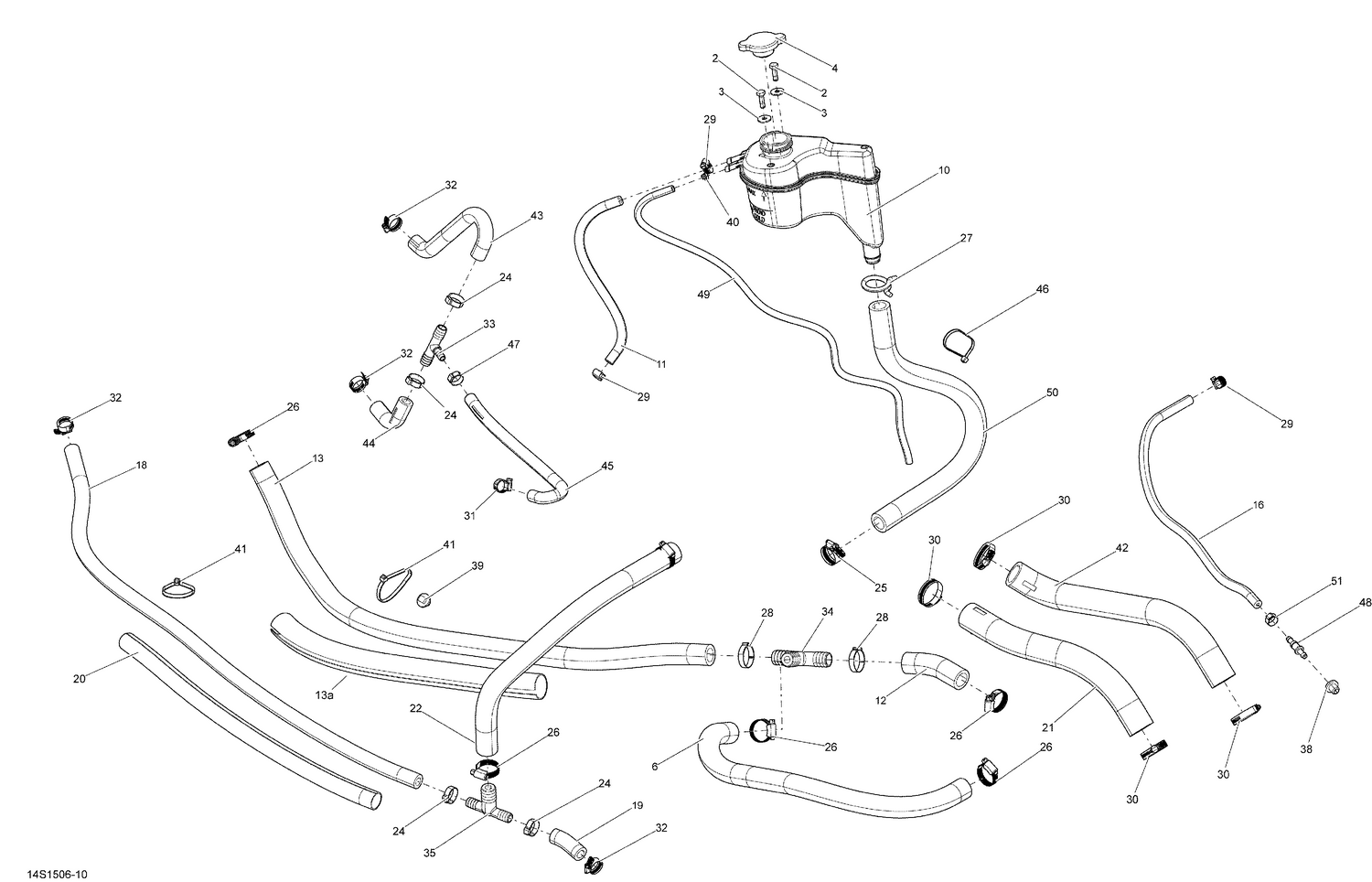

01- Cooling System _14S1510

Ref	Part Number	Description
2	207362060	Hex. Screw M6 X 20, Scotch Grip
3	234062600	Flat Washer M6, Stainless
4	276000100	Pressure Cap
6	219704361	Hose 19.0Mm. 2000Mm Long
10	276000265	Coolant Tank
11	219704357	Was 275500549 Hose 1/4"
12	219704361	Hose 19.0Mm. 2000Mm Long
13	219704361	Hose 19.0Mm. 2000Mm Long
13a	219704402	Tubing 25 MM 1000MM Long
16	219704357	Was 275500549 Hose 1/4"
18	219704394	Was 276000001 Hose 12.5 mm
19	219704394	Was 276000001 Hose 12.5 mm
20	219704423	Was 515175319 Tubing 22 mm
21	276000241	Radiator Hose
22	219704361	Hose 19.0Mm. 2000Mm Long
24	293650012	Oetiker Clamp
25	293650019	Tridon Gear Clamp
26	293650051	Tridon Gear Clamp
27	293650115	Spring Clamp
28	293650051	Tridon Gear Clamp
29	293650170	Tridon Gear Clamp
30	293650185	Tridon Gear Clamp
31	293650171	Tridon Gear Clamp
32	293650172	Tridon Gear Clamp
33	293710116	T-Fitting
34	293710131	T-Fitting
35	293710132	T-Fitting
38	293720029	Grommet
39	293730040	Mount Dart
40	293750001	Tie Wrap 94 mm
41	293750008	Tie Wrap 368 mm
42	276000491	Radiator Hose This part replaces 276000240.
43	276000484	Hose, Bypass Upper This part replaces 276000244.
44	276000455	Hose, Bypass Lower This part replaces 276000245.
45	276000246	Formed Hose
46	414115200	Tie-Rap 180 mm
47	293650030	Oetiker Clamp
48	414518500	Male Connector
49	219704410	Polyurethane Hose 10000Mm Long
50	219704361	Hose 19.0Mm. 2000Mm Long
