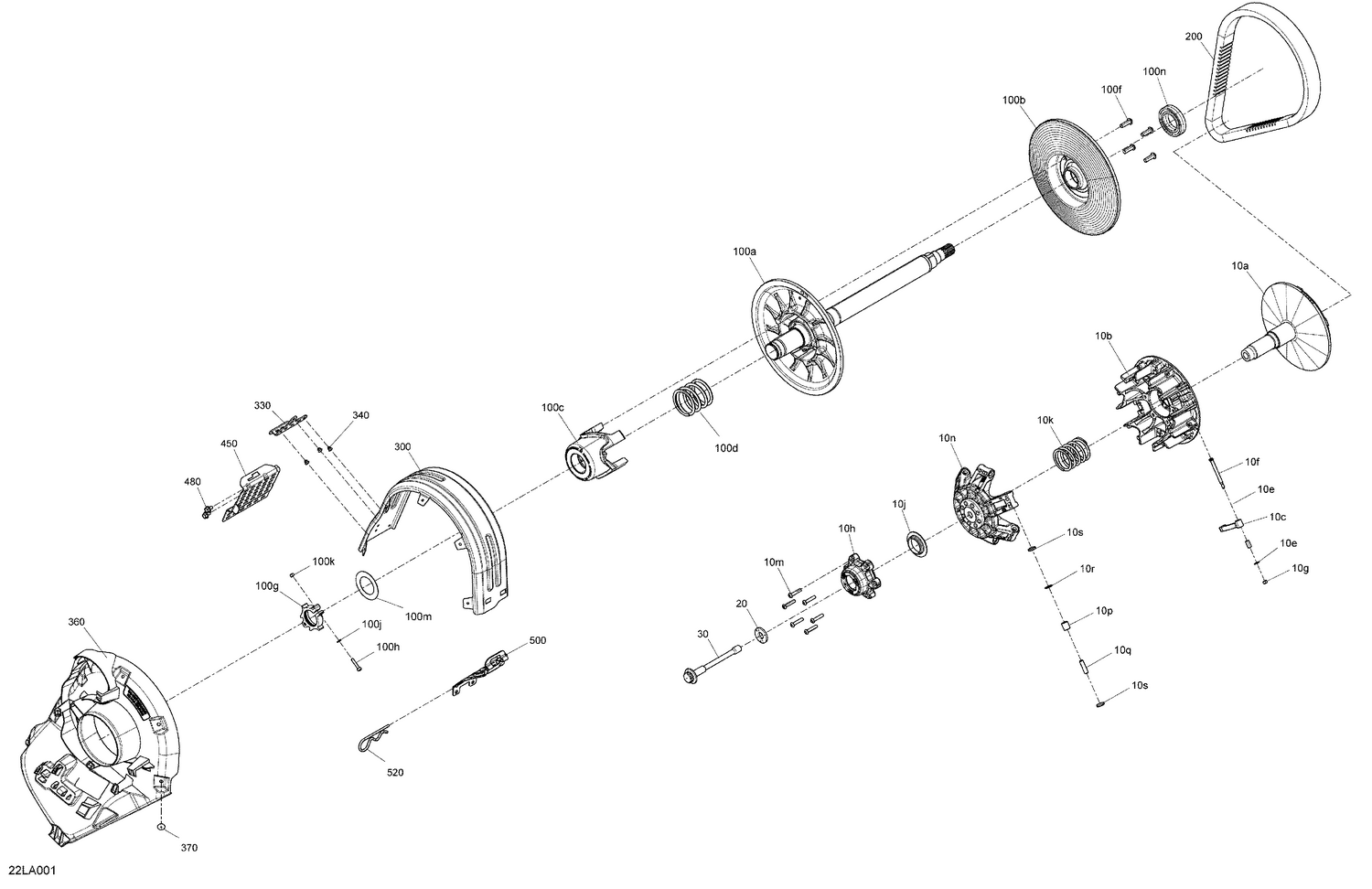

04- Drive - Pulley
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 417224091 | Fixed Flange Ass'y |
| 10b | 417224101 | Sliding Flange Ass'y |
| 10c | 417223508 | Ramp 716 Ass'y |
| 10e | 417223255 | Thrust Washer |
| 10f | 417223694 | Ramp Axle |
| 10g | 417224336 | Nut-Stop Elastic DIN.985 |
| 10h | 417223907 | Spring Cover Ass'y |
| 10j | 417223752 | Seat Spring |
| 10k | 417223747 | Clutch Spring |
| 10m | 250000580 | Torx Screw M6 X 30 |
| 10n | 417223865 | Governor Cup Ass'y |
| 10p | 417223767 | Roller |
| 10q | 417223257 | Roller Axle |
| 10r | 293300185 | O-Ring |
| 10s | 417223919 | Slider Shoe |
| 20 | 250200144 | Conical Spring Washer M14 |
| 30 | 417300432 | Pulley Drive Bolt |
| 100a | 417127754 | Sheave Driven Pulley Fixed Ass'y |
| 100b | 417127366 | Slider Flange Ass'y |
| 100c | 417127413 | Cam Ass'y |
| 100d | 417127467 | Release Spring |
| 100f | 250000757 | Screw-Torx Button Head M8 X 25 S.Gr |
| 100g | 415129604 | Pulley Adjuster Ass'y |
| 100h | 250000981 | Socket Screw M5 X 25 |
| 100j | 234051410 | Flat Washer M5 |
| 100k | 232551414 | Elastic Stop Nut M5 |
| 100m | 417127155 | Washer |
| 100n | 504152574 | Ball Bearing |
| 200 | 417300585 | Drive Belt |
| 300 | 417300620 | Belt Guard This part replaces 417300479. |
| 330 | 417300525 | Front Retaining Hook |
| 340 | 390909200 | Avex Rivet |
| 360 | 417300557 | CVT Cooling Duct |
| 370 | 293150103 | Pop Rivet 3/16 |
| 450 | 417300583 | Front Guard Support |
| 480 | 207561044 | Flange Screw M6 X 10, Scotch Grip |
| 500 | 417300581 | Rear Guard Support |
