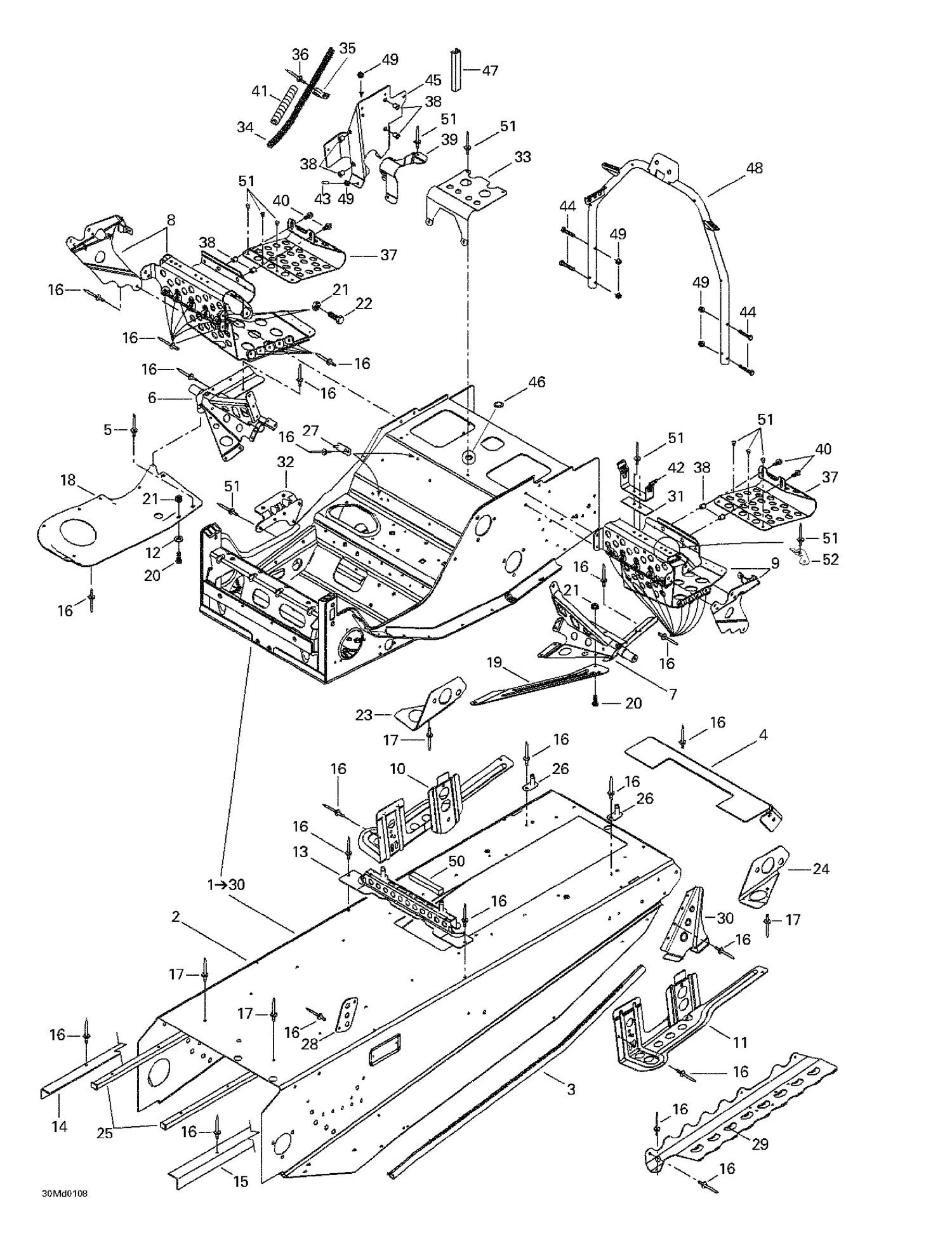

09- Frame And Accessories
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 518322500 | Tunnel |
| 3 | 518322519 | Footrest Reinforcement R.H |
| 4 | 518321620 | Rear Cap |
| 5 | 390402300 | Pop Rivet 3/16" |
| 6 | 518322037 | RH Footrest Support |
| 7 | 518322040 | LH Footrest Support |
| 8 | 518322058 | RH Footrest Ass'y |
| 9 | 518322062 | LH Footrest Ass'y |
| 10 | 518322504 | RH Slide Bracket (SE, Europe) |
| 11 | 518322508 | LH Slide Bracket (SE, Europe) |
| 12 | 250200081 | FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 13 | 518322512 | Fuel Tank Bracket |
| 14 | 518322517 | RH Frame Reinforcement |
| 15 | 518322518 | LH Frame Reinforcement |
| 16 | 390402200 | Pop Rivet 3/16" |
| 17 | 390402400 | Pop Rivet 3/16" |
| 18 | 518319760 | RH Bottom Pan Plate |
| 19 | 518322119 | LH REINFORCEMENT PLATE - Call your local BRP dealership |
| 20 | 207152044 | Hex. Screw M5 X 20 |
| 21 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 22 | 250000676 | Forming Screw M5 x 16 This part replaces 732600030. |
| 23 | 518321472 | RH Rear Reinforcement |
| 24 | 518321473 | LH Rear Reinforcement |
| 25 | 518322560 | Frame Protector |
| 26 | 518319730 | Guide |
| 27 | 518322391 | Double Bracket |
| 28 | 518201321 | REINFORCEMENT PLATE - Call your local BRP dealership |
| 29 | 518322515 | RH Tunnel Liner |
| 30 | 518322507 | Rear Footrest R.H |
| 31 | 518207500 | REINFORCEMENT - Call your local BRP dealership |
| 32 | 518206300 | Muffler Support |
| 33 | 518310400 | AIR INTAKE SUPPORT - Call your local BRP dealership |
| 34 | 518321569 | ROPE GUIDE - Call your local BRP dealership |
| 35 | 518321570 | Open Clamp |
| 36 | 390406500 | Pop Rivet 3/16" |
| 37 | 518321602 | Toe Hold |
| 38 | 293450275 | Insert This part replaces 415107300. |
| 39 | 518319762 | Hose Support |
| 40 | 207661644 | Hex. Flange Screw M6 X 16 |
| 41 | 219704400 | Was 409901800 Tubing (13 mm) |
| 42 | 518202100 | Belt Guard Bracket |
| 43 | 293000025 | Short Cap |
| 44 | 207663544 | Hex. Flange Screw M6 X 35 |
| 45 | 518322054 | Electronic Module Support |
| 46 | 414859400 | CAP - Call your local BRP dealership |
| 47 | 219704353 | Was 271000110 Protection Trim |
| 48 | 518321957 | Handle Support |
| 49 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 50 | 219704364 | Neoprene Seal (1PAC=3M) |
| 51 | 390402200 | Pop Rivet 3/16" |
| 518322511 | Rear | Footrest L.H 518322511 |
| 518322516 | Doublure | De Tunnel GA 518322516 |
| 518322516 | LH | Tunnel Liner 518322516 |
| 518322520 | Footrest | Reinforcement L.H 518322520 |
