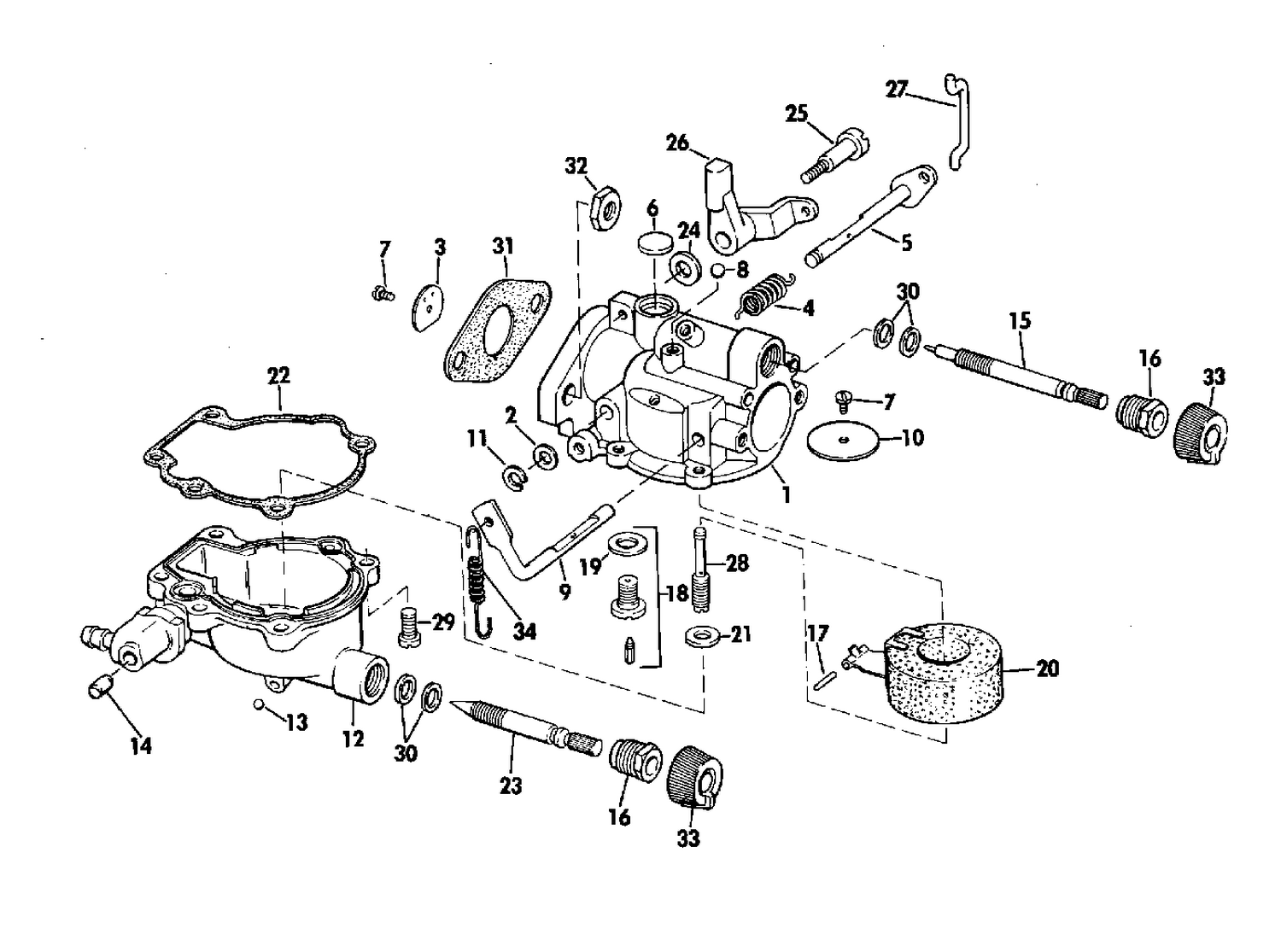

CARBURETOR GROUP
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0383000 | BODY ASSY |
| 11 | 0203949 | E RING LINK This part replaces 0202755. |
| 12 | 0382999 | FLOAT CAHMBER ASSY. |
| 15 | 0313262 | VALVE, Needle low speed |
| 17 | 0300096 | HINGE PIN |
| 18 | 0332889 | FLOAT VALVE, Seat and gasket assembly |
| 19 | 0394995 | CYLINDER & CRANKCASE ASSEMBLY |
| 21 | 0362984 | GASKET |
| 22 | 0362994 | GASKET |
| 23 | 0312824 | NEEDLE VALVE HIGH SPEED |
| 26 | 0314507 | CAM FOLLOWER |
| 27 | 0312530 | LINK,Cam follower |
| 28 | 0314264 | NOZZLE, High speed |
| 29 | 0307045 | NOZZLE, High speed |
| 31 | 0303003 | GASKET |
| 32 | 0306397 | NUT |
| 33 | 0319168 | KNOB, Hi & lo speed This part replaces 0314263. |
| 0382281 | 0382281 | CARBURETOR ASSEMBLY, Complete |
