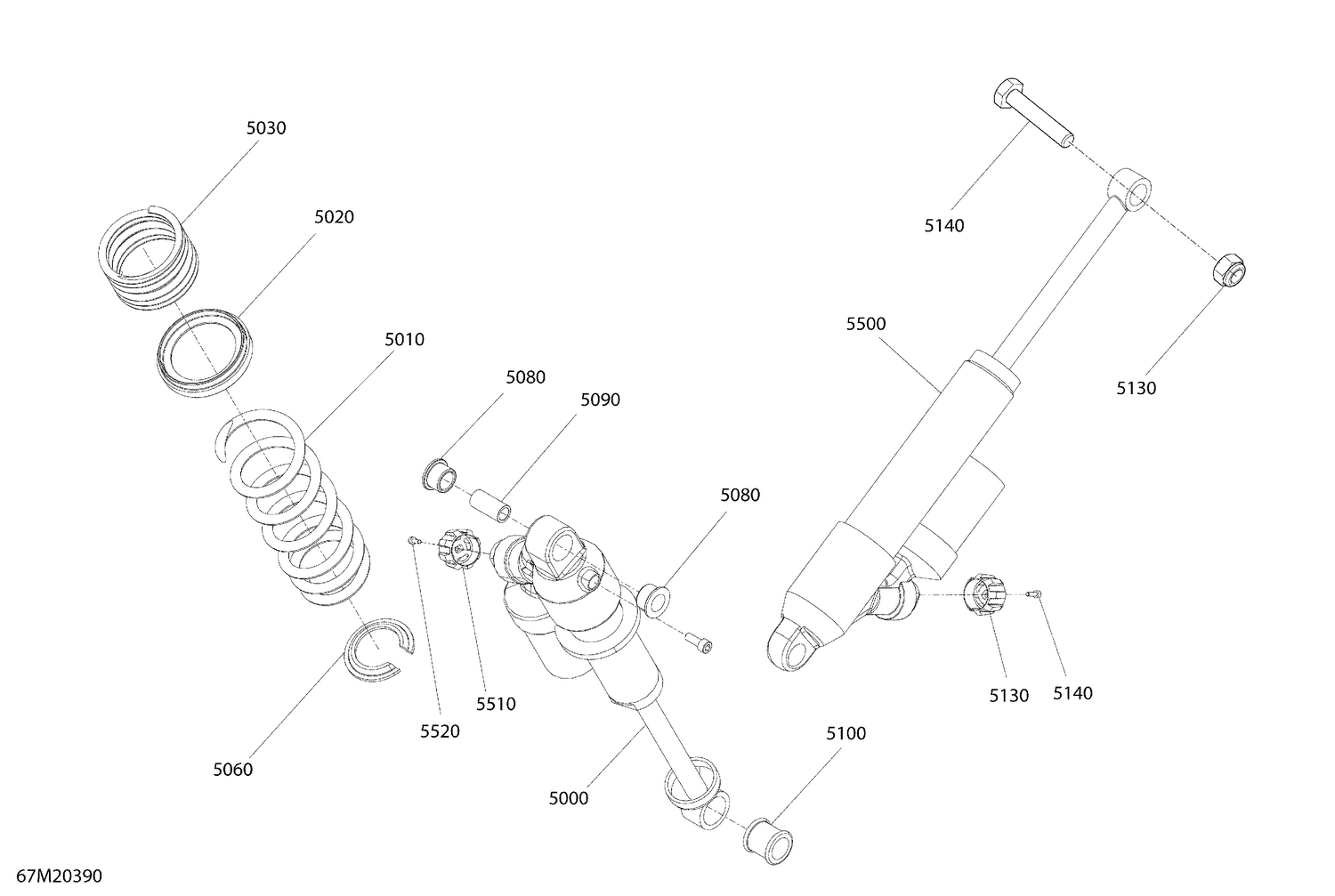

08- Suspension, Rear - Shocks - X
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 5000 | 503194749 | Central Shock |
| 5020 | 503191281 | Spring Spacer |
| 5030 | 503193837 | Black, Spring (51mm) Short |
| 5060 | 503194270 | Spring Stopper |
| 5080 | 503189117 | Urethane Bushing |
| 5090 | 503189282 | Bushing |
| 5100 | 503189271 | Bushing |
| 5130 | 233601466 | Elastic Locking Nut M10 |
| 5140 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 5510 | 503193033 | Shock Adjuster Knob |
